Features

Transducer: 918SG 18” ferrite magnet woofer

FEA flared port design reduces air noise and distortion

Lightweight, efficient Class D amplification

Power: 2,000 watts peak/1,000 watts RMS

18mm birch cabinet features optimized bracing for smooth low-frequency response

Frequency response: 30 Hz–110 Hz @2pi (-10 dB); 35 Hz–92 kHz @2pi (-3 dB)

Max SPL: 134 dB

Color LCD screen provides access to comprehensive DSP suite

DriveRack Technology includes 180ms of speaker delay in 100-microsecond intervals for precise time-aligned systems

JBL Pro Connect app allows full system control of up to 10 speakers and line integration with JBL EON ONE MK2, PRX ONE and EON700 systems

Optimized presets for pairing with full-range speakers

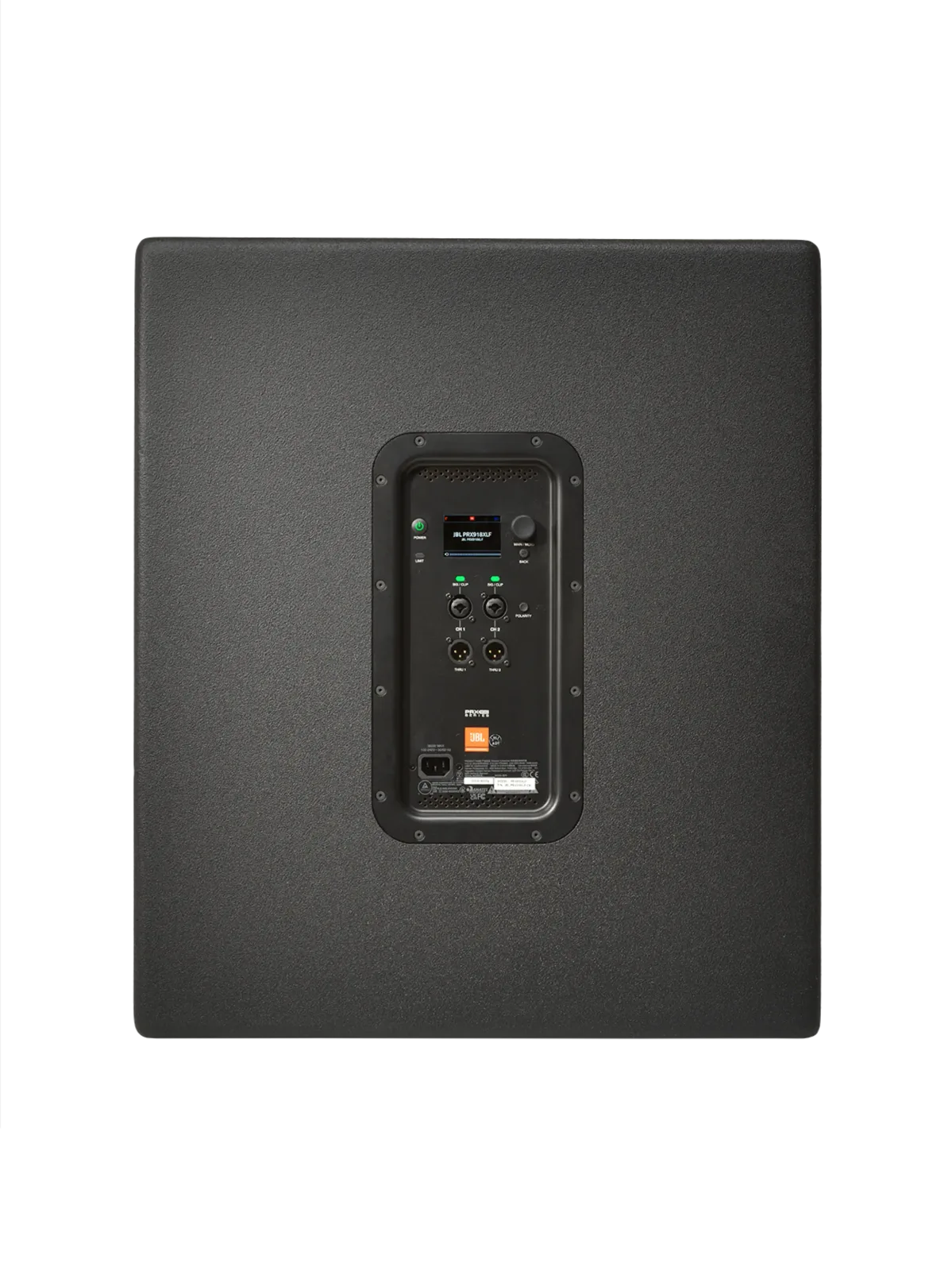

I/Os: 2 XLR balanced Combo jacks

Attribute

Value

Model

PRX918XLF

Frequency Range (-10dB)

30 Hz – 110 Hz (2π)

Frequency Range (-3 dB)

35 Hz – 92 Hz (2π)

Coverage Pattern

Omni

Transducer Impedence

Rated: 4 Ω

Max SPL

134 dB @1m/2π

Power Rating

2000W peak / 1000W RMS

Cooling

Natural Convection No Fan

Crossover Frequency

80 Hz, 100 Hz, 120 Hz Selectable

I/O

x2 Combo Inputs x2 XLR Pass Through Outputs

Suspension / Mounting

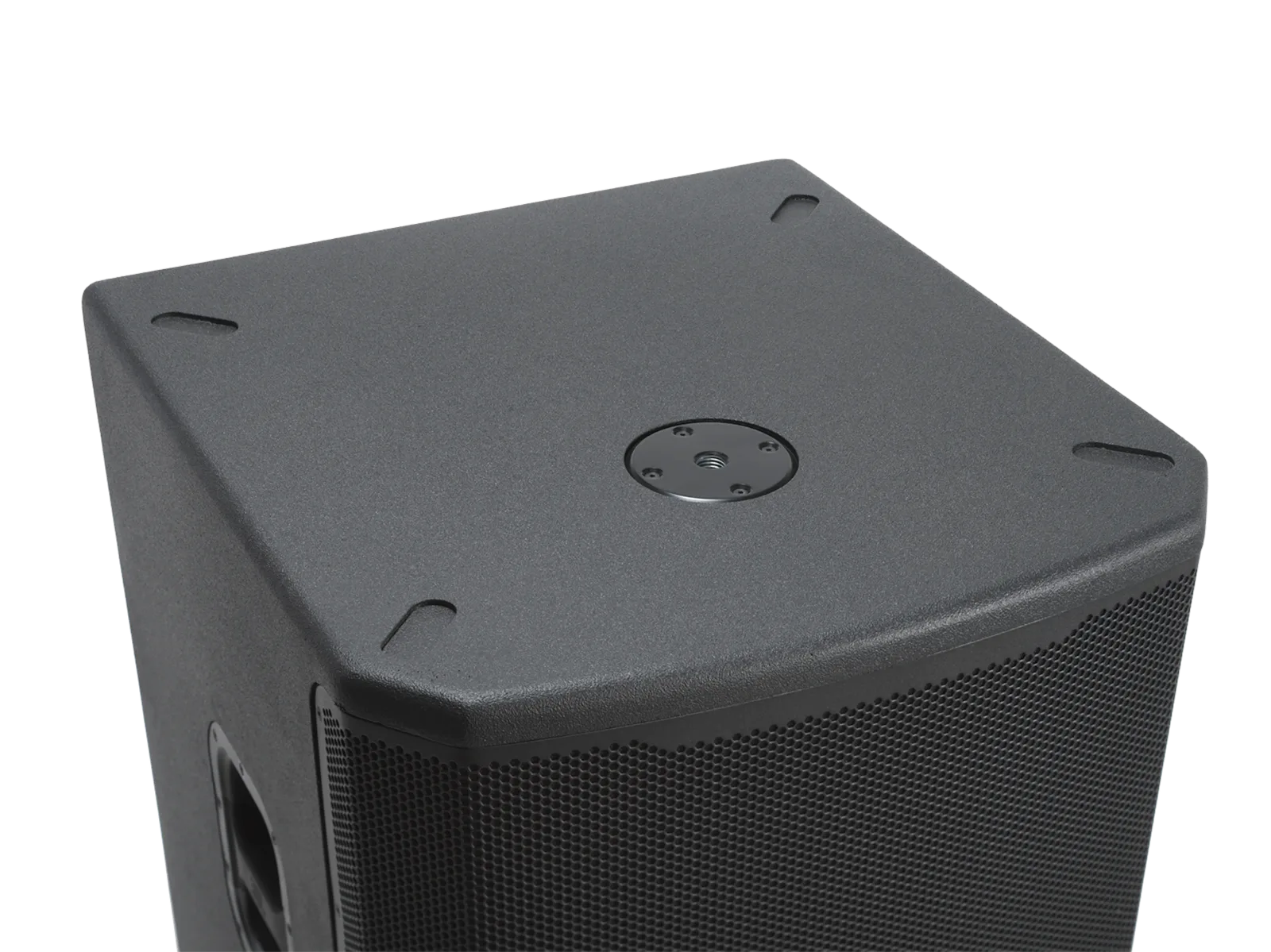

Pole Mount on Top Surface

Product Dimensions (H x W x D)

693 x 591 x 654 mm (27.3 x 23.3 x 25.7 in)

Net Weight

40.7 kg (89.7 lbs)
