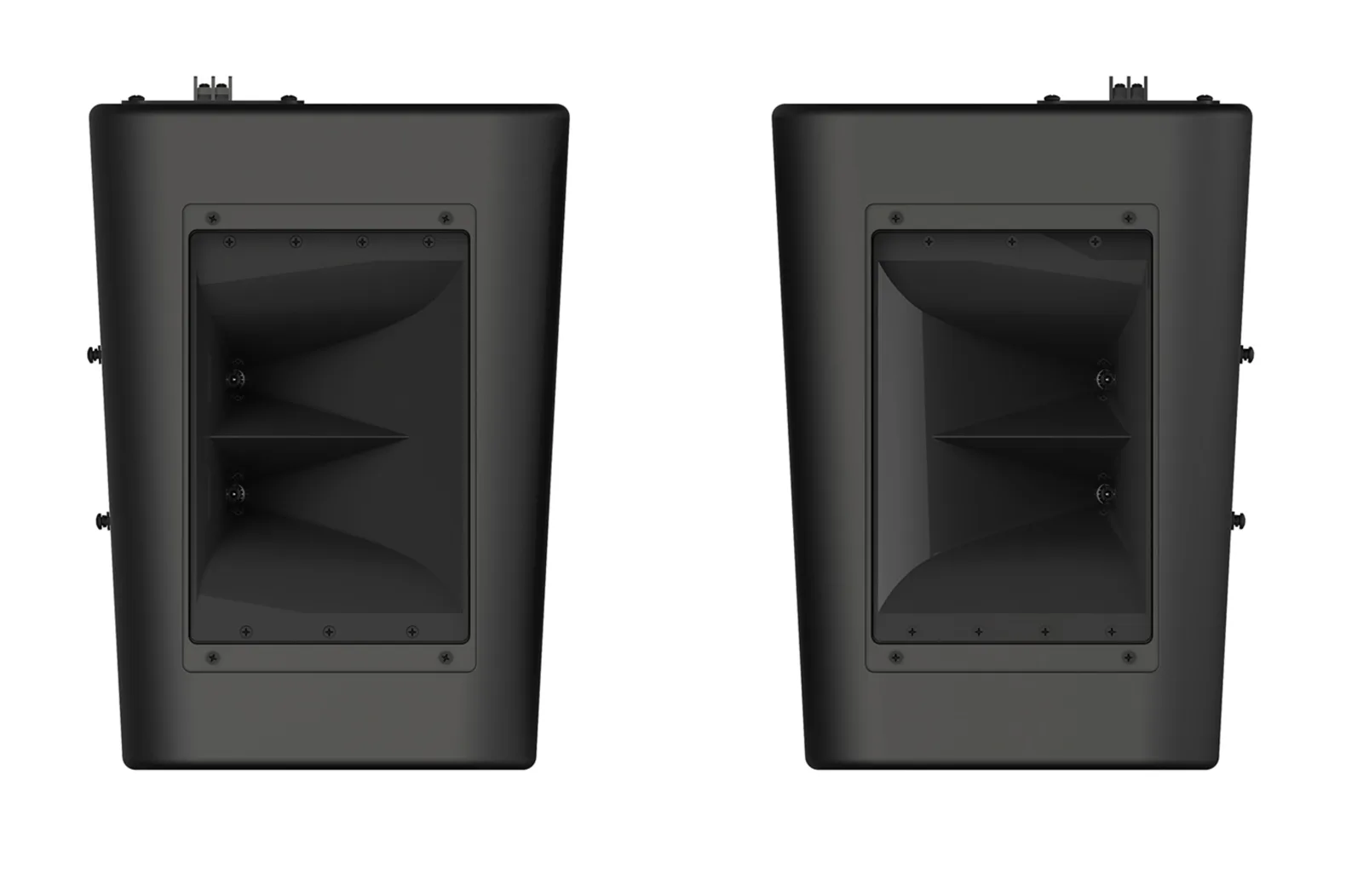

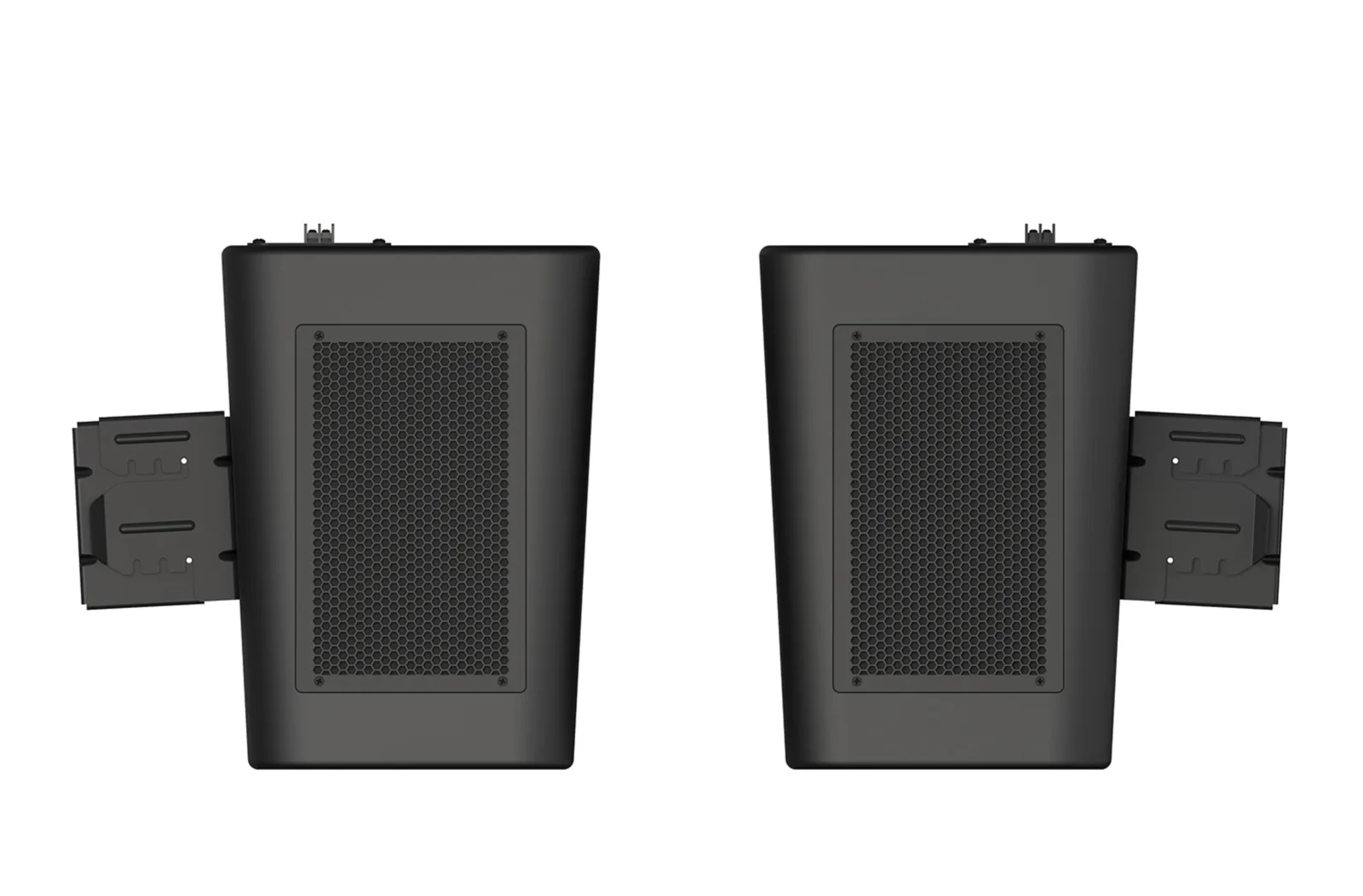

JBL CRF2 Reflector Horn for Cinema Loudspeakers | Sai Enterprises AV Solutions

Features

Dual Dissimilar Arraying coverage pattern for better high frequency coverage
Same HF driver as the 3733
Same mounting design as the 9300 / 9310 Surrounds
Sold in Left/Right pairs
Horn design includes a 30 degree angle which allows for a flush mount design (see polar plot for additional information)
Designed to be used with the 2520 mounting bracket
Part Lists
Authorized Service Partner Assets

Specifications

13 attributes

Attribute	Value
Model	CRF2
Drivers	2 x 2415J-XP 37.5 mm (1.5 in) compression driver
Rated Impedance	8 Ohms
Minimum Impedance	6.65 Ohms @ 20kHz
Frequency Response (±3 dB)	2.33kHz - 11.2kHz
Frequency Range (-10dB)	-10dB): 2.09kHz - 23kHz
Input Power Rating	150 Watts AES 100 hours; 300 Watts recommended amplifier
Sensitivity	102 dB, 2.83V @ 1m (3.3 ft)
Max Dimensions (H x W x D)	508 mm x 439 mm x 368 mm (20 in x 17.3 in x 14.5 in)
Net Weight (each)	11.3 kg (25 lb)
Shipping Weight (2 units)	27.2 kg (60 lb)
Nominal Impedance	8Ω
Power Handling (100Hr AES Rating)	150W
