| Model | Control SB2210 |
|---|
| Frequency Range (-10dB) | 38 Hz - 500 Hz |
|---|
| Frequency Response (-3 dB) | 48 Hz - 95 Hz |
|---|
| Power Rating | 500W (2000W peak) Continuous Pink Noise (2 hrs) 1000W Continuous Program(2 hrs) 400W (1600W peak) Continuous Pink Noise (100 hrs) |
|---|
| Maximum Input Voltage | 60.0VRMS (2 hrs), 120V peak |
|---|
| Sensitivity | 95 dB, 1W @ 1m in half-space (2π loading, average 50 – 90 Hz) |
|---|
| Maximum SPL (1m) | 122 dB in half-space (2π loading) |
|---|
| Impedance | 8Ω |
|---|
| Minimum Impedance | 7.2Ω at 160 Hz |
|---|
| Recommended Filter | 45 Hz, 24 dB/oct high-pass filter |
|---|
| Drivers | Two 250 mm (10 inch) diameter LF drivers, long-excursion design, woven fiberglass cone, highly damped butyl rubber surround, linear suspension spider , high temperature anodized aluminum voice coil former, high-temp voice coil wire and coil adhesive, FEA optimized motor construction, aluminum conductive ring. |
|---|
| Enclosure | High Impact PolyStyrene (HIPS) w/ 10% glass fill and internal 8 mm polyurethane co-mold, painted with highly-UV-resistant paint on white (-WH) model for maximum UV fade resistance. |
|---|
| Grille | Thermoset composite coated steel, zinc-plated, 3-layer foam backing. |
|---|
| Outdoor Capability | IP-45 rating per IEC529 when installed with included MTC-PC2 terminal panel cover. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. |
|---|

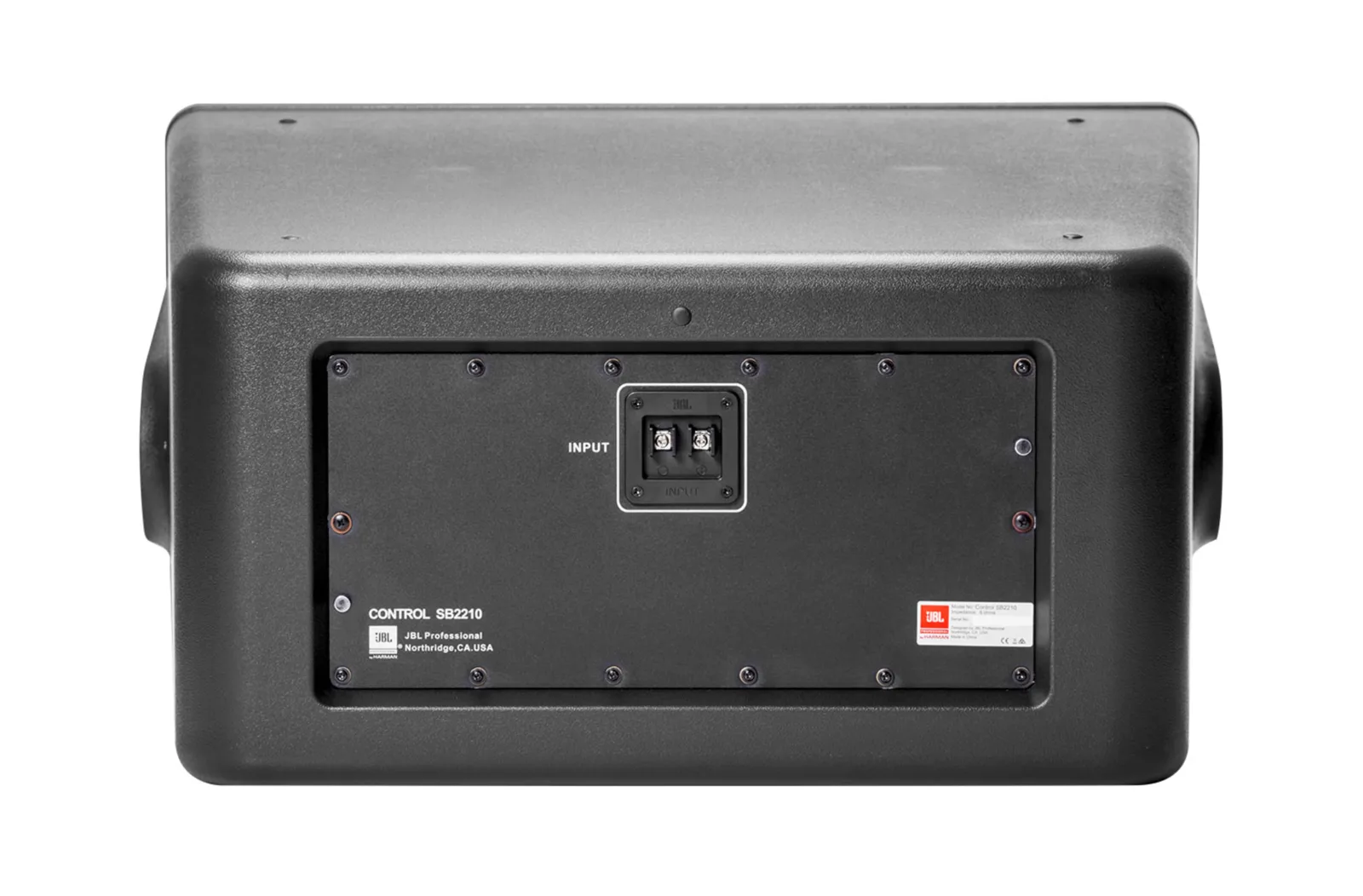

| Input Connectors | Screw-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside, 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5mm2). Included MTC-PC2 and optional MTC-PC3 protective covers available to provide sealed entrance for additional weather protection. |
|---|
