| Model | Control HST |
|---|
| Frequency Range (-10dB) | 50 Hz – 20 kHz |
|---|
| Frequency Response (±3 dB) | 68 Hz – 18 kHz |
|---|
| Coverage Angle | 180°H x160°V |
|---|
| Directivity Factor (Q) | 5.4 (1 k – 16 kHz) |
|---|
| Directivity Index (DI) | 7.2 dB (1 k – 16 kHz) |
|---|
| System Power Rating (IEC) | 100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs. |
|---|
| Sensitivity | 88 dB (Ave. 80 Hz – 20 kHz) |
|---|
| Maximum SPL (1m) | Direct 8Ω: 108 dB (peaks of 114 dB) 60 W Tap: 97 dB @ 60W |
|---|
| Crossover Network | 1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF |
|---|
| Impedance | 8 ohms |
|---|

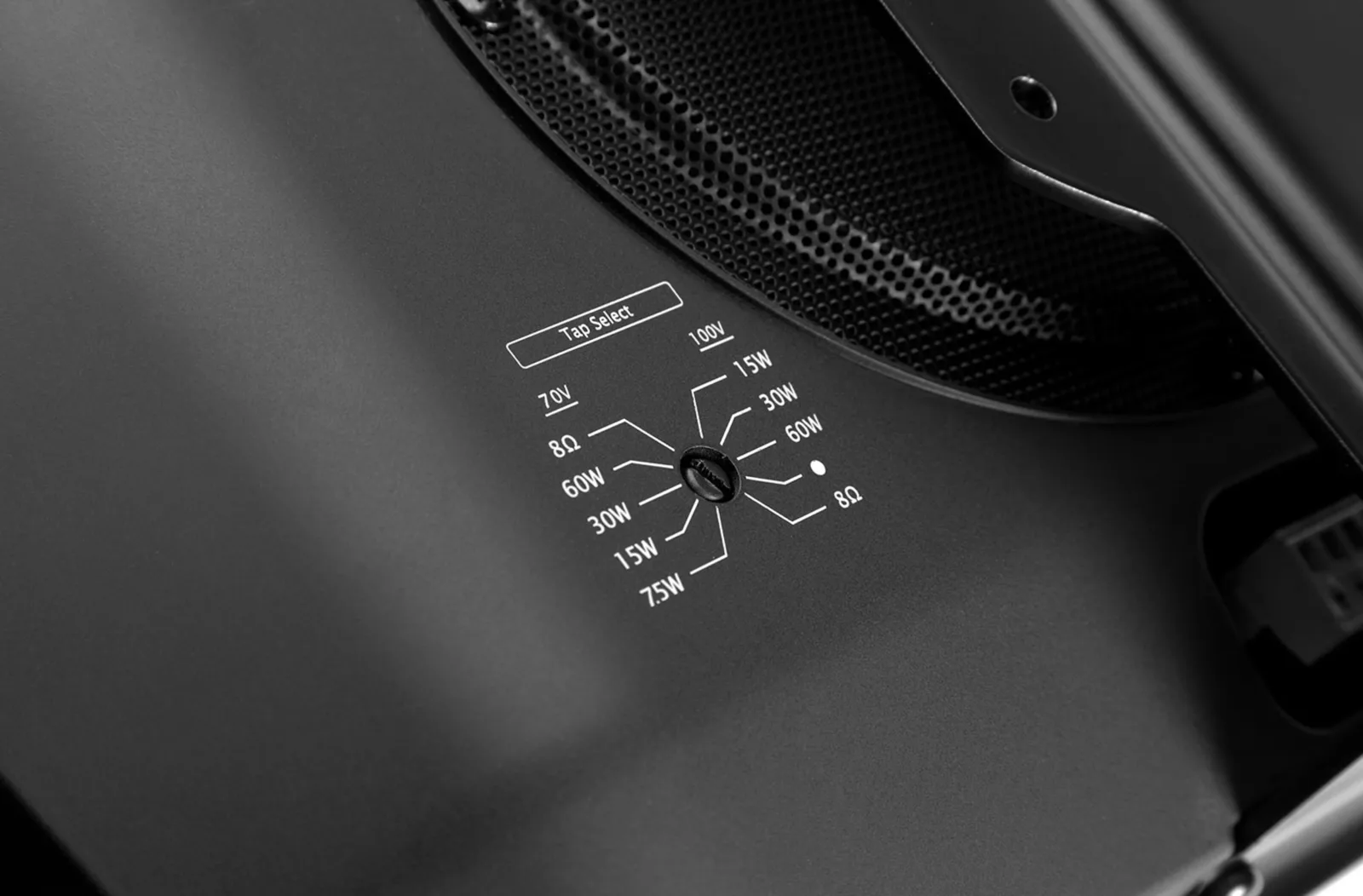

| Transformer Taps | 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W |
|---|

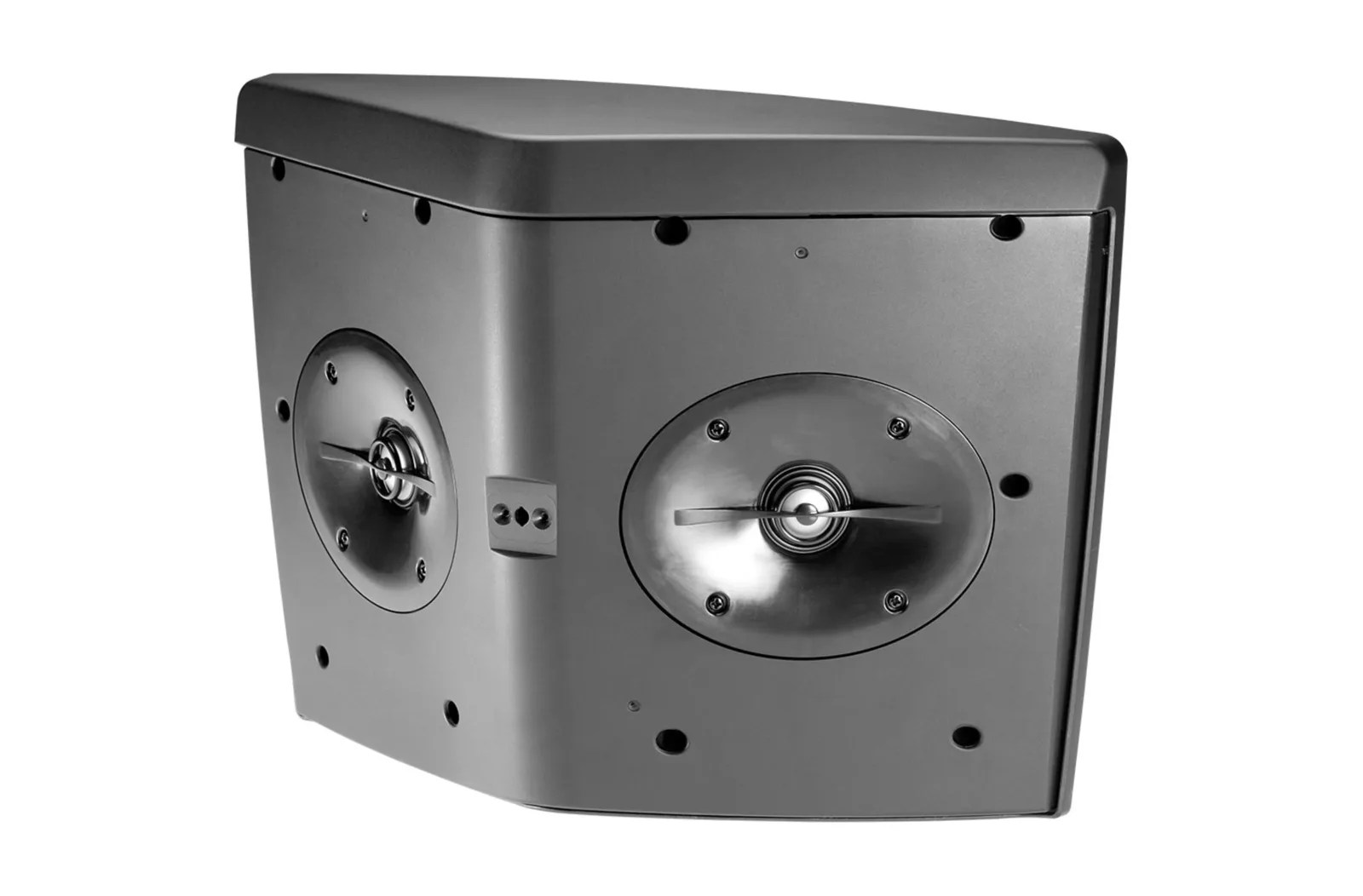

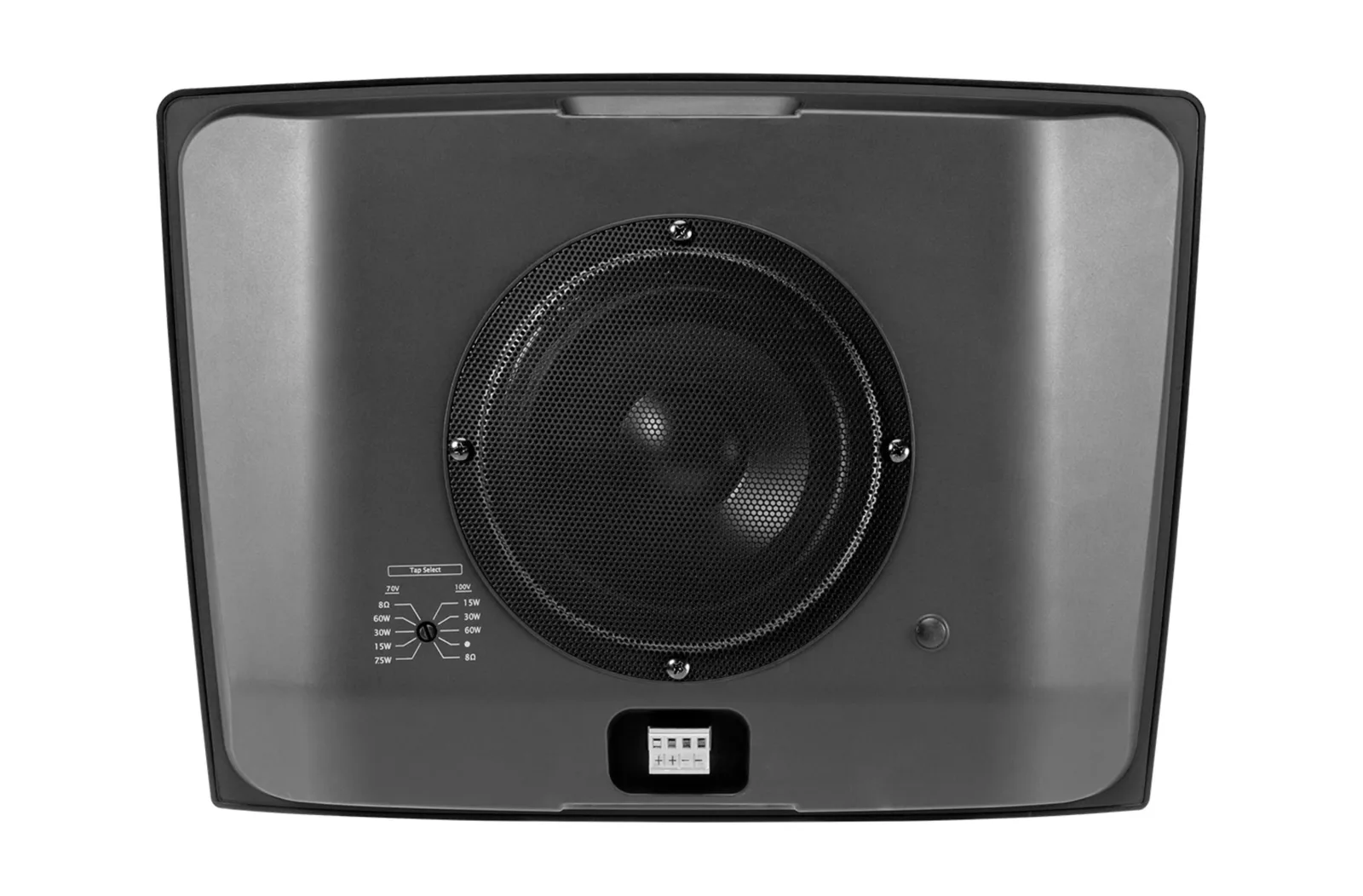

| Drivers | LF: CMMD ceramic metal matrix diaphragm cone, 25 mm (1 in) voice coil. HF: Two splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid-cooling. |
|---|
| Enclosure | Fiberglass-reinforced ABS |
|---|

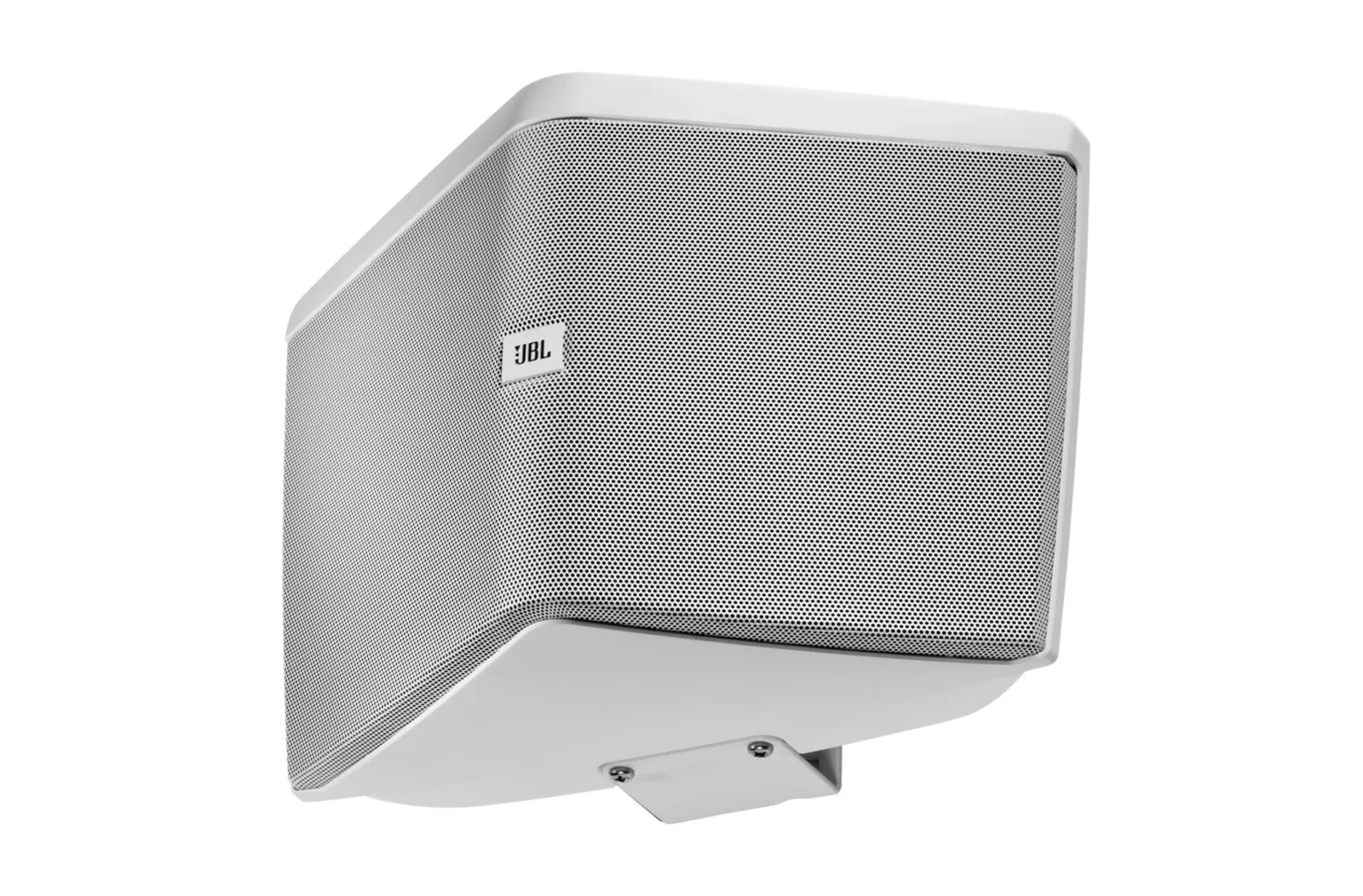

| Attachment | Four M6 points for included U-bracket. Additional M6 insert point provided for adding secondary safety attachment cable. U-bracket must be utilized. Must be mounted on wall surface. Do not mount on pole. |
|---|
| Grille | Aluminum grille, painted to match cabinet color. |
|---|
| Input Connectors | Removable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm2). |
|---|
|
