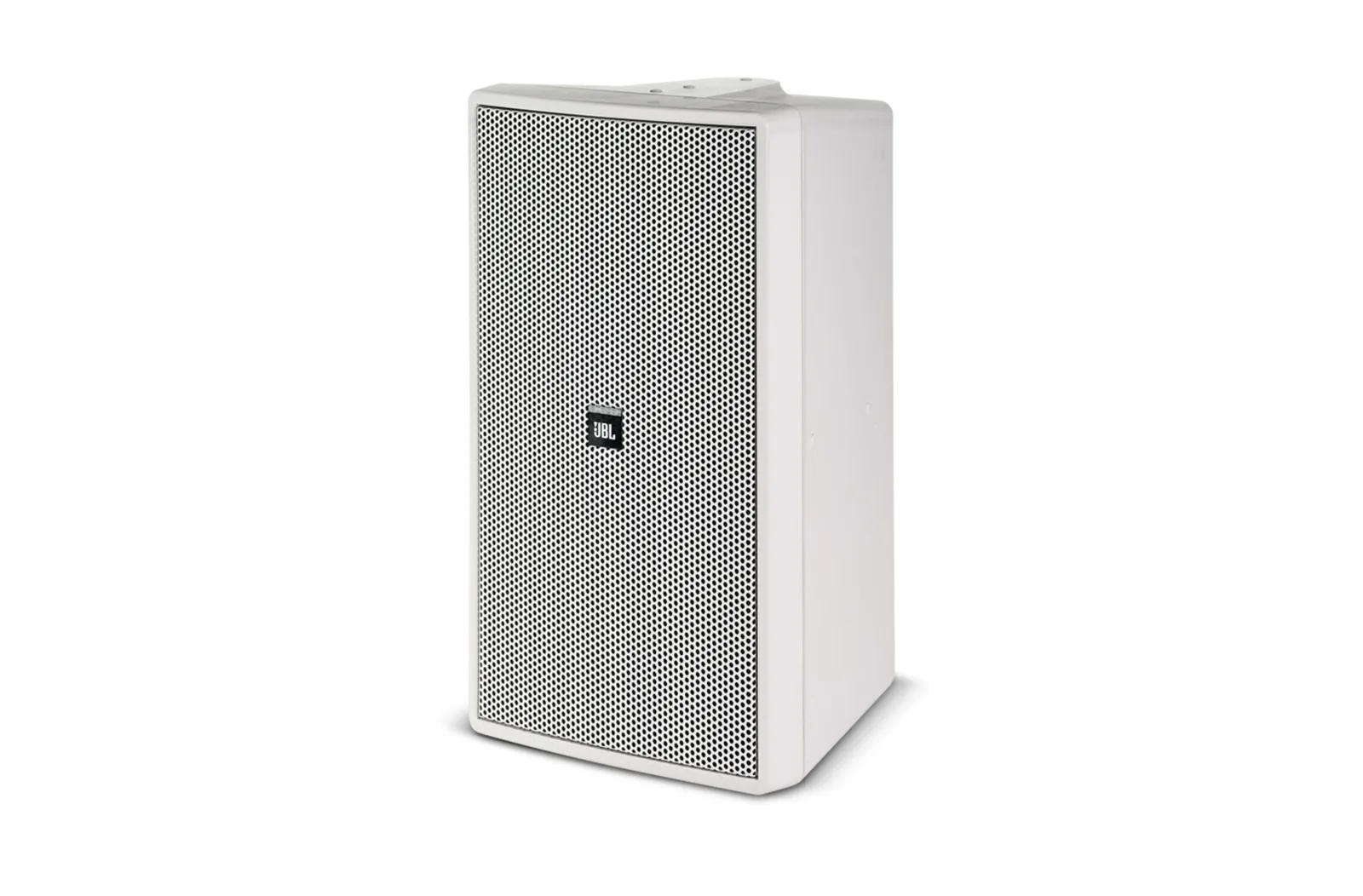

| Model | Control 29AV-1 |
|---|
| Frequency Range | 37 Hz –18 kHz (-10 dB) |
|---|
| Power Capacity | 300 W Continuous Program Power; 150 W Continuous Pink Noise |
|---|
| Transformer Taps | 70 V: 110 W, 55 W, 28 W & 14 W 100 V: 110 W, 55 W, & 28 W, Thru Position: 8 ohms nominal |
|---|
| Frequency Response | 45 Hz – 18 kHz ( ± 3 dB) |
|---|
| Maximum SPL (1m) | Short-Term: 120 dB; Long-Term: 114 dB |
|---|
| Nominal Sensitivity | 90 dB (2.83V / 1m) |
|---|
| Coverage Angle | 110°H x 85°V, Rotatable |
|---|
| Directivity Factor (Q) | 7.2 dB, averaged 500 Hz to 16 kHz |
|---|
| Directivity Index (DI) | 8.6 dB, averaged 500 Hz to 16 kHz |
|---|
| Impedance | 8 ohms |
|---|
| Minimum Impedance | 6.3 ohms @ 230 Hz |
|---|
| Crossover Network | 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency |
|---|
| Drivers | LF: 200 (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former HF: 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround |
|---|
| Enclosure | High impact polystyrene |
|---|
| Grille | Thermoset composite coated steel, WeatherMax multi-layer foam |
|---|
| Overload Protection | Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during exceptional overload conditions. |
|---|
| Outdoor Capability | IEC 529 IP-X4 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray. |
|---|
