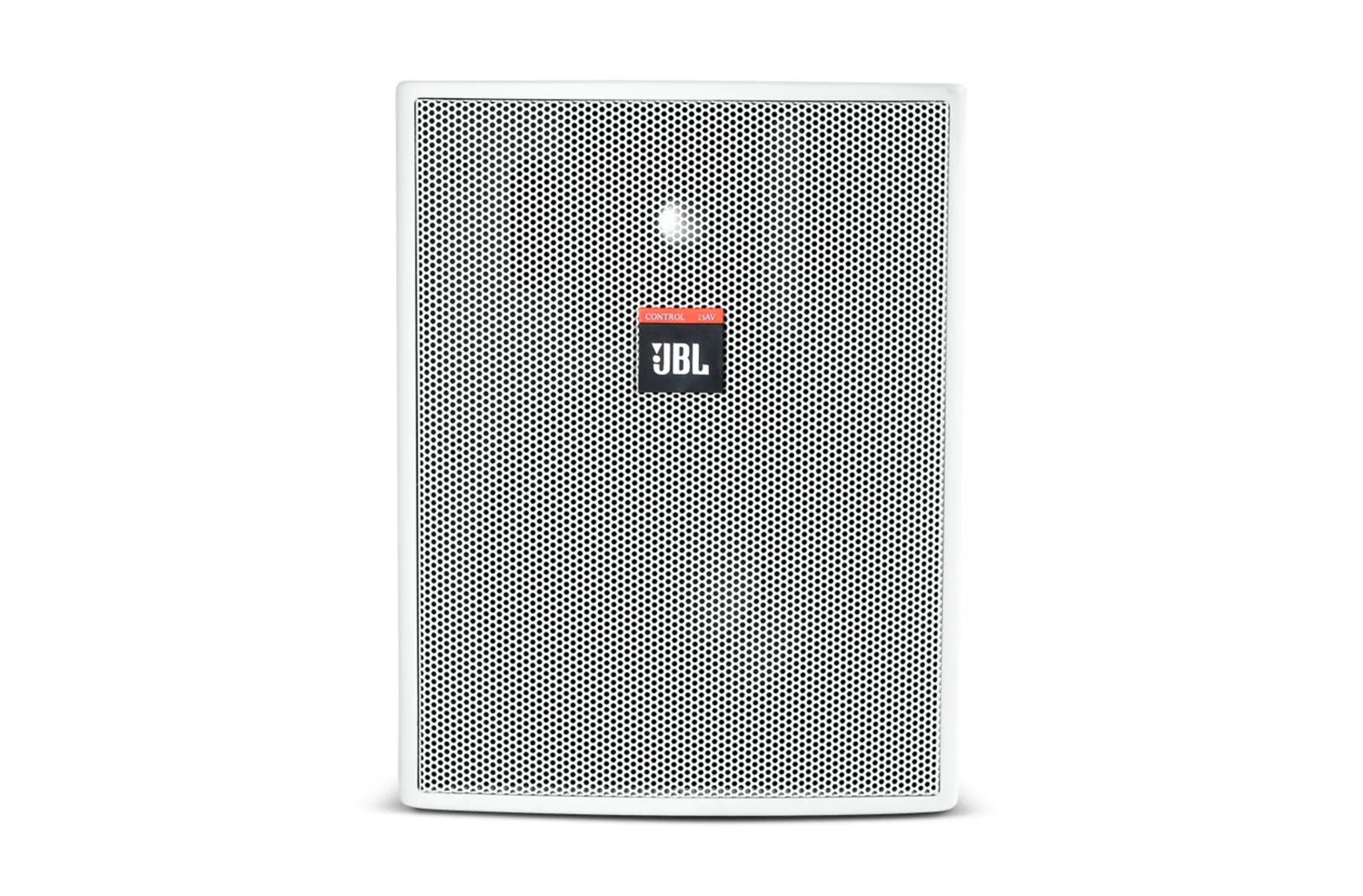

| Model | Control 25AV-LS |
|---|
| Frequency Range (-10dB) | 90 Hz - 20 kHz |
|---|
| Power Rating | 200 Watts Continuous Program Power (at 8 ohm bypass mode) 100 Watts Continuous Pink Noise (at 8 ohm bypass mode) 60 Watts (at 60W tap setting) |
|---|
| Transformer Taps | 60W, 30W, 15W (& 7.5W @ 70V) |
|---|
| Nominal Sensitivity | 88dB, 1W at 1m (1kHz–10kHz, ave., at 8 ohm bypass mode); 76 dB, 1W at 4m per EN54-24 (100 Hz – 10 kHz, ave., 8 ohm bypass mode) |
|---|
| Nominal Coverage | 110°H x 85°V (1 kHz to 16 kHz, avg.) |
|---|
| Directivity Factor (Q) | 4.8 (500 Hz to 4kHz) |
|---|
| Directivity Index (DI) | 6.5dB (500 Hz to 4kHz) |
|---|
| Maximum SPL | 107 dB @ 1m (3.3 ft) average, 113 dB peak, at 8 ohms bypass mode, 92 dB at 4 m (13.2 ft.) average, at 60W tap setting, measured |
|---|
| Impedance | 8 ohms (in bypass, position 5, mode) - tap 1: 667 ohms; tap 2: 333 ohms; tap 3: 166 ohms, tap 4: 82 ohms (typical) |
|---|
| Drivers | 130mm (5.25 in) with polypropylene coated paper cone withWeatherEdge surround, 25 mm (1 in) voicecoil on kapton former HF: 20mm (.75 in) titanium coated PEI |
|---|
| Input Connectors | Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm) |
|---|
| Enclosure | ABS, (materials rated UL94-5VA) |
|---|
| Grille | Aluminum with polyester powder coating |
|---|
| Outdoor Capability | Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, IEC 529 IP-x5 splashproof rating |
|---|
| Safety Agency | UL1480-UUMW Listed (S7232), EN54-24:2008 certified, NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849 |
|---|
