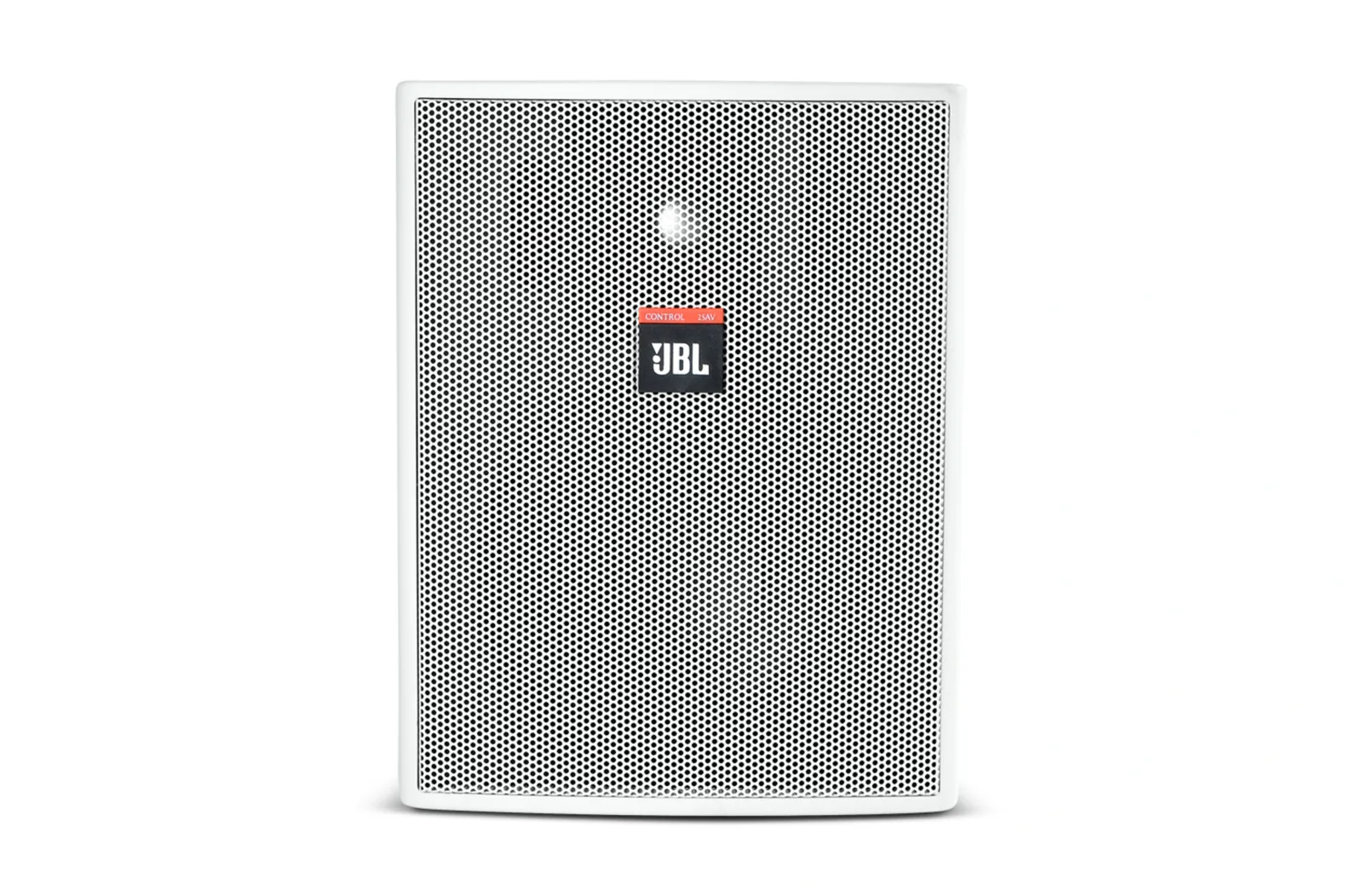

| Model | Control 25AV |
|---|
| Frequency Range | 70 Hz - 23 kHz (-10 dB) |
|---|
| Power Capacity | 200 W Continuous Program Power; 100 W Continuous Pink Noise |
|---|
| Transformer Taps | 70V: 60 W, 30 W, 15 W, 7.5 W 100V: 60 W, 30 W, 15 W |
|---|
| Sensitivity | 87 dB SPL, 1 W @ 1 m (3.3 ft) |
|---|
| Midrange (±1.5 dB, typical) | 130 Hz - 14 kHz |
|---|
| Coverage Angle | 100°H x 100°V |
|---|
| Maximum SPL (1m) | 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech |
|---|
| Directivity Factor (Q) | 4.9 dB, averaged 500 Hz to 4 kHz |
|---|
| Directivity Index (DI) | 6.9 dB, averaged 500 Hz to 4 kHz |
|---|
| Impedance | 8 ohms |
|---|
| Minimum Impedance | 6.7 ohms at 230 Hz |
|---|
| Crossover Network | Second Order Low Pass, Second Order High Pass, Complex Optimization for Maximally Flat Response |
|---|
| Drivers | LF: 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former HF: 20 mm (.75 in) titanium coated PEI |
|---|
| Enclosure | High Impact polystyrene |
|---|
| Grille | Painted stainless steel, black or white to match cabinet, paintable |
|---|
| Overload Protection | Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition |
|---|
| Outdoor Capability | Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating |
|---|
