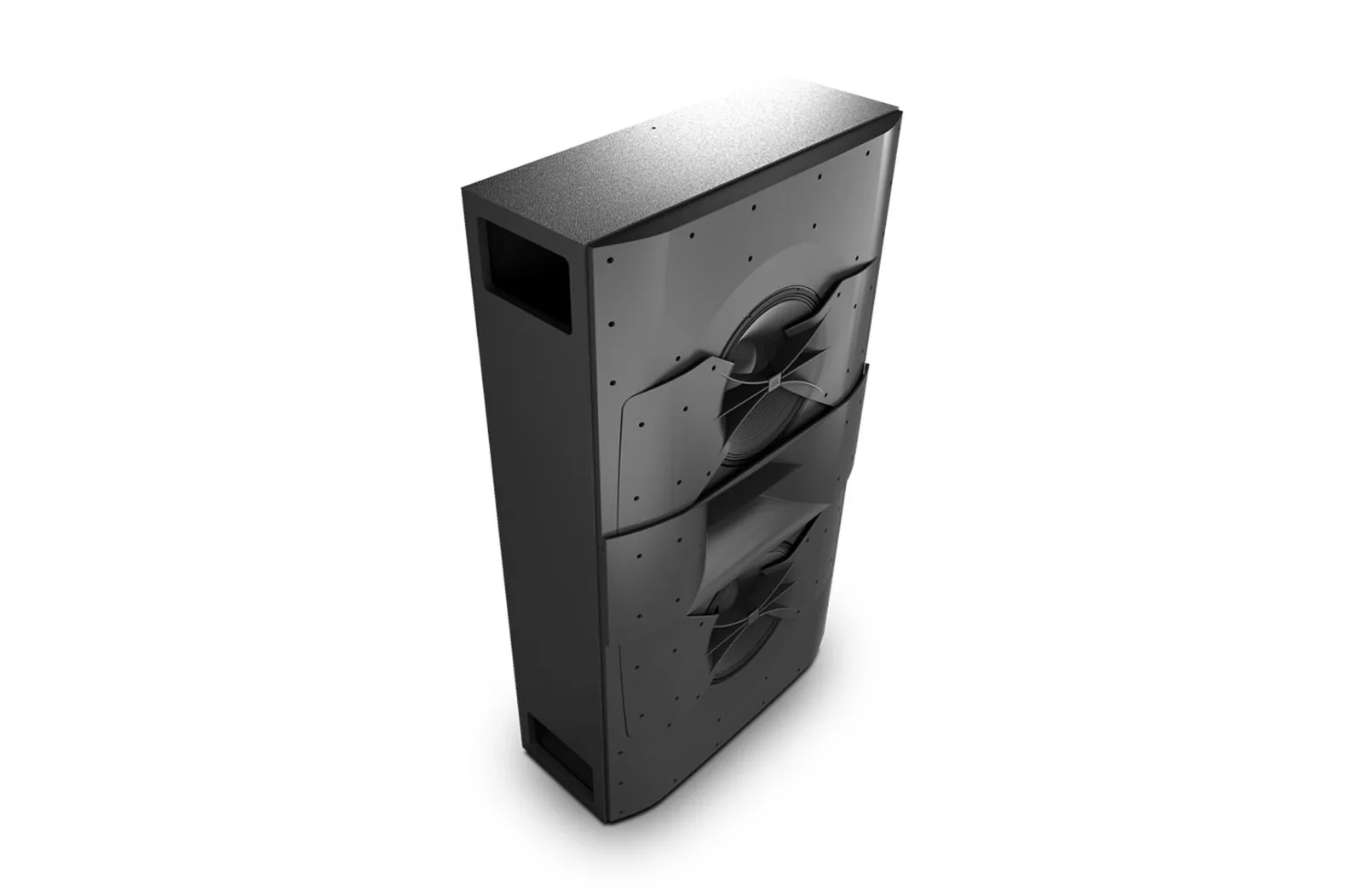

JBL C222HP High Performance ScreenArray Cinema Loudspeaker

The C222HP Two-Way ScreenArray Cinema Loudspeaker combines JBL’s latest technological advances with a compact footprint and accessible price point, making it easy to upgrade the sonic experience in your small or mid-sized cinema. Featuring patent-pending Dual Dissimilar Arraying and Acoustic Aperture Technology, the C222HP provides remarkably uniform coverage and smooth, accurate sound reproduction for every member of your audience. The C222HP is perfect for small and medium multiplexes, studios and dubbing stages with space constraints. And since the C222HP uses the same driver technology trusted by top movie studios around the world, your audience will enjoy a more captivating, authentic experience from every seat in the house—just like the creators intended. The C222HP represents JBL's most advanced cinema two-away ScreenArray.

Features

Next-generation two-way ScreenArray design for maximum output, improved coverage and minimum distortion

Patent-pending Dual Dissimilar Arraying Technology creates coverage pattern for raked seating areas, and extends HF output power and pattern control a full octave in both spectrum extremes

Patent-pending Acoustic Aperture Technology delivers improved drivers for lower distortion and higher sensitivity, plus enhanced mid-range performance for a smooth crossover transition

14" deep footprint saves space without sacrificing performance

Designed to achieve a maximum throw of 35 m (115')

C222HP is designed for medium sized cinemas, studios, and dubbing stages. The unique 2-way design that includes the Acoustic Aperture allows for a smooth response through crossover frequencies

Attribute

Value

Model

C222HP

Frequency Response (±3 dB)

44Hz - 18kHz

Frequency Response (-6 dB)

40Hz - 20kHz

Frequency Range (-10dB)

36Hz - 20kHz

Max Continuous SPL

135 dB

Horizontal Coverage (-6 dB)

100° @ 4kHz

Vertical Coverage (-6 dB)

Asymetrical 600 (+25, -45 @ 4kHz)

LF Nominal Impedance

4Ω

HF Nominal Impedance

8Ω

LF Minimum Impedance

3.15Ω @ 140Hz

HF Minimum Impedance

3.89Ω @ 9kHz

LF Power Handling (2Hr AES Rating)

1200W

LF Power Rating (100Hr AES Rating)

720W

HF Power Handling (2Hr AES Rating)

85W

LF Sensitivity

103 dB SPL @ 2.83V

HF Sensitivity

112 dB SPL @ 2.83V

Low Frequency

2 x 2275H-BK

High Frequency

2 x 2515XP-J

Meters

Feet

115

Dimensions (H x W x D) - Inches

59 x 33.75 x 14

Dimensions (H x W x D) - CM

149.8 x 85.73 x 35.56

Input Connectors
