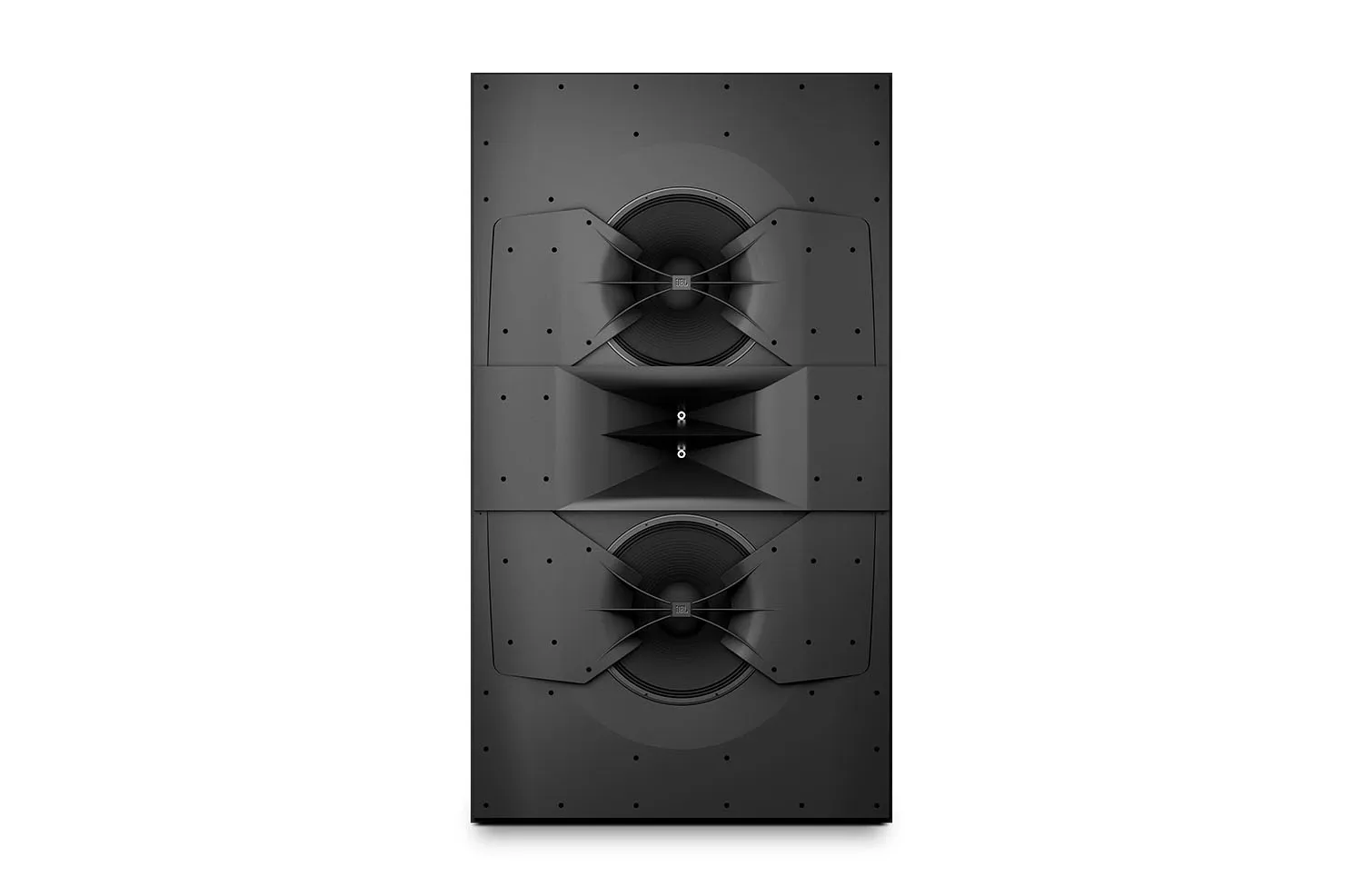

JBL C222 ScreenArray Cinema Loudspeaker

The C222 Two-Way ScreenArray Cinema Loudspeaker combines JBL’s latest technological advances with a compact footprint and accessible price point, making it easy to upgrade the sonic experience in your small or mid-sized cinema. Featuring patent-pending Dual Dissimilar Arraying and Acoustic Aperture Technology, the C222 provides remarkably uniform coverage and smooth, accurate sound reproduction for every member of your audience. The C222 has a depth of 12”, making it perfect for small and medium multiplexes with space constraints. And since the C222 uses the same driver technology trusted by top movie studios around the world, your audience will enjoy a more captivating, authentic experience from every seat in the house—just like the creators intended.

Features

Next-generation two-way ScreenArray design for maximum output, improved coverage and minimum distortion

Patent-pending Dual Dissimilar Arraying Technology creates coverage pattern for raked seating areas, and extends HF output power and pattern control a full octave in both spectrum extremes

Patent-pending Acoustic Aperture Technology delivers improved drivers for lower distortion and higher sensitivity, plus enhanced mid-range performance for a smooth crossover transition

12" footprint saves space without sacrificing performance

Designed for small and medium sized cinemas with a maximum throw distance of 25 m (82')

Attribute

Value

Model

C222

Frequency Response (±3 dB)

62Hz - 20kHz

Frequency Response (-6 dB)

50Hz - 20kHz

Frequency Range (-10dB)

42Hz - 20kHz

Passive Rated Impedance

4Ω

Minimum Impedance

3.2Ω @ 140Hz

Power Handling (2Hr AES Rating)

600W (45.5V)

Power Handling (100Hr AES Rating)

300W (35V)

LF Sensitivity

103 dB SPL @ 2.83V

HF Sensitivity

105 dB SPL @ 2.83V

Passive Sensitivity

103 dB SPL @ 2.83V

Calculated Max SPL

129 dB

Furthest Seat (Meters)

28.5

Furthest Seat (Feet)

Top Weight

100 lbs (45.36 kg)

Bottom Weight

69 lbs (31.30 kg)

Sensitivity

103dB @ 2.83V

Maximum SPL (1m)

129 dB

Nominal Impedance

4Ω

Net Weight (each)

169 lbs (76.66 kg)
