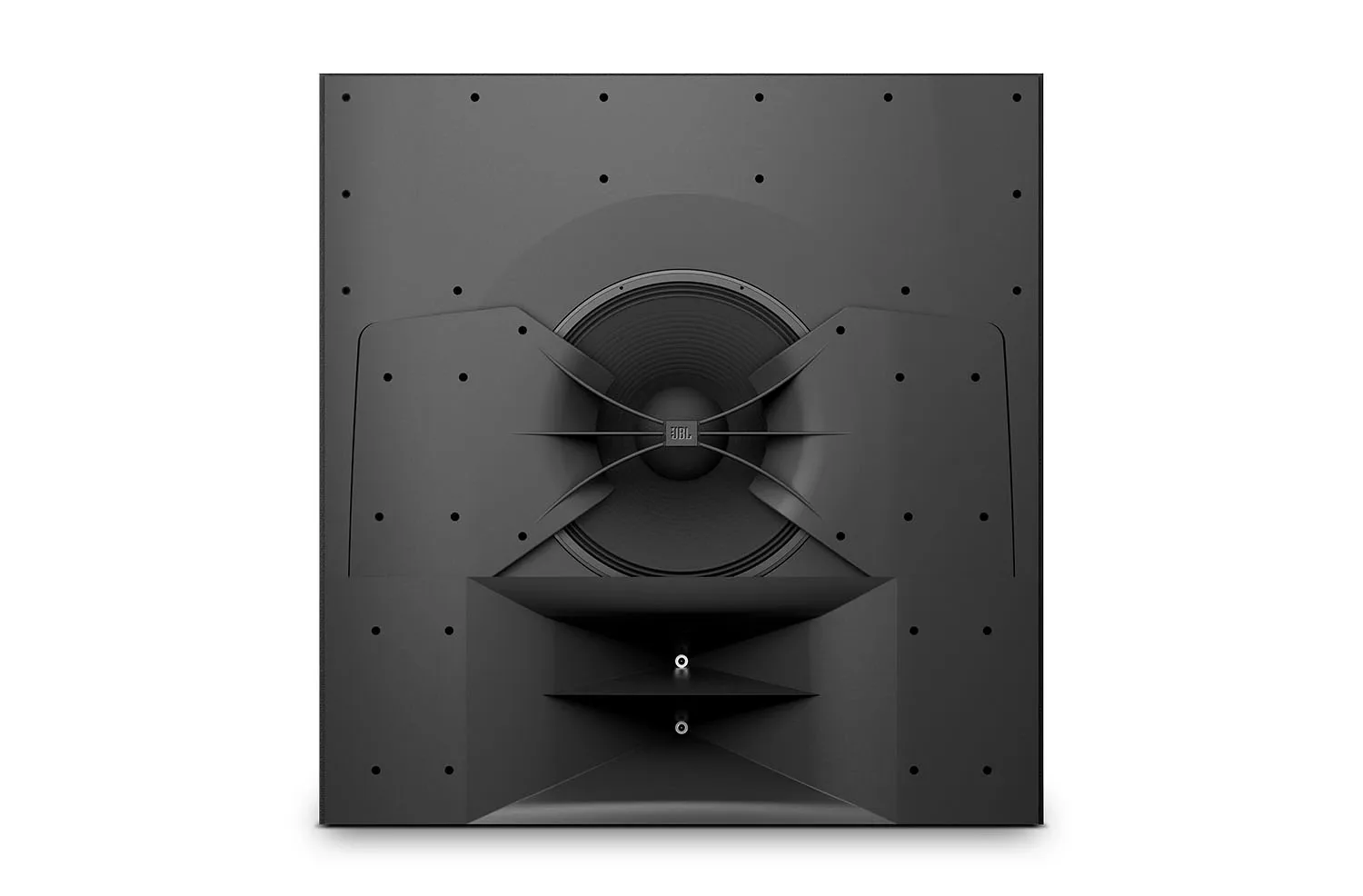

JBL C221 ScreenArray Cinema Loudspeaker

The C221 Two-Way ScreenArray Cinema Loudspeaker combines JBL’s latest technological advances with a compact footprint and accessible price point, making it easy to upgrade the sonic experience in your small or mid-sized cinema. Featuring patent-pending Dual Dissimilar Arraying and Acoustic Aperture Technology, the C221 provides remarkably uniform coverage and smooth, accurate sound reproduction for every member of your audience. The C221 has a depth of 12”, making it perfect for small and medium multiplexes with space constraints. And since the C221 uses the same driver technology trusted by top movie studios around the world, your audience will enjoy a more captivating, authentic experience from every seat in the house—just like the creators intended

Features

Next-generation two-way ScreenArray design for maximum output, improved coverage and minimum distortion

Patent-pending Dual Dissimilar Arraying Technology creates coverage pattern for raked seating areas, and extends HF output power and pattern control a full octave in both spectrum extremes

Patent-pending Acoustic Aperture Technology delivers improved drivers for lower distortion and higher sensitivity, plus enhanced mid-range performance for a smooth crossover transition

12" footprint saves space without sacrificing performance

Designed for small and medium sized cinemas with a maximum throw distance of 15m (49.20ft)

Attribute

Value

Model

C221

Frequency Response (±3 dB)

77Hz - 18kHz

Frequency Response (-6dB)

58kHz - 20kHz

Frequency Range (-10dB)

44Hz - 20kHz

Crossover Frequencies

1700Hz (LF), 2000Hz (HF1), 1700Hz (HF2)

Free Field Passive Sensitivity

100dB SPL @2.83V

Calculated Max SPL

125 dB

Passive Rated Impedance

8Ω

Minimum Impedance

7Ω @ 167Hz

Power Handling (2Hr AES Rating)

300W

Power Handling (100Hr AES Rating)

150W

LF Sensitivity

100dB SPL @ 2.83V

HF Sensitivity

100 dB SPL @ 2.83V

Furthest Seat

15m/49.20ft

Net Weight (each)

100 lbs (45.36 kg)

Dimensions (H x W x D) - Inches

35" x 34" x 12"

Dimensions (H x W x D) - CM

88.9 x 85.73 x 30.48

Sensitivity

100dB @ 2.83V

Maximum SPL (1m)

125 dB

Nominal Impedance

8Ω
