Features

Next-generation JBL driver technology

Patented JBL Image Control Waveguide

Integrated dual amplification system with internal floating-point DSP

Comprehensive room EQ and delay controls

Compact enclosures for easy placement and installation

JBL 725G low-frequency transducer delivers low-distortion and high SPL

JBL 2409H high-frequency transducer with low-mass annular diaphragm

JBL-designed patented Image Control Waveguide

2-channel Class-D amplifier HF 250W / LF 250W

192 kHz, 32-bit floating point processing

12 bands of Room EQ, 8 bands of User EQ

6 factory presets, 6 user-defined presets

Attribute

Value

Model

705P

Frequency Response (±3 dB)

45Hz-25kHz

Frequency Range

39Hz – 36 kHz

Max Continuous SPL

(80 Hz - 20 kHz) >101 dB SPL / 1m

Maximum Peak SPL

(80 Hz - 20 kHz) >107 dB SPL / 1m

HF Driver

2409H

LF Driver

725G - 5in (127mm)

Dividing Network Transition Frequency

1.9 kHz

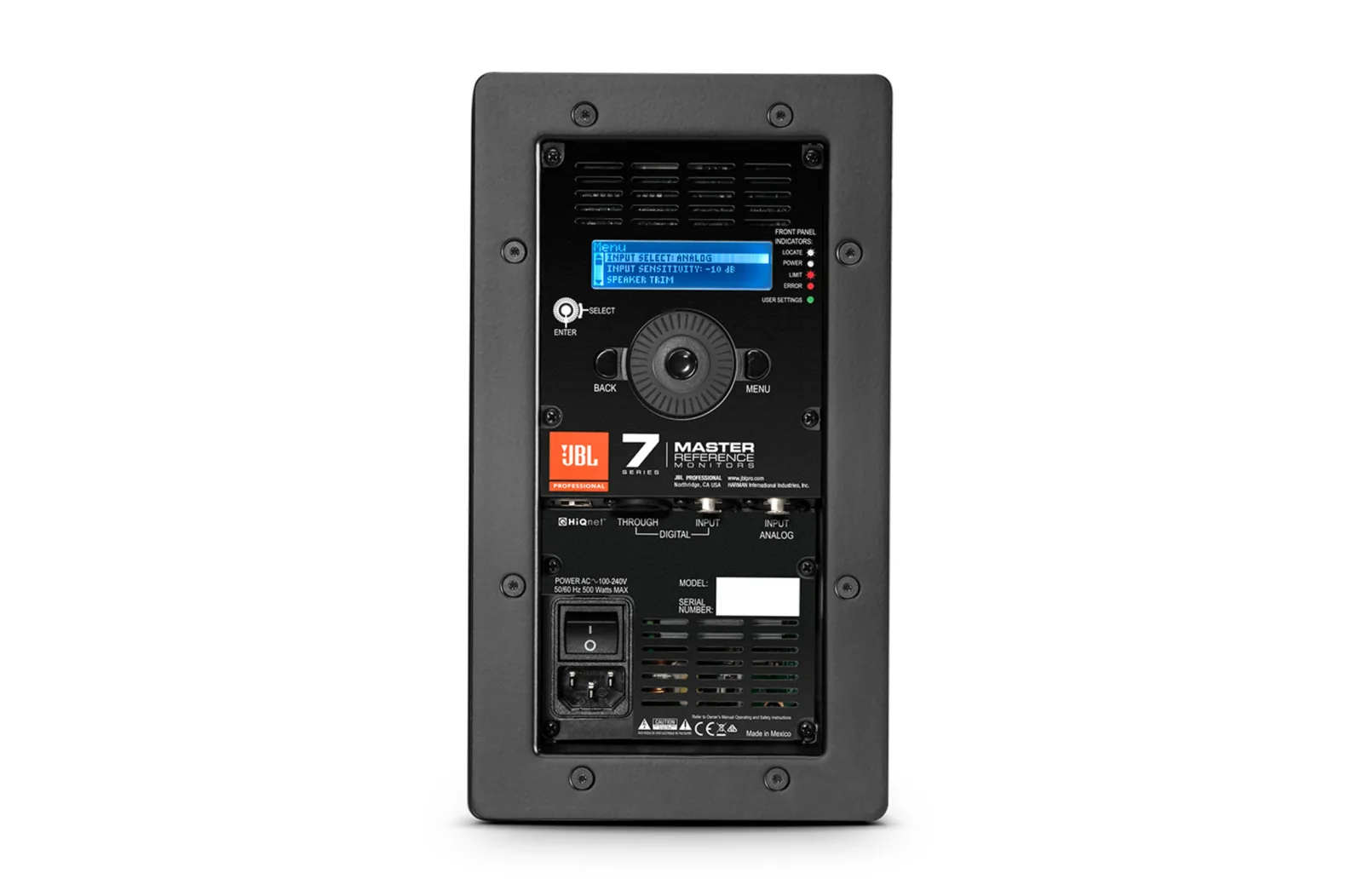

Input Connectors

1 x XLR balanced analog audio input 1 x XLR AES3 format digital input with 1 x XLR pass-through output Digital input will accept sample rates up to 192 kHz

Dimensions (HxWxD)

268 x 151 x 274 (10.56 x 5.94 x 10.80)

Net Weight (each)

5.68 kg (12.5 lbs.)

Enclosure

Birch plywood reinforced for mounting

Mounting

Top, bottom and rear mounting points. 2-hole mounting pattern

LF Driver Power Handling

250W Class D

Amplifier Power Rating

250W
