Features

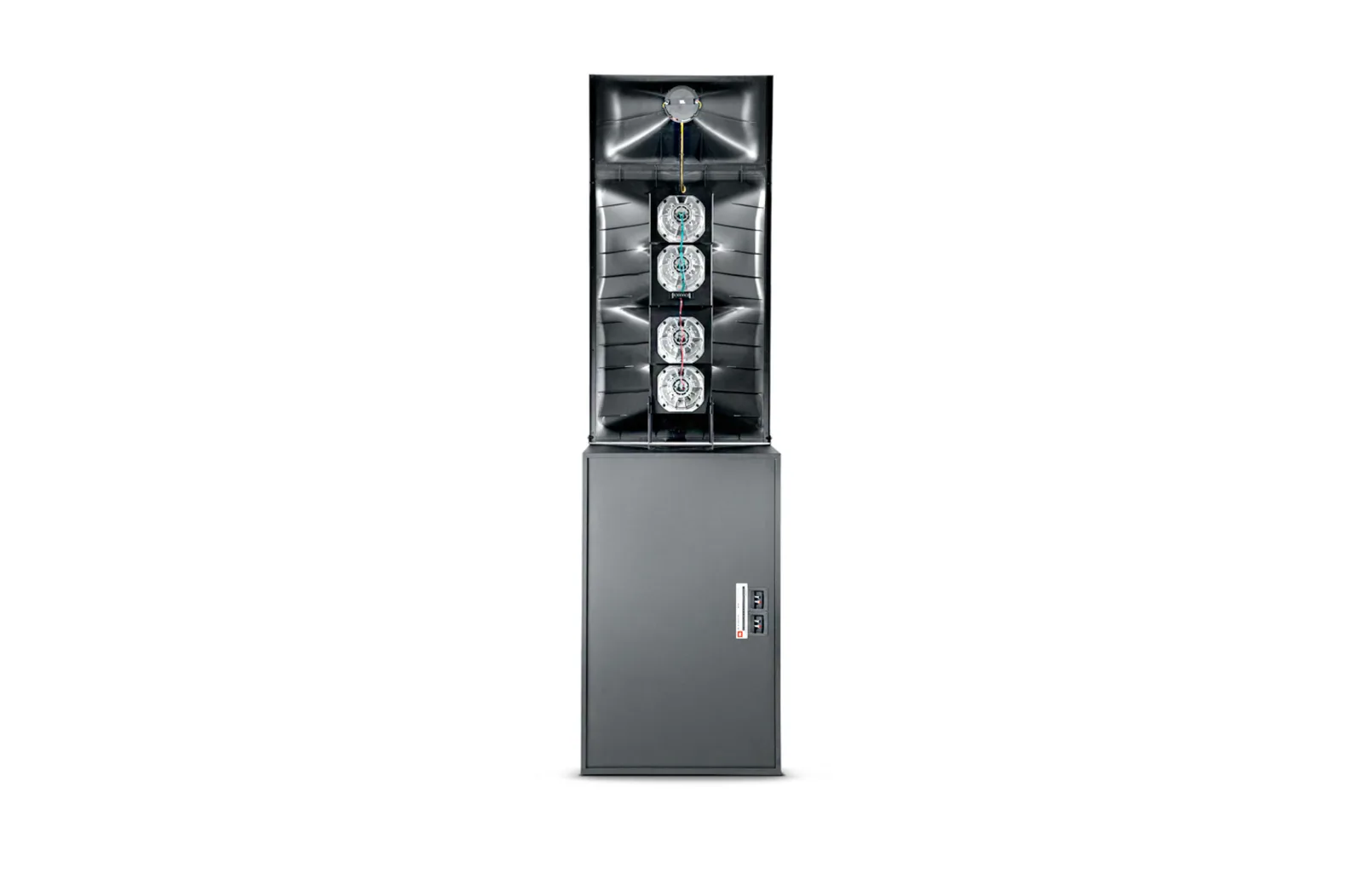

High power four-way ScreenArray design for maximum output, optimal coverage, and minimum distortion.

1400 watt midrange featuring four 8" Differential Drive transducers

Large format 4" neodymium, damped titanium diaphragm, high frequency compression driver.

1600 watt low frequency section with two 18" SVG low frequency drivers

New molded Optimized Aperture Waveguide technology for ultra low distortion and extremely uniform frequency response.

JBL Patented SSC Screen spreading Compensation

Focused Coverage Technology

Flat Front Wave Guide design for easy baffle wall installation

Shallow 24" depth for minimum behind screen depth requirements.

High power for critical sound reproduction in large format cinemas, studio production and post production applications.

Attribute

Value

Model

5742

Frequency Response (±3 dB)

30 Hz - 19 kHz

Frequency Range (-10dB)

25 Hz - 20 kHz

Sensitivity

115 dB, 2.83V @ 1m (3.3 ft)

Maximum SPL (1m)

136 dB @ 1m, 142 dB Peak

System Input Power Rating

LF: 1600 WMF: 1400 WHF: 150 W

Horizontal Coverage Angle (-6dB)

90°

Vertical Coverage Angle (-6dB)

20° up, 30° down

Directivity Factor (Q)

10.0

Directivity Index (dB)

Crossover Frequencies

220 Hz, 550 Hz, 1.3 kHz

Dimensions (H x W x D)

2763 mm x 762 mm x 610 mm(108.8 in x 30.0 in x 24.0 in)

Net Weight (each)

282 lbs (128.1 kg)

Shipping Weight

333 lbs (151.4 kg)

Low Frequency

2 x 2242HPL, 460 mm (18 in) dia. Super Vented Gap Cooled (SVG), 100 mm (4 in) dia. edgewound ribbon voice coils.

Nominal Impedance

4Ω

Input Power Rating

1600 W (AES), 2000 to 4000 W recommended amplifier

Input Connectors

Push terminal binding posts

Mid Frequency

4 x 2169J, 200 mm (8 in) dia. Differential Drive Neodymium Magnet, 76 mm (3 in) dual coil edgewound ribbon voice coil.

High Frequency

2452H-SL 38 mm (1.5 in) exit compression driver with 100 mm (4 in) diameter voice coil and Neodymium magnet.
