Features

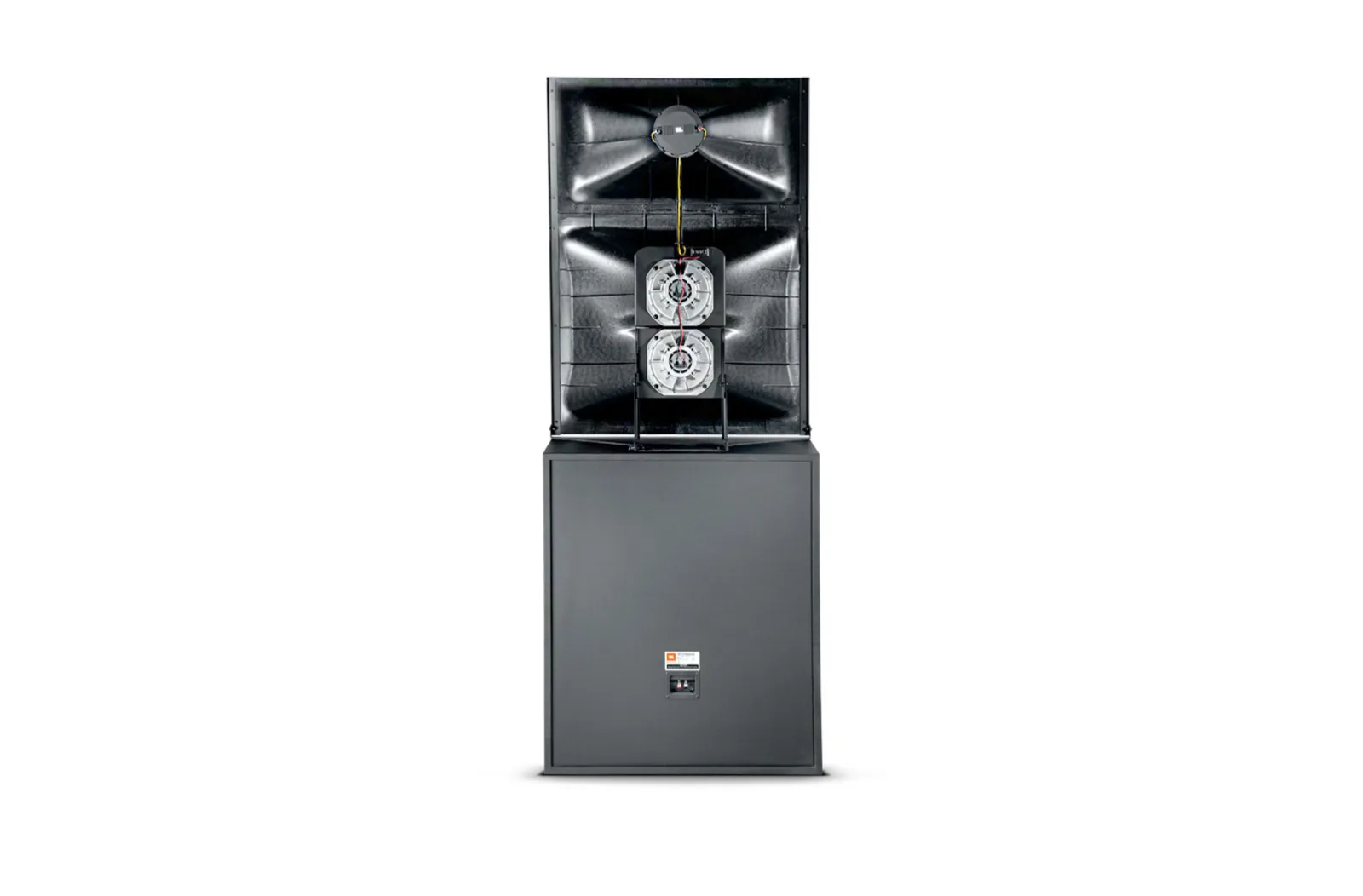

Three-way ScreenArray design for maximum output, optimal coverage, and minimum distortion.

700 watt midrange featuring two 8" Differential Drive transducers

Large format 4" neodymium, damped titanium diaphragm, high frequency compression driver.

1200 W low-frequency section with two 15" Vented Gap Cooled low frequency transducers

New molded Optimized Aperture Waveguide technology for ultra low distortion and extremely uniform frequency response.

JBL Patented SSC Screen spreading Compensation

Focused Coverage Technology

Flat Front Wave Guide for easy baffle wall installation

Shallow 18" profile for minimum behind screen depth requirements.

High power critical sound reproduction in premier cinemas and studio production and post production applications.

Attribute

Value

Model

5732

Frequency Response (±3 dB)

40 Hz – 19 kHz

Frequency Range (-10dB)

30 Hz – 20 kHz

Sensitivity

115 dB, 2.83V @ 1m (3.3 ft)

Maximum SPL (1m)

128 dB @ 1m, 134 dB Peak

System Input Power Rating

LF: 1200 WMF: 700WHF: 150W

Horizontal Coverage Angle (-6dB)

90°

Vertical Coverage Angle (-6dB)

20° up, 30° down

Directivity Factor (Q)

10.0

Directivity Index (dB)

Crossover Frequencies

250 Hz, 1.3 kHz

Dimensions (H x W x D)

1937 mm x 762 mm x 450 mm(76.3 in x 30.0 in x 17.8 in)

Net Weight (each)

190 lbs (86 kg)

Shipping Weight

223 lbs (101 kg)

Low Frequency

2 x 2226HPL, 380 mm (15 in) dia. Vented Gap Cooled (VGC), 100 mm (4 in) dia. edgewound ribbon voice coils.

Nominal Impedance

4Ω

Input Power Rating

1200 W (AES), 1500 to 3000W recommended amplifier

Input Connectors

Push terminal binding posts

Mid Frequency

2 x 2169J, 200 mm (8 in) dia. Differential Drive Neodymium Magnet, 76 mm (3 in) dual coil edgewound ribbon voice coil.

High Frequency

2452H-SL 38 mm (1.5 in) exit compression driver with 100 mm (4 in) diameter voice coil and Neodymium magnet.
