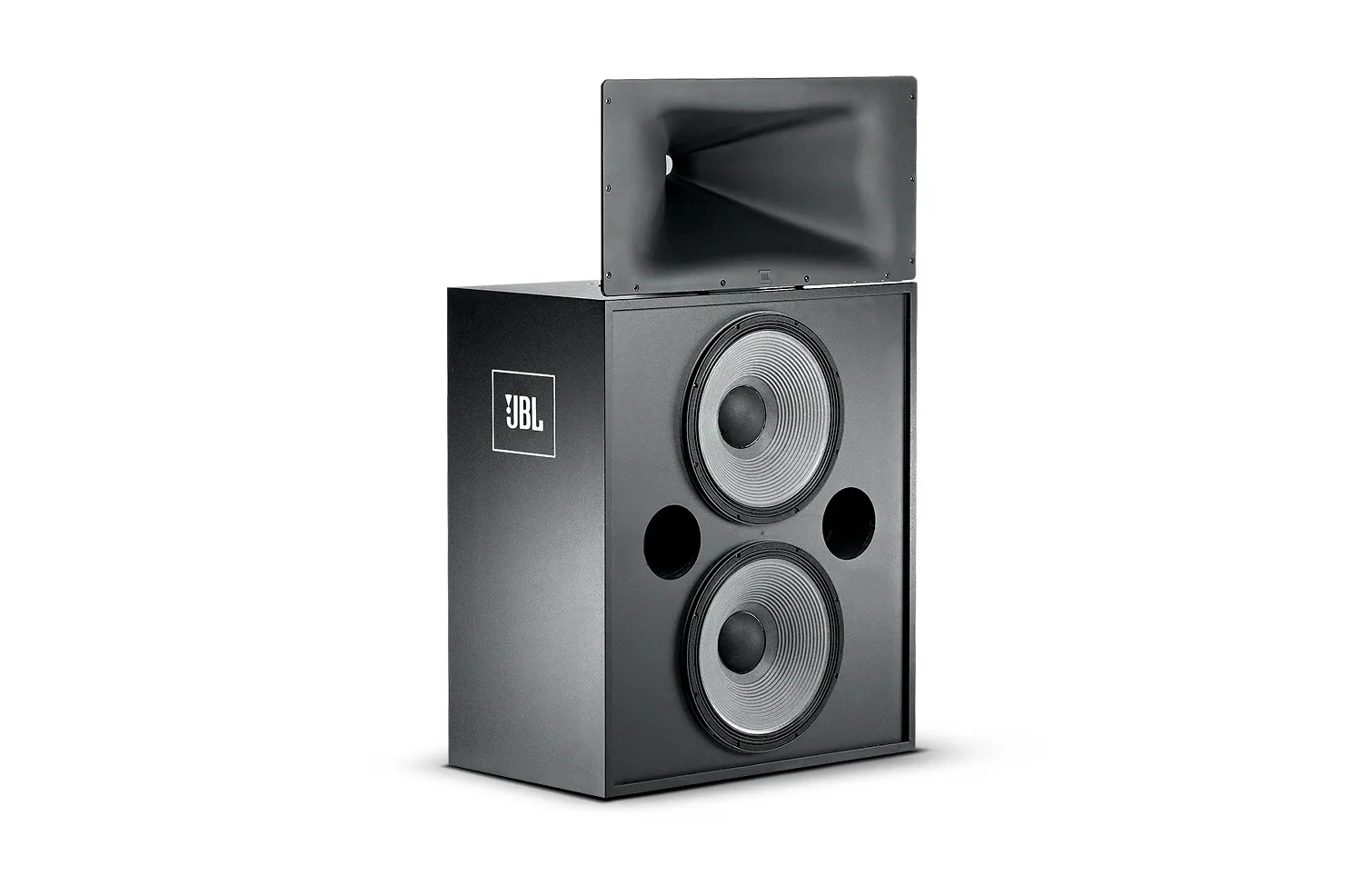

View larger image of JBL 4722/4722N — official product photo
14 attributes
| Attribute | Value |
|---|---|
| Model | 4722/4722N |
| Frequency Response (±3 dB) | 40 Hz - 19 kHz |
| Frequency Range (-10dB) | 30 Hz - 20 kHz |
| Sensitivity | 104dB @ 2.83V |
| Nominal Impedance | 4722N: 4Ω, 4722: HF 8Ω, 4722: LF 4Ω |
| Maximum SPL (1m) | 130dB, @ 1m (3.3ft) 136 dB peak |
| Bi-Amp System Input Power Rating | LF: 808W HF: 85W |
| Crossover Frequency | 4722: 630Hz 4722N: 800Hz |
| Dimensions (H x W x D) | 1265 x 762 x 450mm(49.9 x 30 x 17.75in) |
| Net Weight (each) | 123 lbs (55.8 kg) |
| Shipping Weight | 144 lbs (65.4 kg) |
| 4739 Low Frequency | 2 x 26SH-1 380 mm (15 in) dia., 76 mm (3 in) edgewound ribbonvoice coil transducers mounted in 4509 LF enclosure |
| 4722-HF High Frequency Pack | One 2432H compression driver, One2384 horn, one adjustable bracket |
| Power Handling (2Hr AES Rating) | 800W |
