View larger image of JBL 3635 — official product photo
14 attributes
| Attribute | Value |
|---|---|
| Model | 3635 |
| Frequency Range (±3 dB) | 38 Hz - 100 Hz |
| Frequency Range (-10dB) | 28 Hz - 500 Hz |
| Power Handling (2Hr AES Rating) | 300 W |
| Sensitivity | 100 dB |
| Nominal Impedance | 8Ω |
| Recommended Crossover Frequency | 100 kHz |
| Half-Space Reference Efficiency | 5% |
| Maximum Acoustic Power Output | 15 W IEC Standard (Sine Wave Input) |
| System Polarity | Positive Voltage to RED produces forward cone motion |
| Input Connectors | Barrier Strip Screw Terminals |
| Dimensions (H x W x D) | 1168 x 651 x 368 mm (46 x 25.625 x 14.5 in) |
| Net Weight (each) | 113 lb (51 kg) |
| Maximum SPL (1m) | 125 dB |

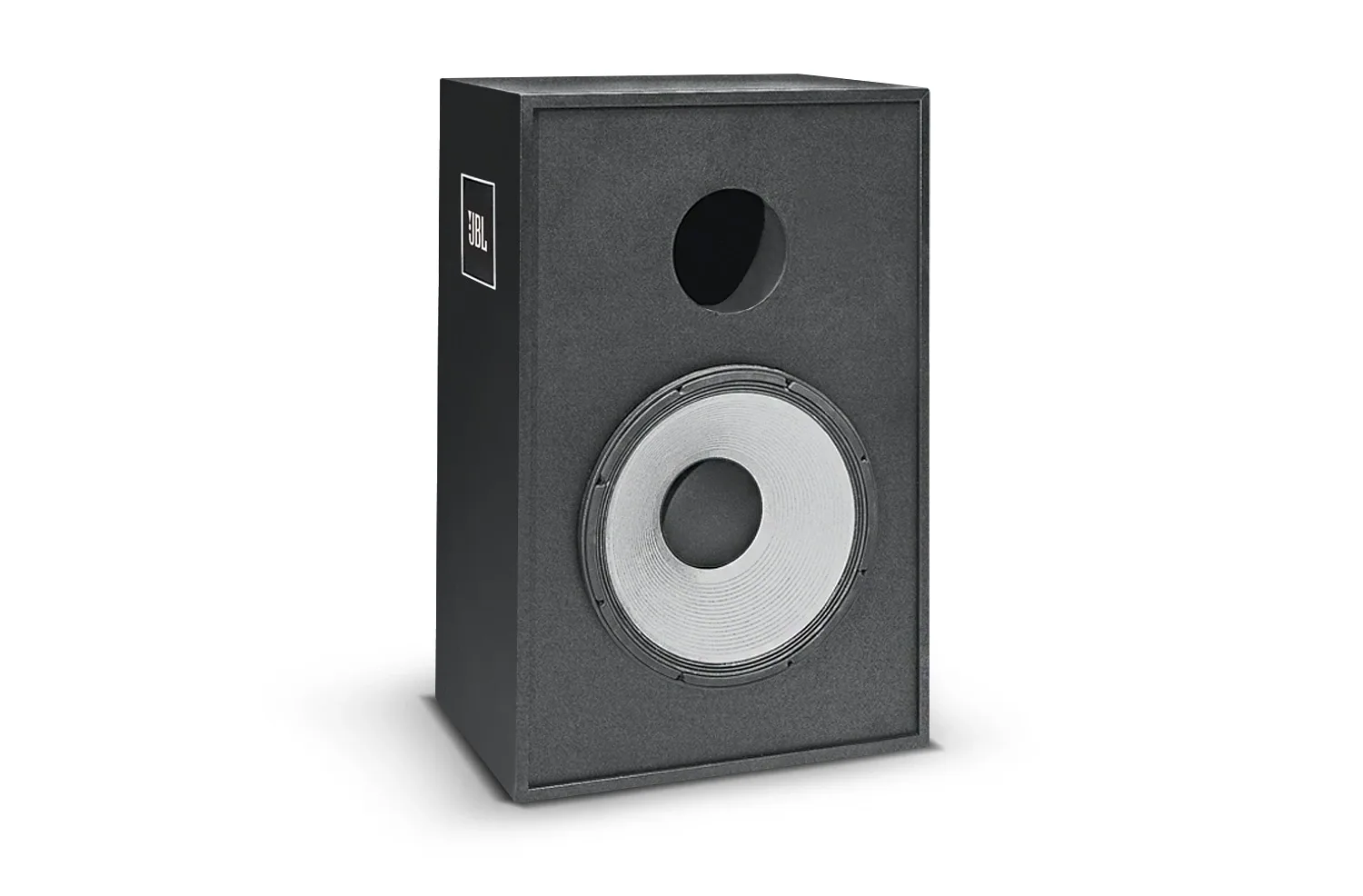

JBL 4641
