| Model | 104 |
|---|

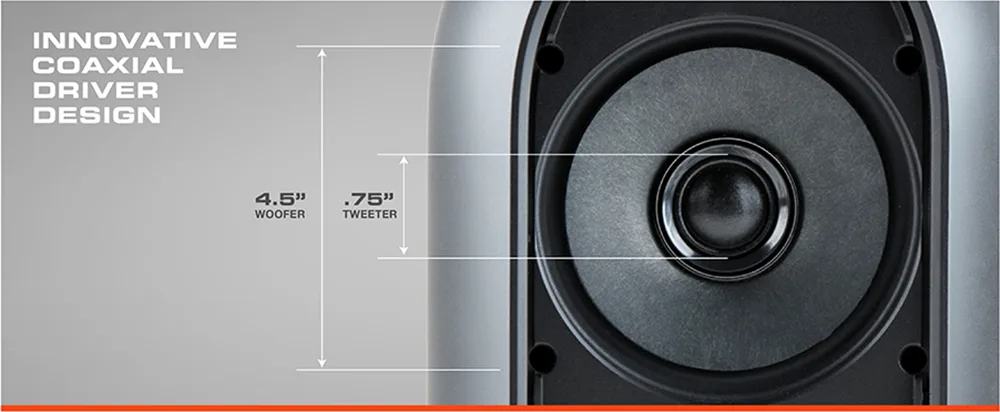

| LF Driver | 4.5 in (118 mm) |
|---|
| HF Driver | 0.75 in (19 mm), soft dome |
|---|
| Crossover | 1725 Hz, 1st order |
|---|
| Input Sensitivity | 87 dB / 1 m |
|---|
| Power Amp | 60 W (30 W each speaker), Class D |
|---|
| Maximum Continuous SPL @ 1 meter | 89 dB |
|---|
| Maximum Peak SPL | 102 dB |
|---|
| Maximum SPL (1m) | 104 dB (momentary peak) |
|---|
| MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu) | +6 dBV / +20.3 dBu |
|---|
| Frequency Response (±3 dB) | 60 Hz - 20 kHz |
|---|
| SYSTEM DISTORTION CRITERIA | <10% THD at maximum output with full compressor / limiter engagement |
|---|
| ELECTRICAL DISTORTION CRITERIA | <0.2%THD @ 1 kHz, 2.83 VRMS output; <1% THD @ 1 kHz, full rated output |
|---|
| Signal to Noise Ratio | 75 dBA (A-Weighted), 70 dBr (unweighted), relative to 2.83 VRMS output on HF |
|---|
| Coverage Angle | 120º x 120º |
|---|
| Dimensions (H x W x D) | 9.72 in x 6.02 in x 4.88 in (247 mm x 153 mm x 124 mm) |
|---|
| ENCLOSURE TYPE | Ported |
|---|
| Enclosure | ABS with metal grille |
|---|
| Enclosure Finish | Matte black acrylic paint |
|---|

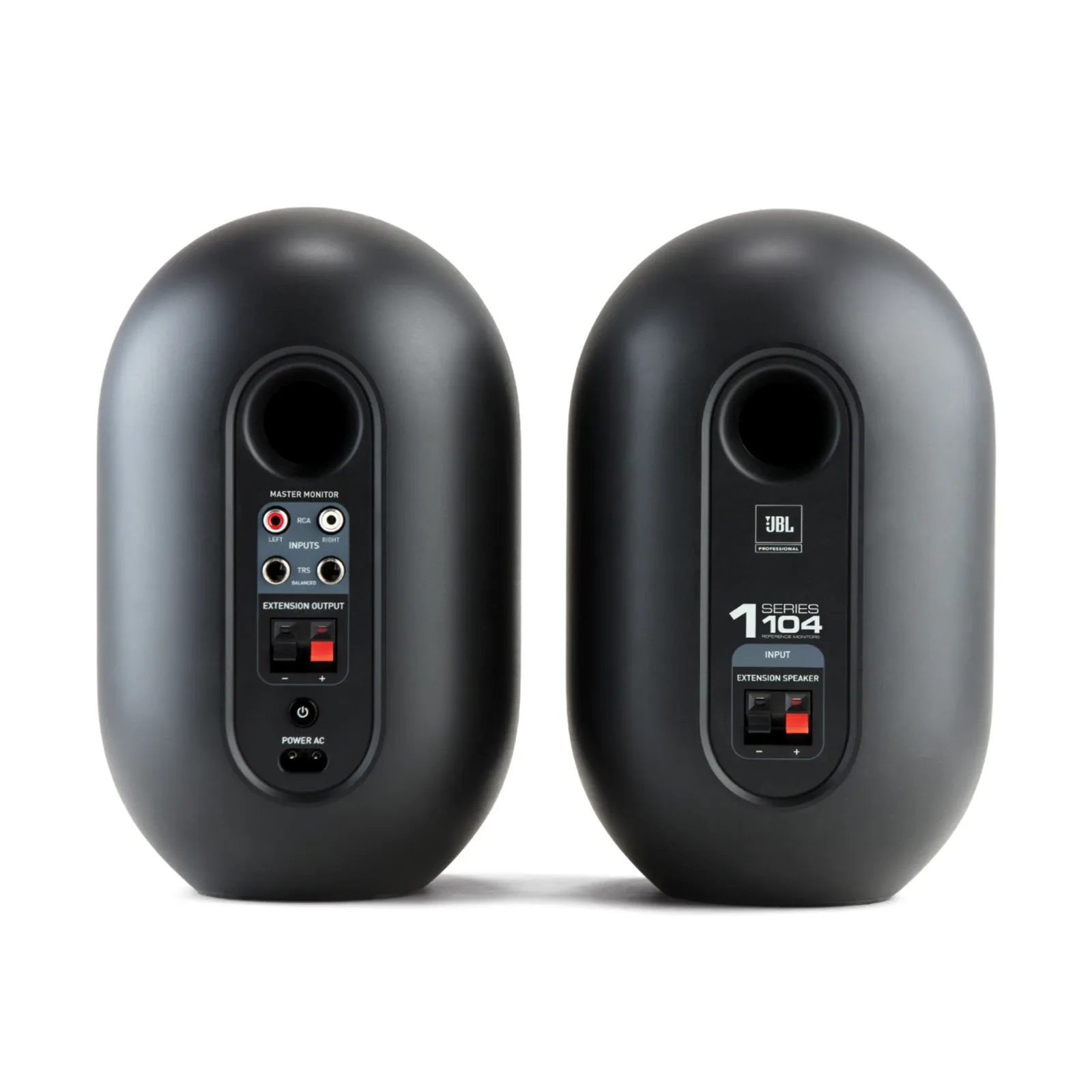

| Audio Output Connectors | 1 x 3.5 mm (1/8") stereo headphone with auto speaker mute |
|---|
| Input Connectors |
|---|
