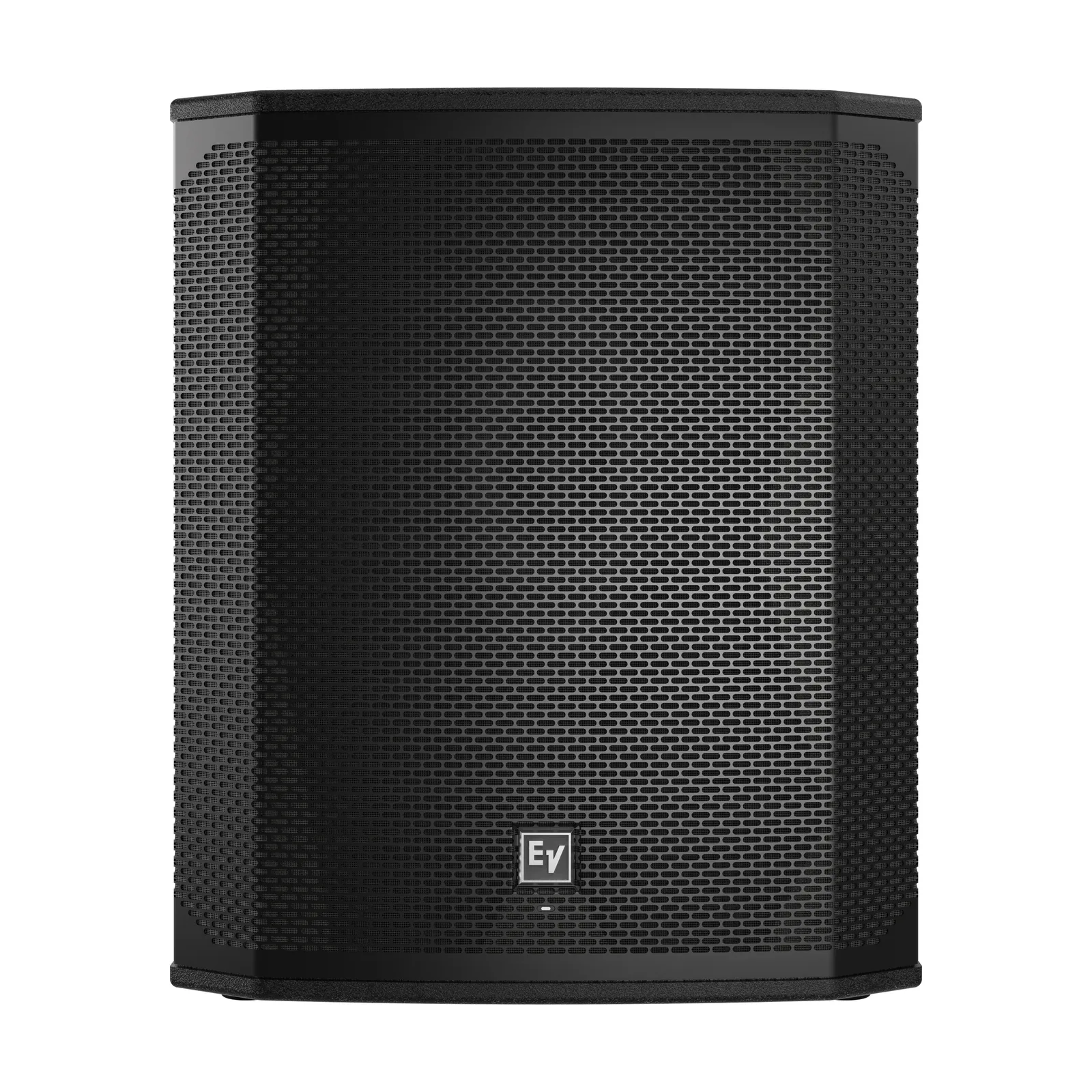

View larger image of Electro-Voice ELX200-18SP — front view
20 attributes
| Attribute | Value |
|---|---|
| Brand | Electro-Voice |
| Series | ELX200 |
| Model | ELX200-18SP |
| Material Number | Z.01X.000.115 |
| Max SPL | 132 dB |
| Frequency Response | 47 Hz - 105 Hz |
| Frequency Range (-10 dB) | 40 Hz - 145 Hz |
| LF transducer size (in) | EVS-18L 457 mm (18 in) |
| Element Type | EVS-18L 457 mm (18 in) |
| Power Handling | 1200 W |
| Power consumption (W) | 100 - 240 V~, 50 - 60 Hz, 1.2 - 0.6 A |
| Max Delay | Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz |
| Connectivity | (2) XLR/TRS combo jacks and (2) XLR link outputs |
| Color | Black or white |
| Enclosure | 15 mm plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Net weight | 29.0 kg (64 lb) |
| Shipping Weight | 33.1 kg (73.0 lb) |
| Dimensions (H x W x D) (mm) | 600 mm x 507 mm x 574 mm |
| Series / Family | ELX200 |
