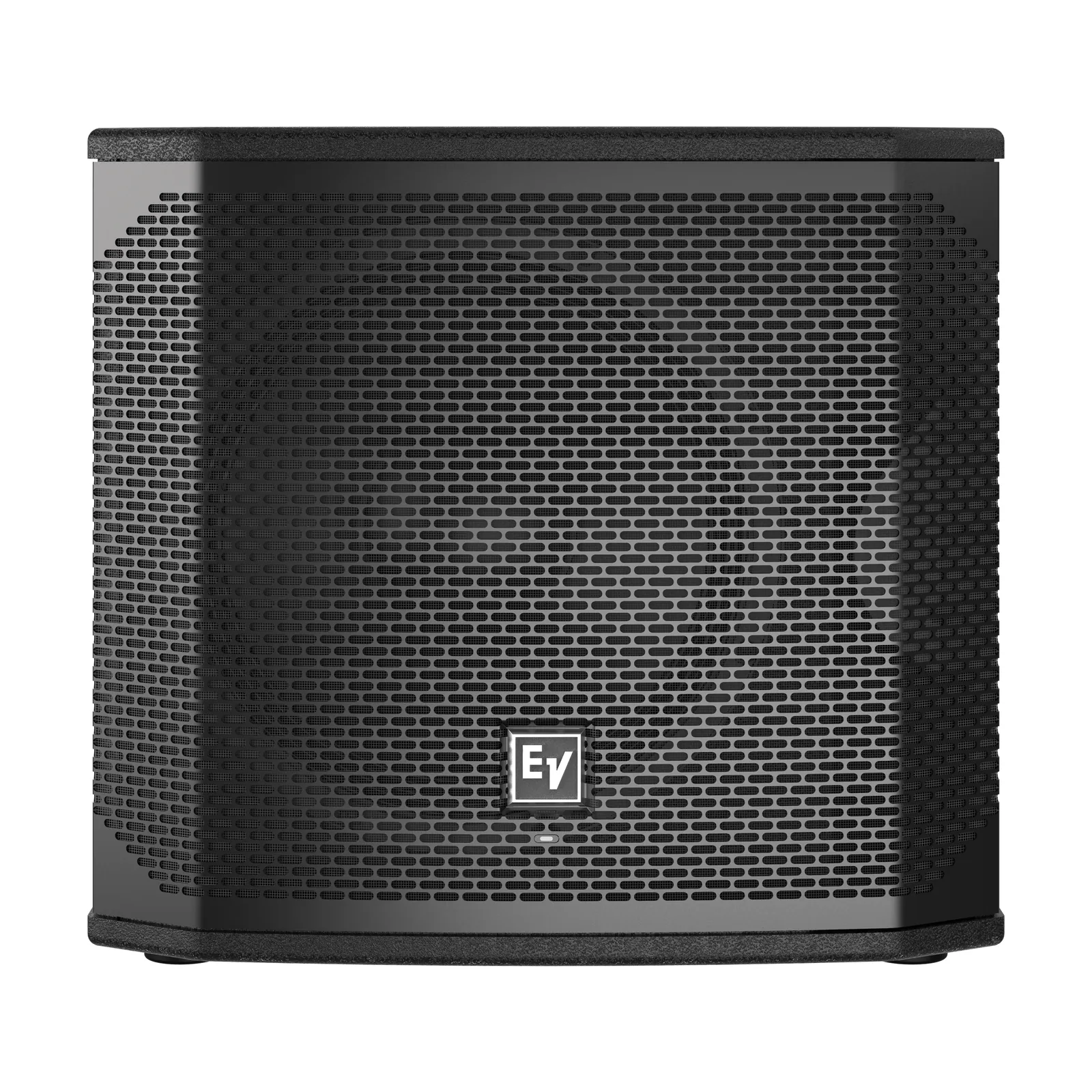

View larger image of Electro-Voice ELX200-12SP — front view
20 attributes
| Attribute | Value |
|---|---|
| Brand | Electro-Voice |
| Series | ELX200 |
| Model | ELX200-12SP |
| Material Number | Z.01X.000.114 |
| Max SPL | 129 dB |
| Frequency Response | 49 Hz - 135 Hz |
| Frequency Range (-10 dB) | 41 Hz - 165 Hz |
| LF transducer size (in) | EVS-12L 300 mm (12 in) |
| Element Type | EVS-12L 300 mm (12 in) |
| Power Handling | 1200 W |
| Power consumption (W) | 100 - 240 V~, 50 - 60 Hz, 1.2 - 0.6 A |
| Max Delay | Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz |
| Connectivity | (2) XLR/TRS combo jacks and (2) XLR link outputs |
| Color | Black or white |
| Enclosure | 15 mm plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Net weight | 19.1 kg (42.2 lb) |
| Shipping Weight | 22.3 kg (49.2 lb) |
| Dimensions (H x W x D) (mm) | 397 mm x 445 mm x 457 mm |
| Series / Family | ELX200 |
