Bose MB210-WR Passive Subwoofers

Bose Professional MB210-WR compact subwoofers are designed for outdoor installations of background/foreground music and small sound-reinforcement systems that require low-frequency extension down to 37 Hz. The MB210-WR subwoofer features two 10-inch high-excursion woofers, derived from the award-winning F1 subwoofer, in a compact, exterior-grade plywood enclosure optimized for outdoor, fixed-installation applications. Featuring outstanding performance to size ratio, the MB210-WR is designed to complement Bose Professional loudspeaker lines in outdoor applications — such as ArenaMatch Utility, Panaray, DesignMax, and Freespace — with additional bass impact.

Features

2 × 10-inch high-excursion woofers for high-output bass in a compact enclosure. Transducers derived from award-winning F1 portable, powered subwoofer.

500 W long-term power handling for high sound output and reliability

Low-frequency extension down to 37 Hz for impactful, deep-bass music reinforcement

123 dB maximum continuous SPL , 129 dB peak SPL

Exterior-grade plywood enclosure with compact size for installations

Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant coating on woofer cone, industrial polyurea exterior coating, and molded cover to protect inputs

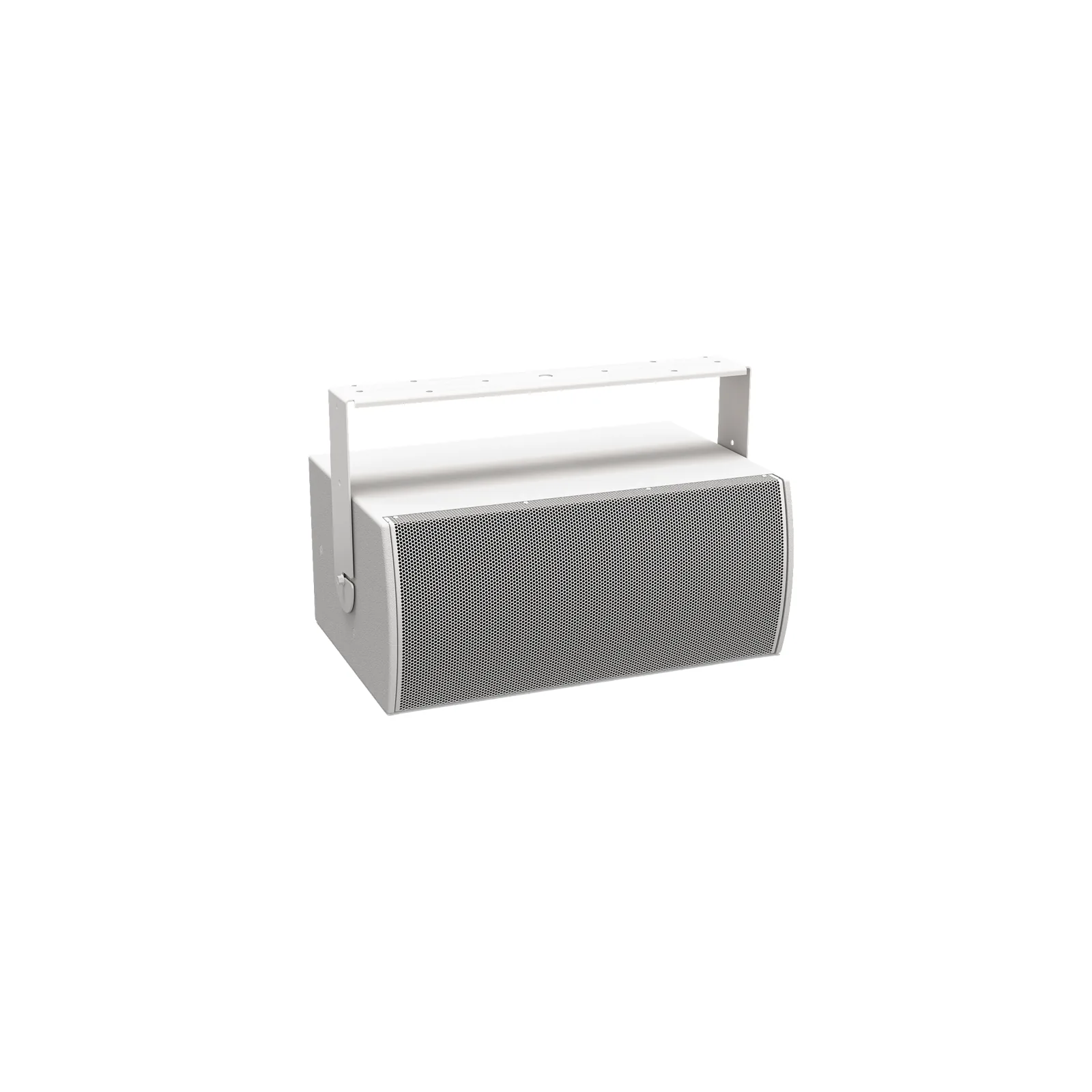

U-bracket included for easy mounting to walls or ceilings

Attribute

Value

Brand

Bose Professional

Series

Model

MB210-WR

EN 54-24 Certified

Colors

Black, white

Enclosure Material

Exterior-grade plywood

Environmental

Rated for direct-exposure outdoor installations (IEC 60529: IP55)

Grille

3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish

Ingress Protection

IP55

Suspension/Mounting

3 × M8 threaded inserts for U-bracket (per side)

Product Dimensions (H×W×D)

11.5 in × 26.0 in × 19.1 in (291 mm × 659 mm × 484 mm)

Net Weight

42.8 lb (19.4 kg)

Frequency Range (-10 dB)

37 Hz – 180 Hz

Coverage, Horizontal

Omnidirectional below 200 Hz

Calculated Maximum SPL @ 1 m

117 dB (free field), 123 dB (wall/ceiling) continuous / 123 dB (free field), 129 dB (wall/ceiling) peak

Nominal Impedance

8 Ω

Power Handling, long-term continuous

500 W

Power Handling, Peak

2000 W

Recommended Power Amplification

500 W – 2000 W

Sensitivity (SPL/1 W at 1 m)

90 dB (free field), 96 dB (wall/ceiling)

Coverage, Vertical
