Bose L1 Pro8 All-In-One Speakers

As the most portable L1 Pro system, the L1 Pro8 portable PA is ready whenever you are. With an 8-driver articulated C-shape line array, the L1 Pro8 delivers 180-degree horizontal sound coverage, making it an ideal companion for shows in small venues like coffee shops and cafes. An integrated subwoofer with a RaceTrack driver delivers powerful bass without the bulk; a built-in multi-channel mixer offers EQ, reverb, and phantom power, plus Bluetooth streaming and access to the full library of ToneMatch presets; and the intuitive Bose Music app, formerly known as the L1 Mix app places wireless control in your hands from your smartphone. It’s an ultra-portable system with a surprising size-to-performance ratio. The L1 Pro8 gives singer-songwriters and DJs both setup simplicity and supreme clarity — the power to sound your best and simply perform.

Features

Generous coverage: C-shaped line array featuring 8 articulated 2-inch neodymium drivers; 180-degree horizontal coverage with wide vertical dispersion, allowing your audience to hear clearly whether they are seated or standing, even off to the extreme sides in small to medium venues

Deliver premium full-range sound with consistent tonal balance for singer-songwriters, mobile DJs, and more

Maintain supreme vocal and instrument clarity with a C-shape extended-frequency line array featuring 8 articulated 2-inch neodymium drivers and wide 180-degree horizontal coverage

Bring more bass with less bulk with an integrated subwoofer featuring a 7 × 13-inch high-excursion RaceTrack driver; performance that rivals traditional round drivers with a smaller footprint

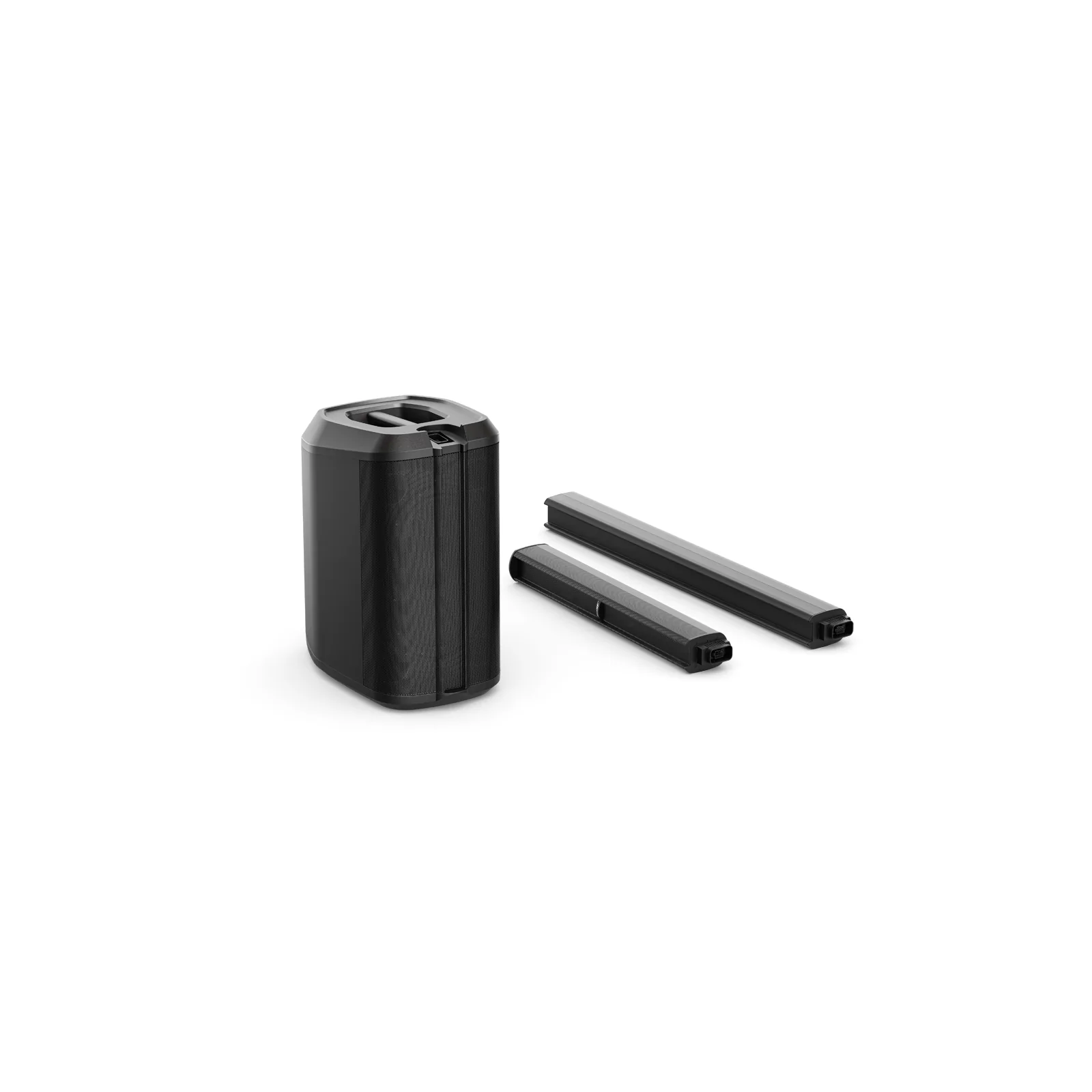

Go from vehicle to venue in one trip with a modular three-piece system that’s easier to pack, carry, and set up

Select between optimized system EQ presets for live music, recorded music, and more

Connect various audio sources easily via built-in mixer with two combo XLR-1/4-inch phantom-powered inputs, 1/4-inch and 1/8-inch (3.5 mm) aux input, plus Bluetooth streaming — and access system EQ and ToneMatch presets, volume, tone, and reverb via illuminated controls

Add in even more instruments and other audio sources via dedicated ToneMatch port; one cable provides both power and digital audio between the system and a Bose T4S or T8S mixer (optional)

Attribute

Value

Brand

Bose Professional

Series

L1 Pro

Model

L1 Pro8

Number of Channels

Power Class

Class D

Input Channels

Connectors

(1) XLR-1/4-in TRS combo, (1) 1/4-in TRS, (1) 1/8-in TRS, Bluetooth audio streaming

Sensitivity Options

-100 dB to +75 dB, XLR / -115 dB to +60 dB, TRS, input to driver / -105 dB to +50 dB, 3.5 mm / -115 dB to +40 dB, TRS, input to driver

Phantom Power

48 VDC, Channels 1 & 2

AC Power Connector

IEC

AC Power Input

100–240 VAC (±15%, 50/60 Hz)

Current Draw, Inrush

15.8 A at 120 VAC, 60 Hz / 30.1 A at 230 VAC, 50 Hz

Software Applications

Bose Music (Android, iOS)

Computer Interface Connection

USB Type-C

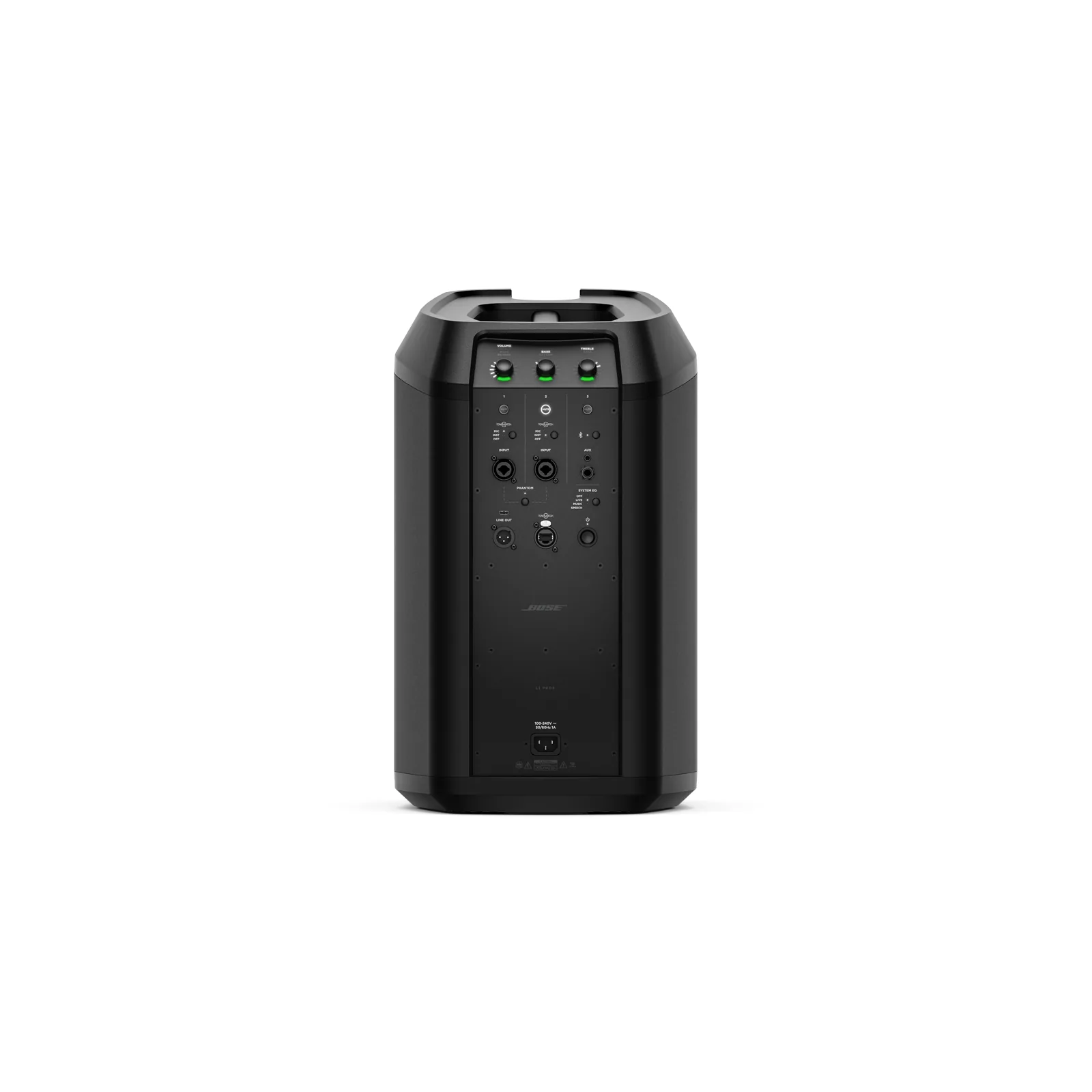

Controls, Rear Panel

3 digital rotary encoders

LED Status Indicators

(1) standby LED, (3) channel parameter LED rings, (3) signal/clip LEDs, (3) mute LEDs, (1) phantom power LED, (2) ToneMatch LEDs, (1) Bluetooth LED, (4) system EQ LEDs

DSP-Enabled

Yes

Presets

ToneMatch presets

Processing Functions

System EQ, reverb

Colors

Black

Enclosure Material

Power stand: High-impact polypropylene / Extension & Array: High-impact ABS
