Val Audio x-line 12 All-In-One Speakers

The VAL Audio X-Line12 all-in-one powered PA features an acoustically optimized column array featuring a 2-channel digital mixer, a full suite of professional DSP, class-leading au

Brand: Val AudioModel: x-line 12

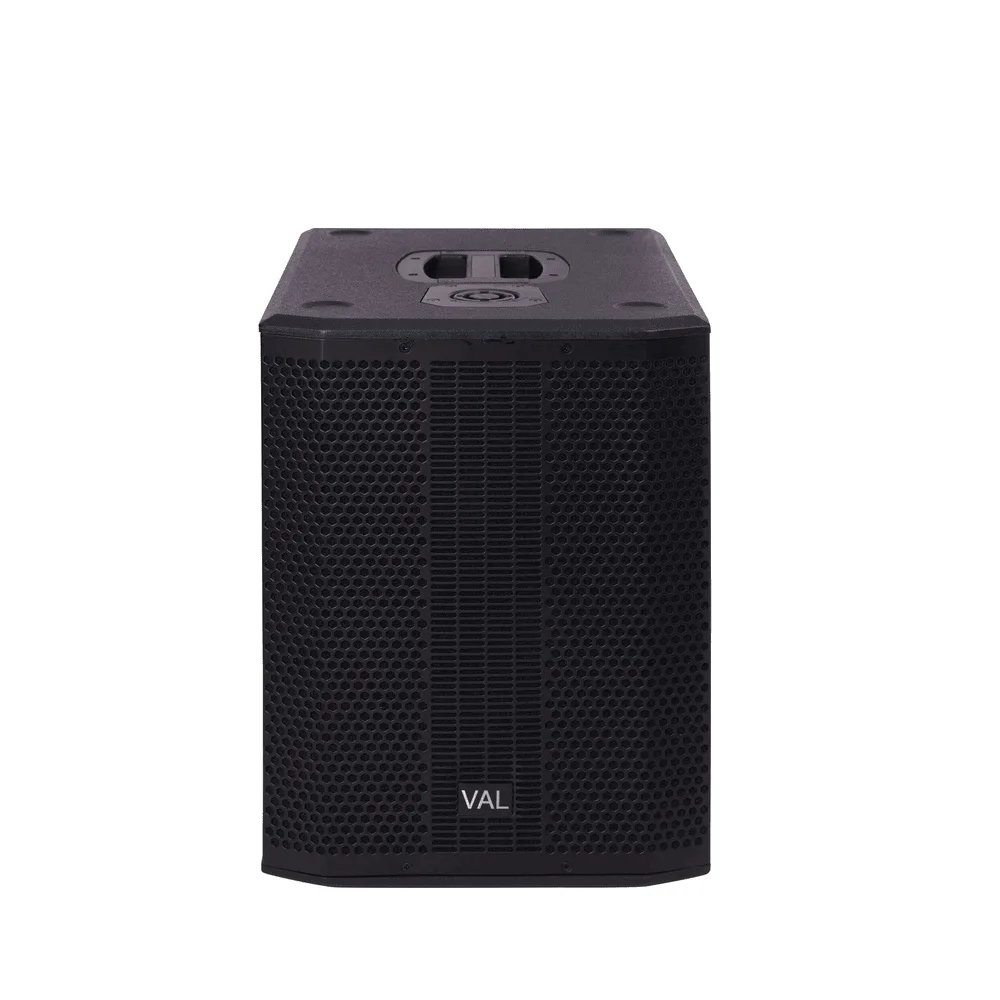

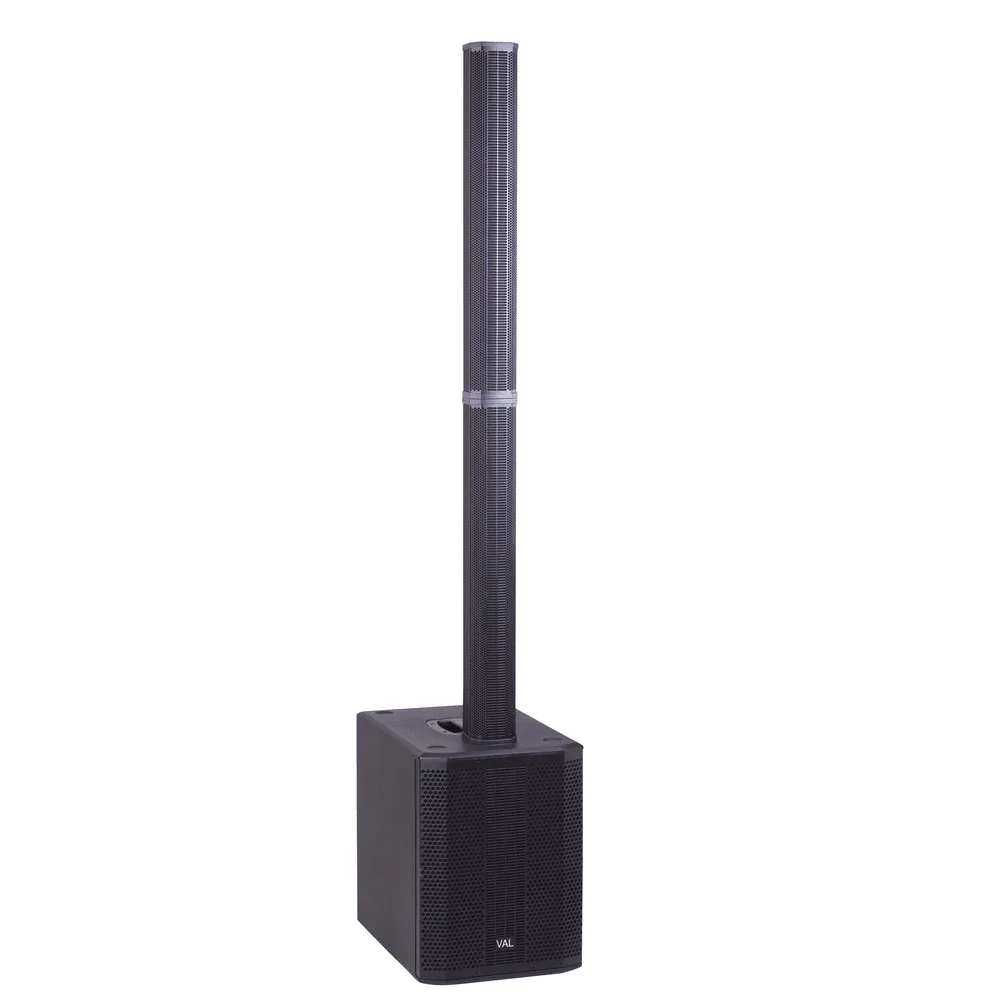

The VAL Audio X-Line12 all-in-one powered PA features an acoustically optimized column array featuring a 2-channel digital mixer, a full suite of professional DSP, class-leading audio connectivity and TWS Bluetooth functionality. Enjoy unmatched power, flexibility and performance in a sleek, compact package. The system consists of a plywood, ported, powered subwoofer enclosure featuring a DSP enhanced, Bi-amp class D amplifier that houses a high power, high excursion 12” subwoofer capable of frequency output down to 35Hz. The aluminum column is secured to the subwoofer via an aluminium spacer both featuring an unique and innovative insert and twist mechanism. The Subwoofer spacer and column are secured to each other via this unique locking mechanism and form a single system. The signal is internally routed to the components via the spacer which serves both for connectivity between the subwoofer and array as well as securing the two together completely eliminating any cables and mounting hardware. The column array consists of a lightweight aluminium enclosure housing six 3″ neodymium drivers and one 1” high frequency driver. Coupled with the 12″ subwoofer the system delivers a class leading 132dB max SPL. The seven drivers control high-frequencies with 120° of horizontal coverage and 40° of vertical coverage to ensure suitable output for all types of audiences and applications. The X-Line12 features a comprehensive and integrated DSP and processing engine. It features master level control, input 1 & 2 level monitoring, four fixed DSP presets (DJ, Live, Music, Speech), delay, EQ (high, mid, low), high pass and LCD contrast all via an intuitive single rotary switch with LCD display enabling easy visual monitoring and access. Further it features a 2-channel mixer with switchable mic/line and 3.5mm stereo inputs via XLR/TRS combo connectors with individual gain control for each channel. Channel 2 is equipped with a sophisticated Bluetooth input featuring TWS (True Wireless Stereo) enabling a wireless stereo setup. The mixer also features a Pre-DSP mix output to daisy chain multiple powered systems. Enjoy unmatched power and performance in a sleek, compact and lightweight package with fewer pieces of equipment using the X-Line12. Connect a microphone, instrument, mobile device and wireless rig using the simple I/Os and pro-grade XLR connectors and sophisticated in-built Bluetooth. X-Line12 is ideal for DJs, musicians, entertainment venues, corporate presenters, rental companies and houses of worship. It’s the perfect solution for anyone who demands best-in-class power, acoustic performance, control and connectivity in a stylish, full-featured column PA that’s ideal for both installed and portable applications.

Features

All-in-One System: Powered, portable column array with 2000W Peak / 1000W RMS Class D amplifier Optimized Design : Aluminum column with six 3” neodymium drivers and one 1” high-frequency driver, paired with a 12” subwoofer delivering frequencies down to 35Hz Exceptional Output: Class-leading 132dB max SPL and wide 120° (H) x 40° (V) dispersion for consistent audience coverage Comprehensive DSP:

Includes 4 presets, EQ controls, delay, high-pass filter, and master/input level monitoring via an intuitive LCD interface

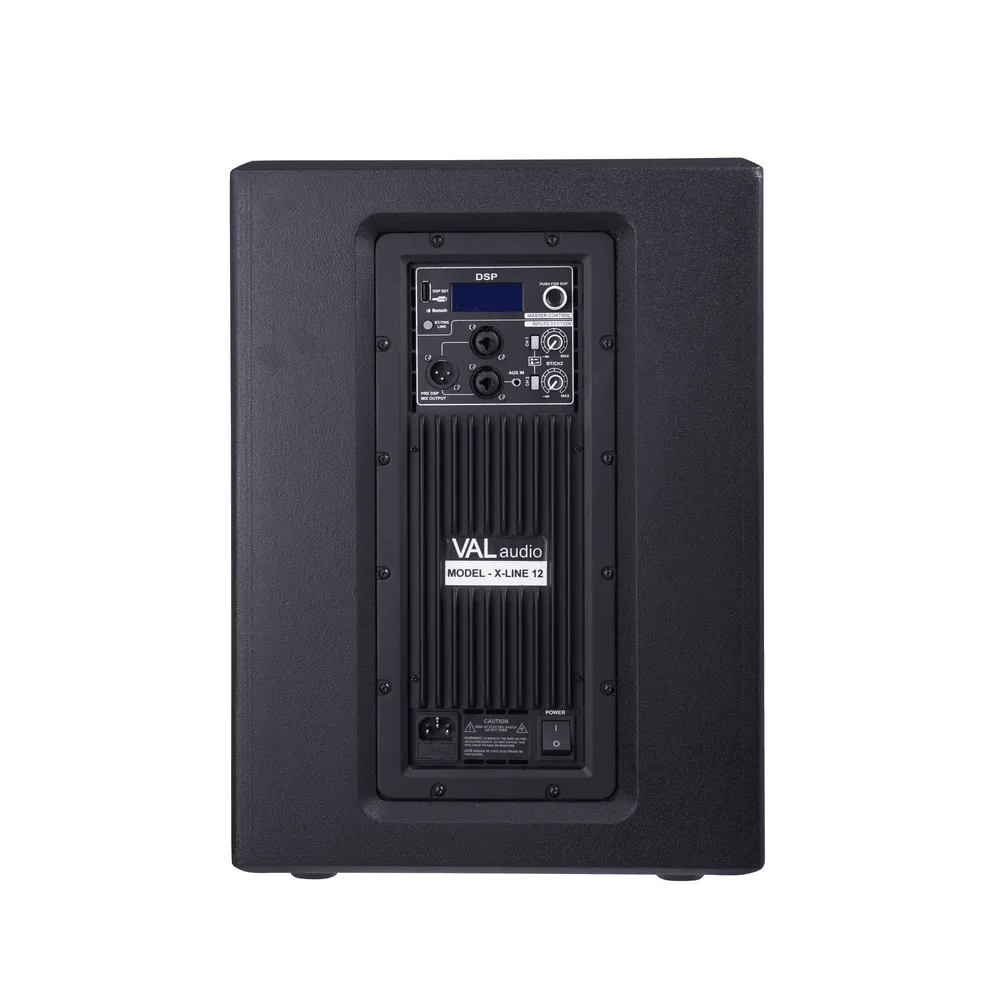

Integrated Mixer: 2-channel mixer with switchable mic/line inputs, Bluetooth with TWS, 3.5mm stereo input, and pre-DSP mix output Quick Setup:

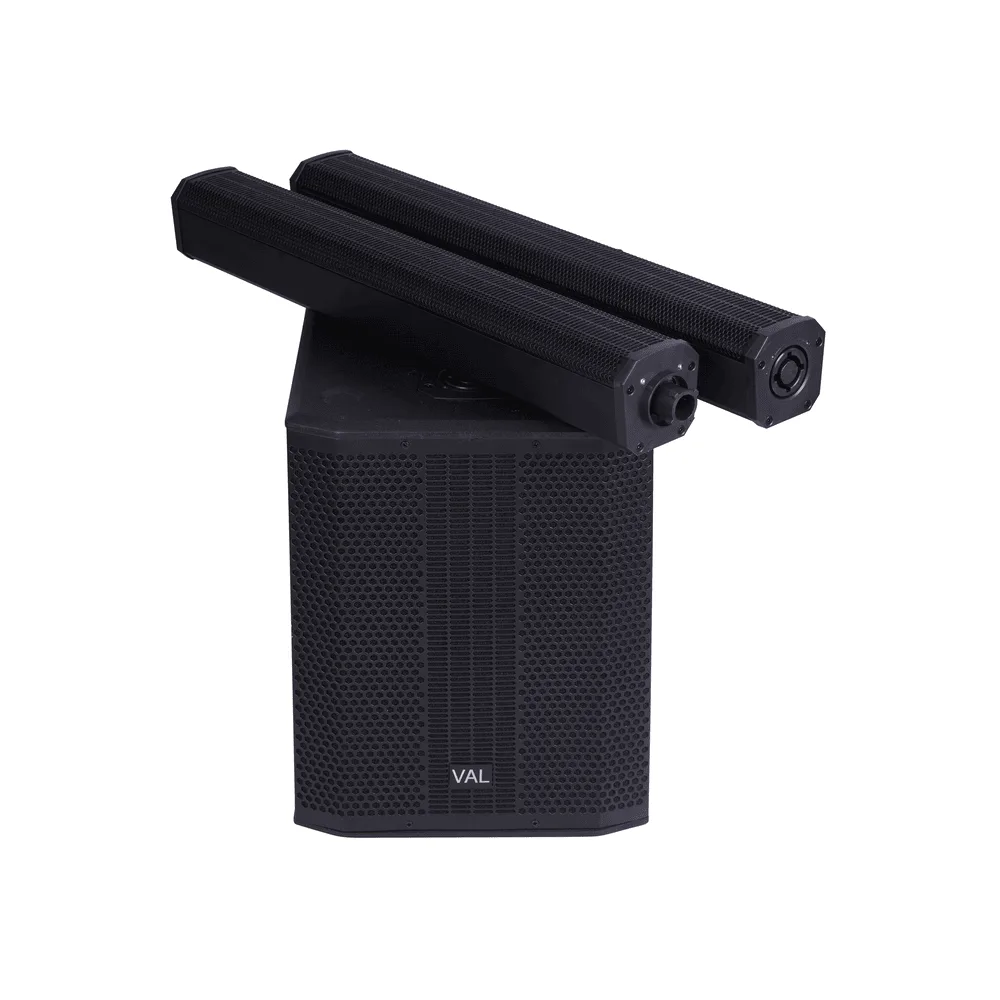

Unique “insert and twist” mechanism for cable-free assembly of the column and subwoofer Portable and

Lightweight: 26kg system with integrated handle for easy transport

Attribute

Value

Model

x-line 12

Components

6×3” neodymium drivers, 1×1” high frequency driver, 1×12” subwoofer

All-in-One System

Powered, portable column array with 2000W Peak / 1000W RMS Class D amplifier

Optimized Design

Aluminum column with six 3” neodymium drivers and one 1” high-frequency driver, paired with a 12” subwoofer delivering frequencies down to 35Hz

Exceptional Output

Class-leading 132dB max SPL and wide 120° (H) x 40° (V) dispersion for consistent audience coverage

Comprehensive DSP

Includes 4 presets, EQ controls, delay, high-pass filter, and master/input level monitoring via an intuitive LCD interface

Integrated Mixer

2-channel mixer with switchable mic/line inputs, Bluetooth with TWS, 3.5mm stereo input, and pre-DSP mix output

Quick Setup

Unique “insert and twist” mechanism for cable-free assembly of the column and subwoofer

Portable and Lightweight

26kg system with integrated handle for easy transport

System Type

Powered Column Speaker System

Frequency Response

35Hz – 20kHz

Maximum SPL

132 dB

Coverage (H x V)

120° x 40°

Power Amplifier

Class D, Bi-amp 2000W Peak / 1000W RMS power output

Integrated DSP

Master level controlFixed 4 Presets EQ – High, Mid, Low Delay High pass

Low Frequency driver

1 x 12’’ (2” VC)

High Frequency driver

6 x 3’’ Neodymium + 1” HF driver
