Bose L1 Pro32 All-In-One Speakers

The L1 Pro32 is our most advanced Bose L1 portable line array ever. It delivers the supreme clarity and output of a 32-driver articulated line array and 180-degree horizontal sound coverage, giving you an unrivaled portable PA system for medium-to-large-sized venues and events like weddings, clubs, and festivals. The L1 Pro32 combines with either the Bose Sub1 or Sub2 subwoofer to create a powerful, modular solution that’s easy to pack, carry, and set up. A built-in multi-channel mixer offers EQ, reverb, and phantom power, plus Bluetooth streaming and access to the full library of ToneMatch presets — and the intuitive Bose Music app, formerly known as the L1 Mix app, places wireless control in your hands from your smartphone. For DJs, singer-songwriters, bands — and your audience — the L1 Pro32 offers a truly superior experience. It gives you the power to sound your best and simply perform.

Features

Uniform coverage: Straight line array, featuring 32 articulated 2-inch neodymium drivers; 180-degree horizontal coverage with the most focused vertical coverage pattern and highest SPL over distance in an L1 ever — providing intricate sonic detail, clarity, and consistency, even off to the extreme sides in larger venues

Deliver premium full-range sound with consistent tonal balance for singer-songwriters, mobile DJs, bands, and more

Maintain supreme vocal and instrument clarity with a straight-shape extended-frequency line array featuring 32 articulated 2-inch neodymium drivers and wide 180-degree horizontal coverage

Less dropoff over distance

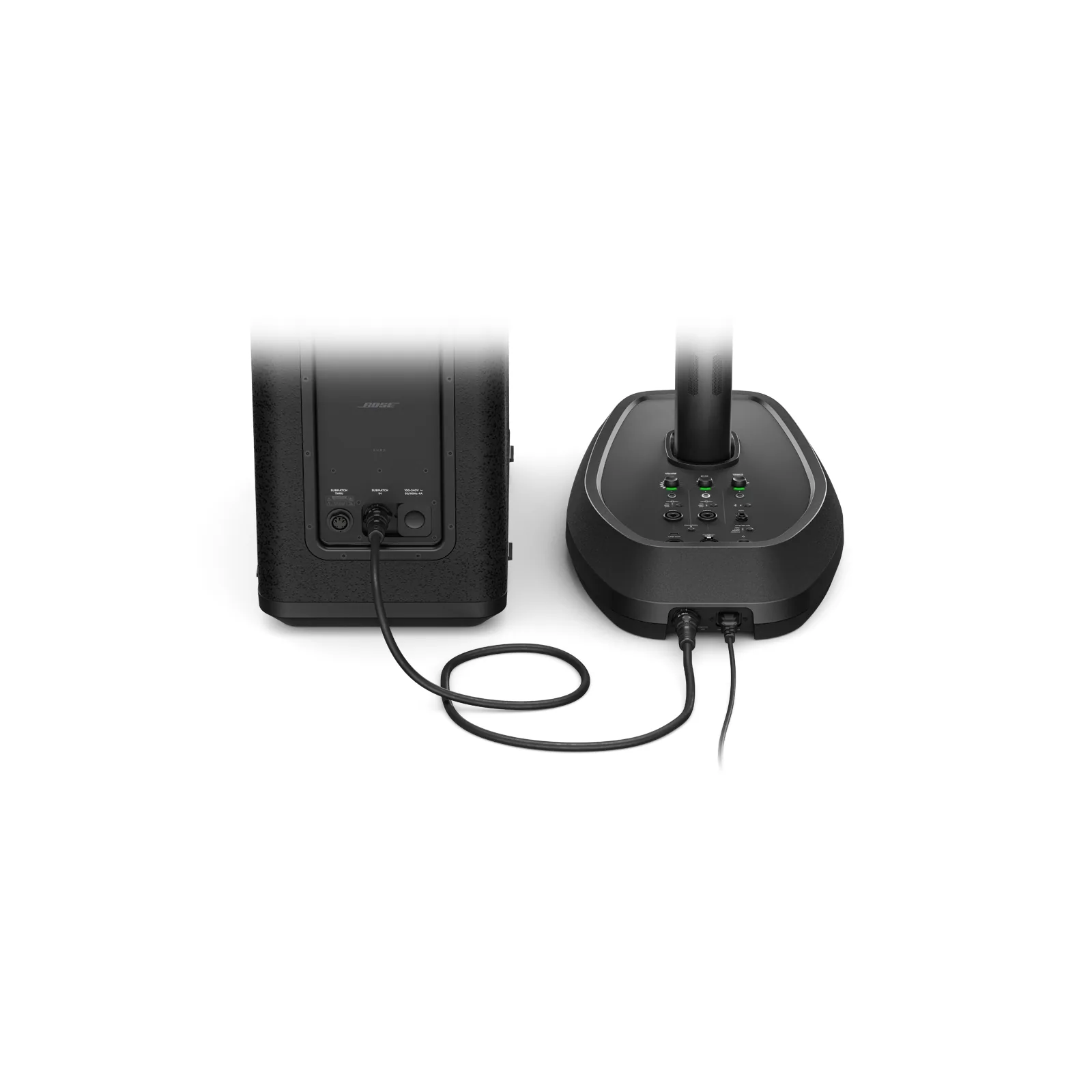

Bring bass without the bulk via Bose Sub1 or Sub2 modular subwoofers, featuring RaceTrack drivers that take up less space, freeing up room in your vehicle and on the stage

Go from vehicle to venue easily with a modular high-output system that’s lighter and easier to pack, carry, and set up

Select between optimized system EQ presets for live music, recorded music, and more

Connect various audio sources easily via built-in mixer with two combo XLR-1/4-inch; phantom-powered inputs, 1/4-inch and 1/8-inch (3.5 mm) aux input, plus Bluetooth streaming — and access system EQ and ToneMatch presets, volume, tone, and reverb via illuminated controls

Add even more instruments and other audio sources via dedicated ToneMatch port; one cable provides both power and digital audio between system and a Bose T4S or T8S mixer (optional)

Attribute

Value

Brand

Bose Professional

Series

L1 Pro

Model

L1 Pro32

Number of Channels

Power Class

Class D

Input Channels

Connectors

(1) XLR-1/4-in TRS combo, (1) 1/4-in TRS, (1) 1/8-in TRS, Bluetooth audio streaming

Sensitivity Options

-100 dB to +75 dB, XLR / -115 dB to +60 dB, TRS, input to driver

Phantom Power

48 VDC, Channels 1 & 2

Safety

UL/IEC/EN62368-1 Audio/Video, Information and Communication Technology Equipment

AC Power Connector

IEC, SubMatch

AC Power Input

100–240 VAC (±15%, 50/60 Hz)

Current Draw, Inrush

15.3 A at 120 VAC, 60 Hz / 29.0 A at 230 VAC, 50 Hz

Software Applications

Bose Music (Android, iOS)

Computer Interface Connection

USB Type-C

Controls, Rear Panel

3 digital rotary encoders

LED Status Indicators

(1) standby LED, (3) channel parameter LED rings, (3) signal/clip LEDs, (3) mute LEDs, (1) phantom power LED, (2) ToneMatch LEDs, (1) Bluetooth LED, (4) system EQ LEDs

DSP-Enabled

Yes

Presets

ToneMatch presets

Processing Functions

System EQ, reverb

Colors

Black
