Bose L1 Pro16 All-In-One Speakers

A balance of power and portability, the L1 Pro16 portable line array is a streamlined system with high output and extended low frequency range.

A balance of power and portability, the L1 Pro16 portable line array is a streamlined system with high output and extended low frequency range. With a 16-driver articulated J-shape line array, the L1 Pro16 delivers 180-degree horizontal sound coverage, great for small-to-medium sized clubs, bars, and other venues. An integrated subwoofer with a RaceTrack driver delivers powerful bass without the bulk; a built-in multi-channel mixer offers EQ, reverb, and phantom power, plus Bluetooth streaming and access to the full library of ToneMatch presets; and the intuitive Bose Music app, formerly known as the L1 Mix app, places wireless control in your hands from your smartphone. For DJs, singer-songwriters, and small ensembles, the L1 Pro16 gives you expanded bandwidth and supreme clarity — the power to sound your best and simply perform.

Features

J-shaped line array featuring 16 articulated 2-inch neodymium drivers ; 180-degree horizontal coverage, tight vertical control on top, wide dispersion on the bottom to cover audiences whether set up on the floor or an elevated stage, even off to the extreme sides in medium to large venues

Deliver premium full-range sound with consistent tonal balance for singer-songwriters, mobile DJs, small ensembles, and more

Maintain supreme vocal and instrument clarity with a J-shape extended-frequency line array featuring 16 articulated 2-inch neodymium drivers and wide 180-degree horizontal coverage

Bring more bass with less bulk with an integrated 10 × 18-inch high-excursion neodymium RaceTrack woofer; performance that rivals traditional round drivers with a smaller footprint

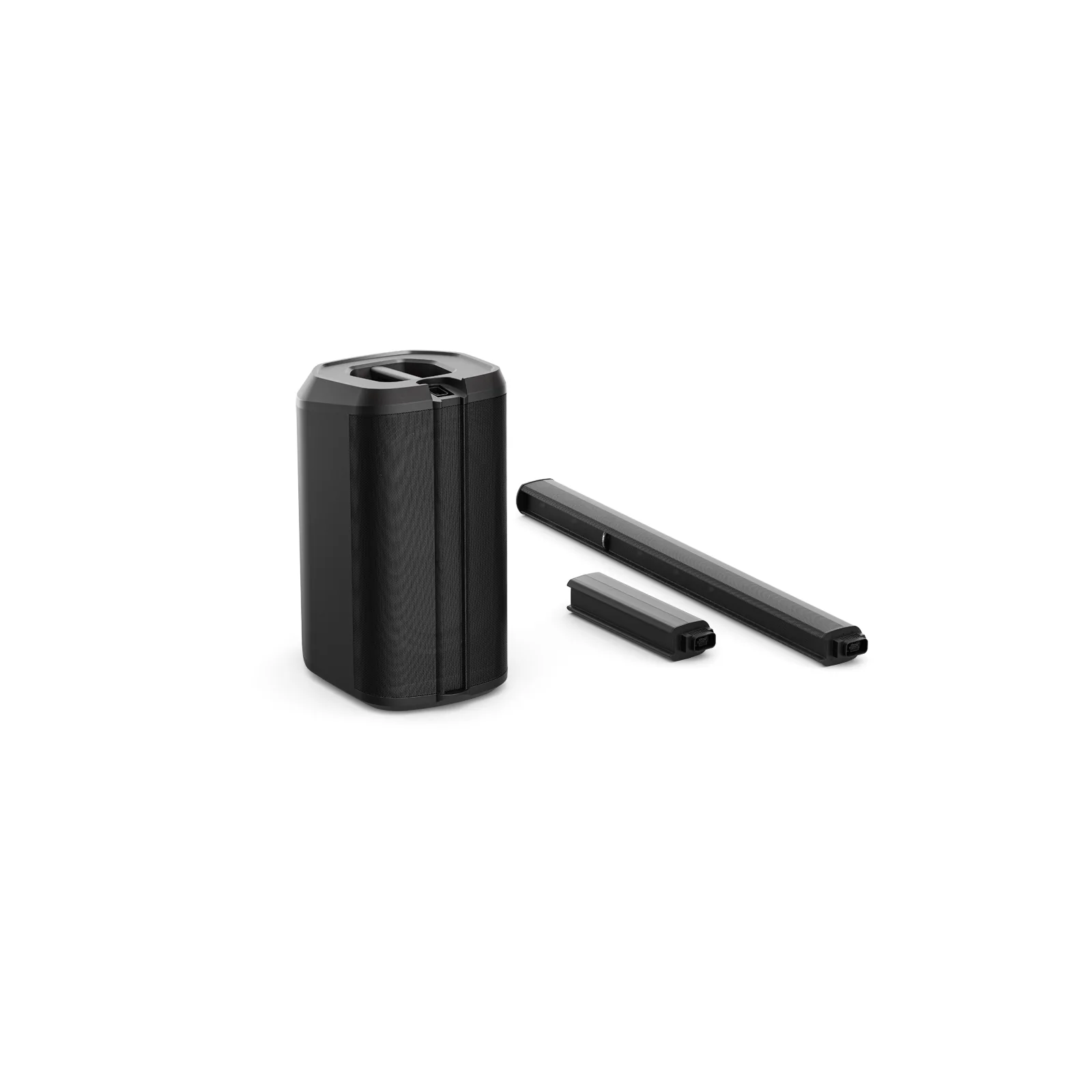

Go from vehicle to venue easily with a modular three-piece system that’s easier to pack, carry, and set up

Select between optimized system EQ presets for live music, recorded music, and more

Connect various audio sources easily via built-in mixer with two combo XLR-1/4-inch; phantom-powered inputs, 1/4-inch and 1/8-inch (3.5 mm) aux input, plus Bluetooth streaming — and access system EQ and ToneMatch presets, volume, tone, and reverb via illuminated controls

Add in even more instruments and other audio sources via dedicated ToneMatch port; one cable provides both power and digital audio between the system and a Bose T4S or T8S mixer (optional)

Attribute

Value

Brand

Bose Professional

Series

L1 Pro

Model

L1 Pro16

Number of Channels

Power Class

Class D

Input Channels

Connectors

(1) XLR-1/4-in TRS combo, (1) 1/4-in TRS, (1) 1/8-in TRS, Bluetooth audio streaming

Sensitivity Options

-100 dB to +75 dB, XLR / -115 dB to +60 dB, TRS, input to driver

Phantom Power

48 VDC, Channels 1 & 2

Safety

UL/IEC/EN62368-1 Audio/Video, Information and Communication Technology Equipment

AC Power Connector

IEC

AC Power Input

100–240 VAC (±15%, 50/60 Hz)

Current Draw, Inrush

15.7 A at 120 VAC, 60 Hz / 28.4 A at 230 VAC, 50 Hz

Software Applications

Bose Music (Android, iOS)

Computer Interface Connection

USB Type-C

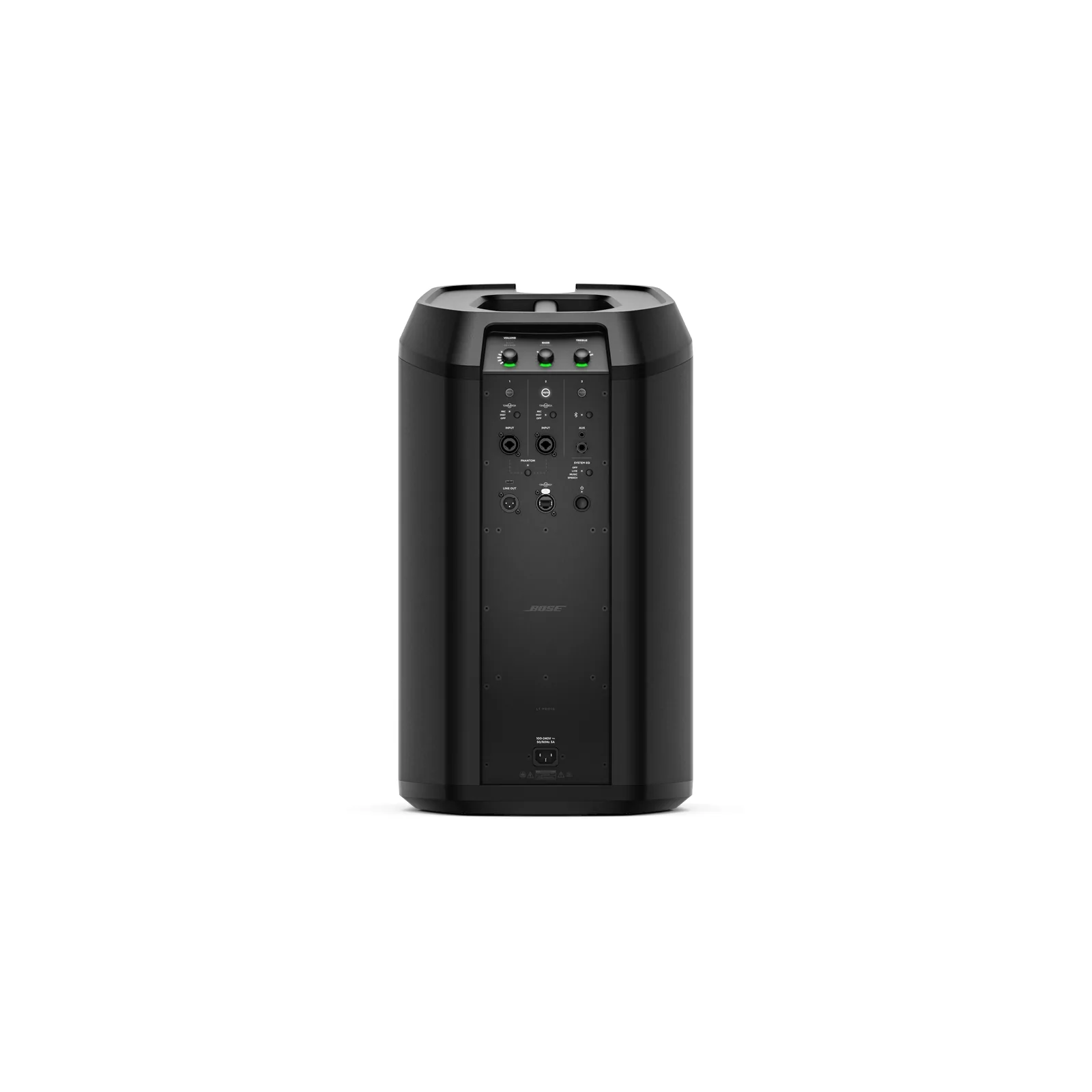

Controls, Rear Panel

3 digital rotary encoders

LED Status Indicators

(1) standby LED, (3) channel parameter LED rings, (3) signal/clip LEDs, (3) mute LEDs, (1) phantom power LED, (2) ToneMatch LEDs, (1) Bluetooth LED, (4) system EQ LEDs

DSP-Enabled

Yes

Presets

ToneMatch presets

Processing Functions

System EQ, reverb

Colors

Black

Enclosure Material

Features

Specifications
