Bose EM90-LP Ceiling Speakers

Overview Surface-mount performance sound meets stealth-mode design. EdgeMax loudspeakers combine bold surface-mount performance with stealthy design to shatter the limitations of traditional in-ceiling loudspeakers. Patented PhaseGuide technology enables EdgeMax loudspeakers to project powerful, focused sound asymmetrically from the room’s edges to the center. New EdgeMax LP models feature an 80-degree vertical coverage angle for use in rooms with lower ceilings, and their shallow 4-inch backcan is ideal for spaces with above-ceiling limitations and tighter clearances. Larger rooms with higher SPL needs benefit from the powerful, deeper 9-inch cans and 75-degree vertical coverage of the original EdgeMax models. EdgeMax models are purpose-built to provide specific horizontal coverage. The EM90-LP’s 90-degree horizontal coverage angle is optimized for corner placement, with wall-boundary loading providing extended bass impact. Integrators can “mix and match” original EdgeMax and new LP loudspeakers, particularly in challenging installations with varying space dimensions and above-ceiling obstructions.

Features

Patented PhaseGuide technology distributes sound asymmetrically throughout the space to ensure all listeners enjoy the same experience—regardless of their location

In-ceiling installation for minimum visual impact, with fewer units required to deliver uniform sound

High-frequency compression driver and high-excursion woofer for exceptional audio quality and power

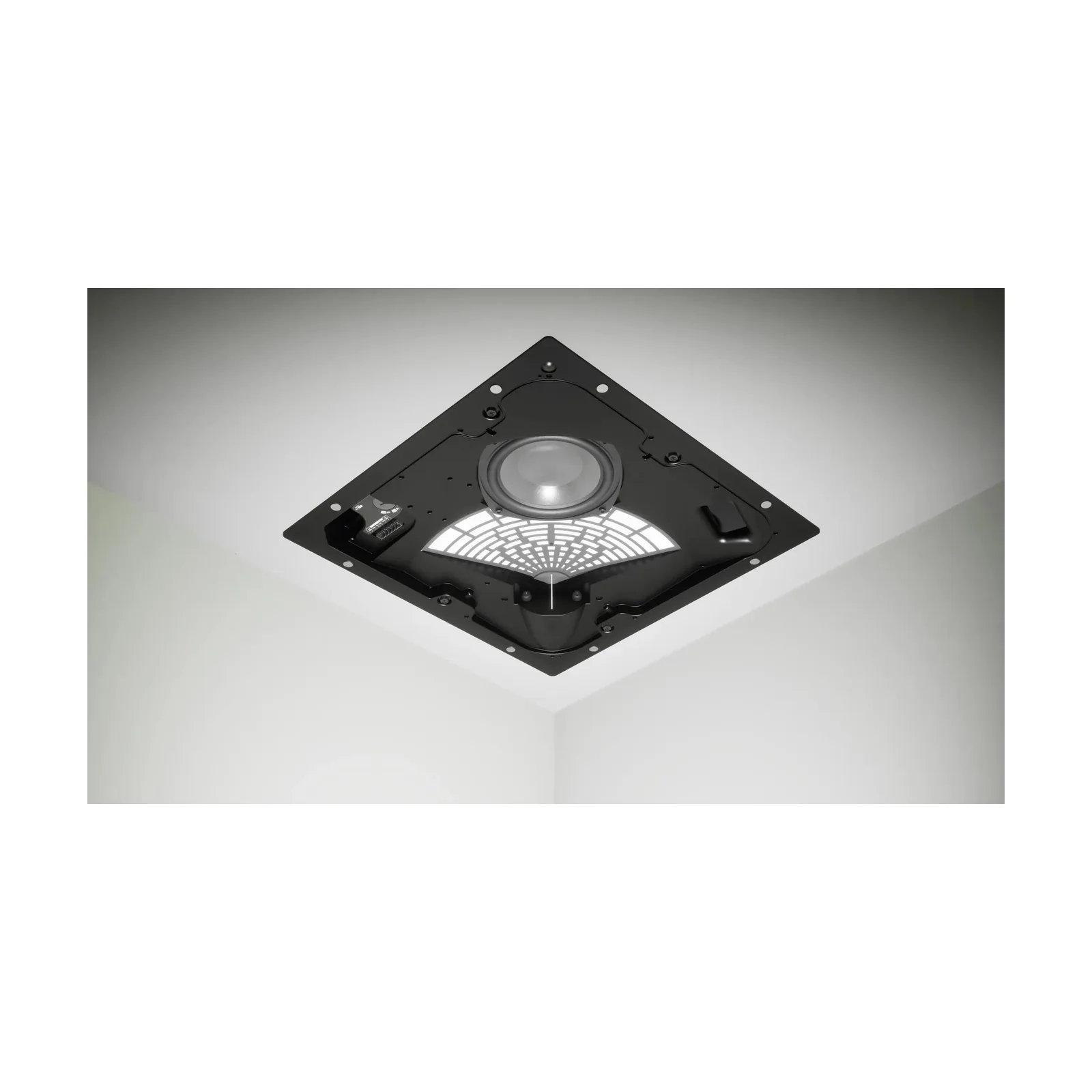

In-ceiling mounting along room edges and corners ; purpose-built for specific horizontal coverage—90 degrees for corner placement or a wider 180 degrees—ideal for near-field and wide coverage

Wall-boundary loading for greater bass response and performance

2-way passive crossover with bypassable 70/100V transformer

Consistent voicing across the EdgeMax family

QuickHold spring-loaded mounting system for easy installs

Magnetically attached grille for quick access to wiring and tap settings

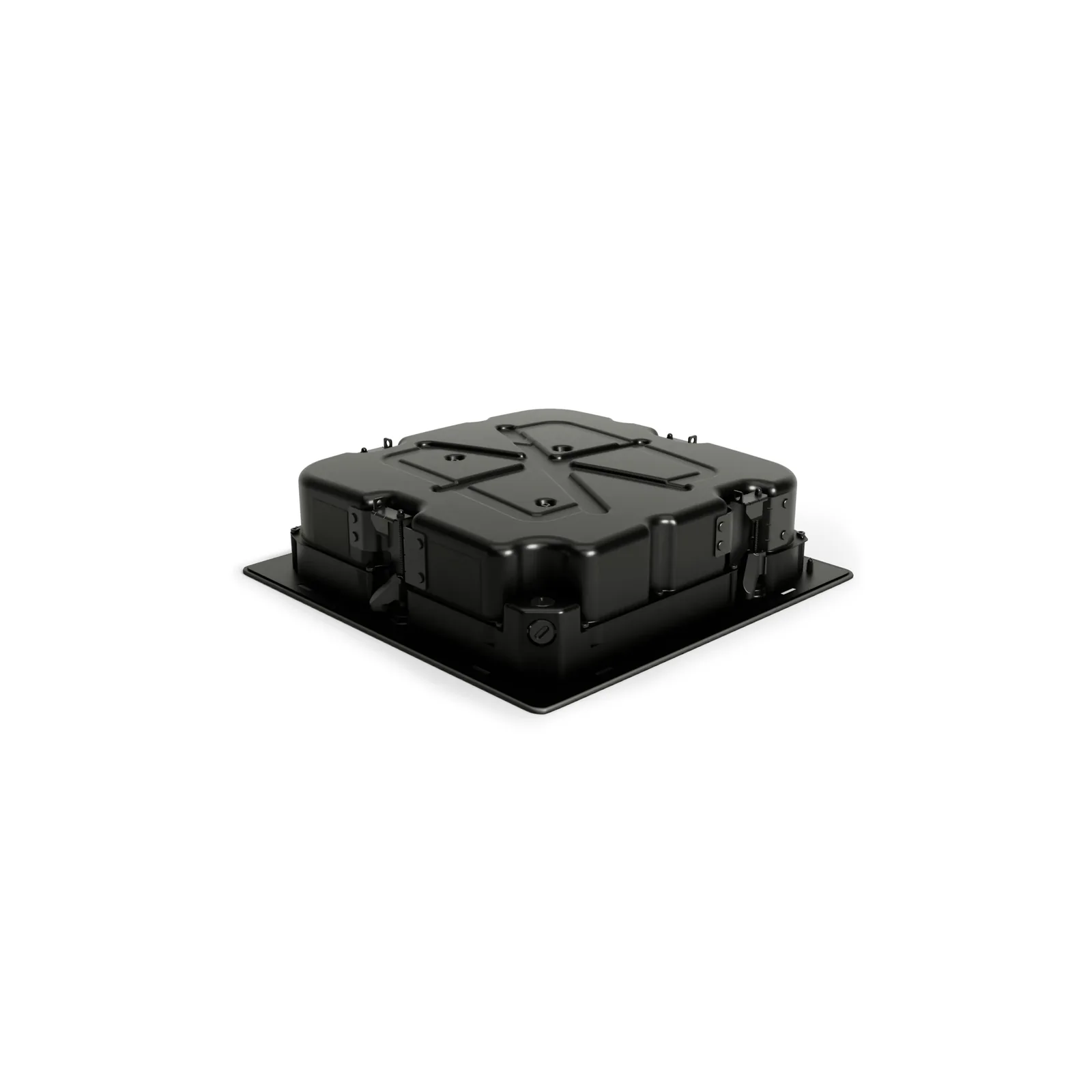

Shallow 4-inch (10 cm) backcan height for rooms with above-ceiling limitations and tighter clearances

80-degree vertical coverage angle for use in rooms with lower ceilings

UL 1480A and UL 2043 safety standard compliance

Attribute

Value

Brand

Bose Professional

Series

EdgeMax

Model

EM90-LP

Safety Agency Ratings

UL 1480A, UL 2043

Colors

White (similar to RAL 9003), paintable

Enclosure Material

Engineered-plastics front baffle with integrated steel-formed enclosure

Environmental

Indoor only

Grille

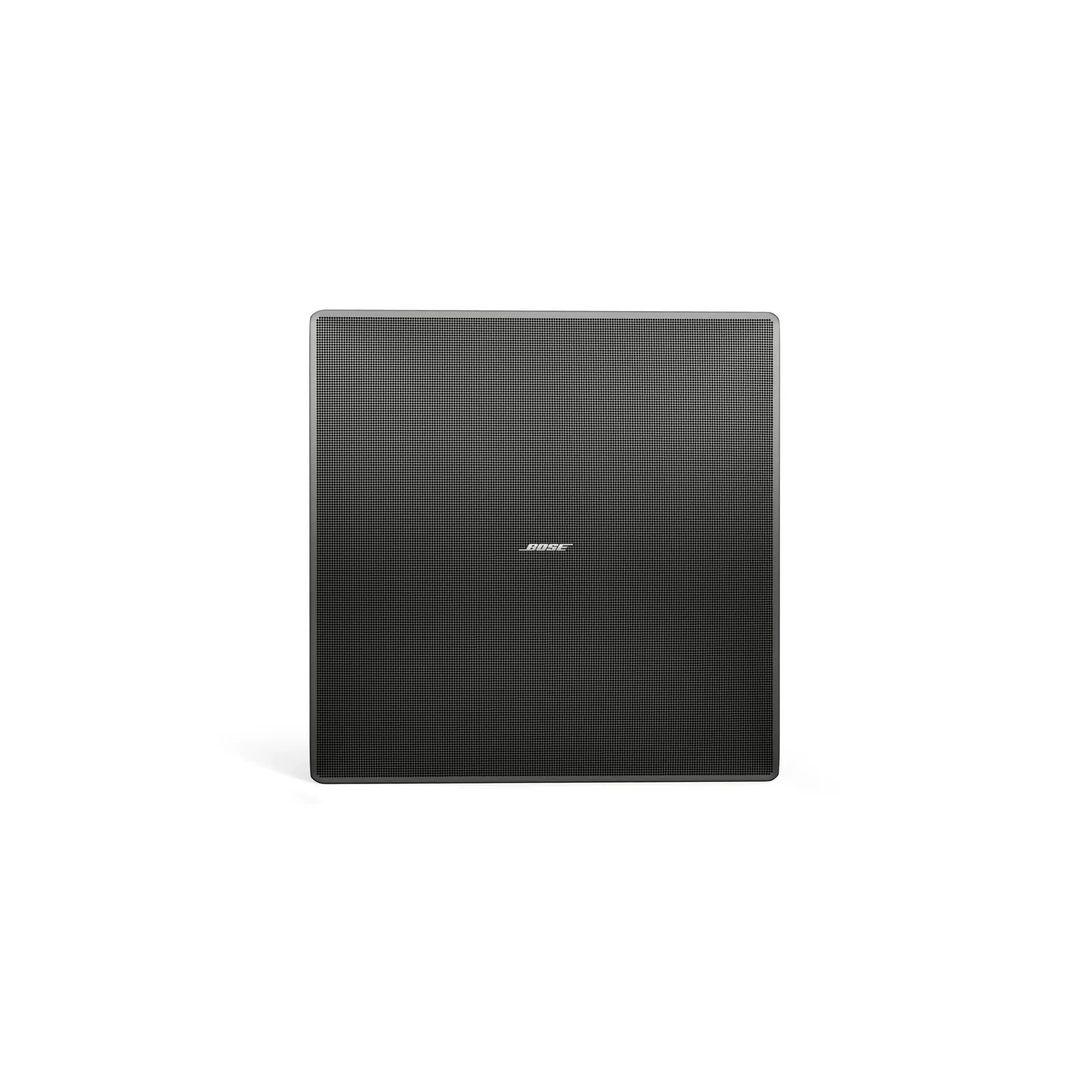

Microperforated steel, powder-coated finish, paintable

Ceiling Cutout

345 × 345 × 100 mm (13.6 × 13.6 × 4.0 in), length × width × mounting depth

Suspension/Mounting

(4) Quickhold spring-loaded mounting arms, (4) safety cable attachment points

Product Dimensions (H×W×D)

339 mm × 339 mm × 100 mm (13.4 in × 13.4 in × 3.9 in) enclosure / 390 mm × 390 mm × 13 mm (15.4 in × 15.4 in × 0.5 in) grille flange

Net Weight

16.6 lb (7.5 kg), loudspeaker with grille (single)

Shipping Weight

11.0 kg (24.3 lb)

Frequency Range (-10 dB)

45 Hz – 19,000 Hz

Coverage, Horizontal

90°

Calculated Maximum SPL @ 1 m

110 dB continuous, 116 dB peak

Nominal Impedance

8 Ω (transformer bypassed)

Power Handling, long-term continuous

32W

Power Handling, Peak

128W

Recommended Signal Processing

Recommended but not required
