Val Audio V35 Amplifiers

The VAL audio V35 of amplifiers represents a new age of Digital amplification. These class D Digital amplifiers designed for both Touring and fixed install applications feature the

Brand: Val AudioModel: V35

The VAL audio V35 of amplifiers represents a new age of Digital amplification. These class D Digital amplifiers designed for both Touring and fixed install applications feature the latest Digital Technology for amplifiers. Featuring highly efficient class D circuitry these 1U and light weight amplifiers weighing just 3.6kg (net) offer very high poer output. The V35 is 2 x 3500W at 4 ohms, EIA continuous outputs and not burst ratings. In-spite of these high power outputs and the 1U design the V35 runs extremely cool. This is due to our unique design and electric energy efficiency of > 85%. This can only be accomplished when only no compromise and best quality components are used. The VAL audio V35 of amplifiers only consume 20W of power at idle, again a testimony to our design and quality. Our amplifiers feature comprehensive protection circuitry soft start, high frequency, DC, short circuit, overload, clip/limit and over heat protection. The V35 is designed as per the highest standards and will offer you many years of trouble free operation.

Features

Designed for both Touring and Fixed Installations

Highly efficient Class D Technology

Unique 1U extremely compact design

High current SMPS power supply with active PFC correction

Extreme light weight just 3.6kg

Very High Power output – 5000W EIA combined output High damping factor >1000

Low idle power consumption, only 20W

Only highest quality components used

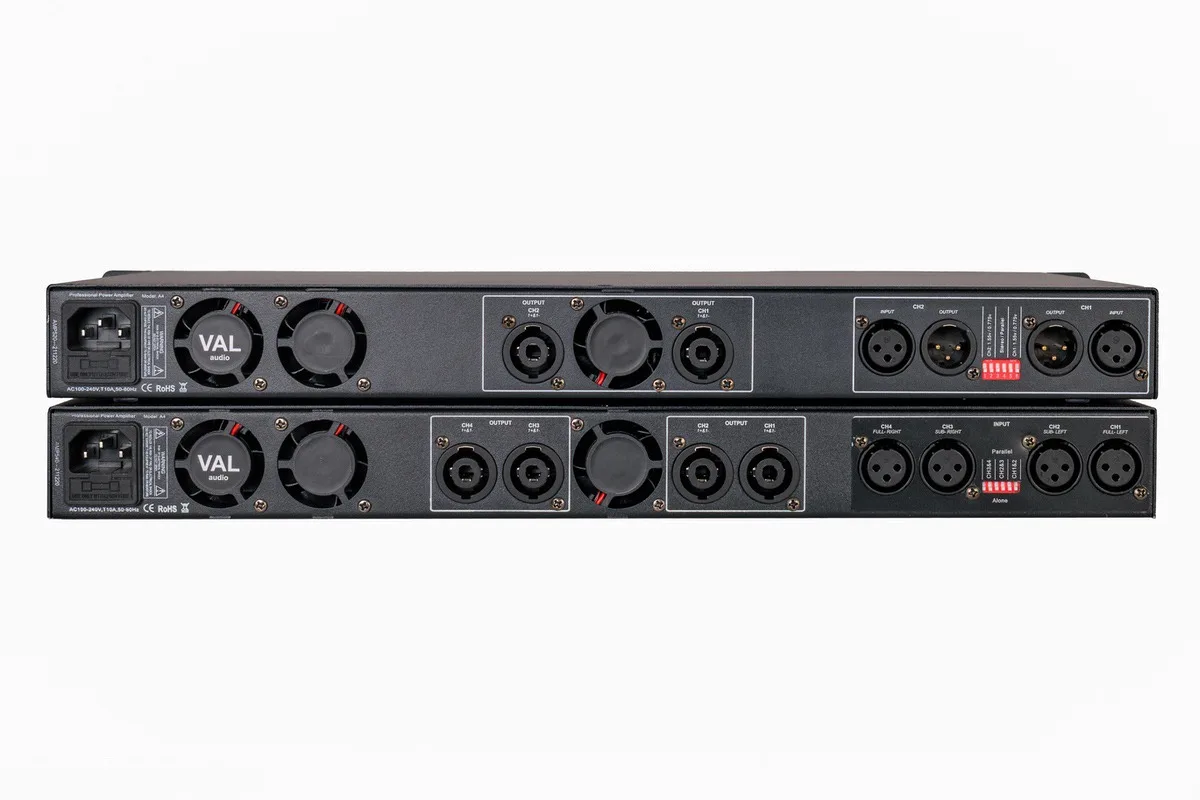

XLR inputs and speakon output connectors

Attribute

Value

MODEL

V35

8Ω Stereo

2 x 1850W

4Ω Stereo

2 x 3500W

2Ω Stereo

Output Voltage (Vp)

180V

Output Current (IP)

60A

Input Sensitivity

1.55V / 0.775V

Limit Impedance (DCR min)

3.2Ω

Total Harmonic Distortion (8Ω / 100W / 100Hz)

<0.03%

Frequency Response (8Ω / 100W / +-0.5dB)

10Hz – 22kHz

Signal to Noise Ratio (8Ω / 100Hz / A – Weighting)

105dB

Damping Factor (8Ω / 300W / 100Hz)

>1000

Controlled Slew Ratio (8Ω / 300W / 100Hz)

>100V/us

Electric Energy Efficiency (8Ω / 300W / 100Hz)

>85%

Idle Power (230V)

20W

Power Factor (1000W / 230V / 50Hz)

>0.85

Frequency Modulation

350kHz

Net Weight (Kg)

3.6

Size (mm)

482 x 225 x 45
