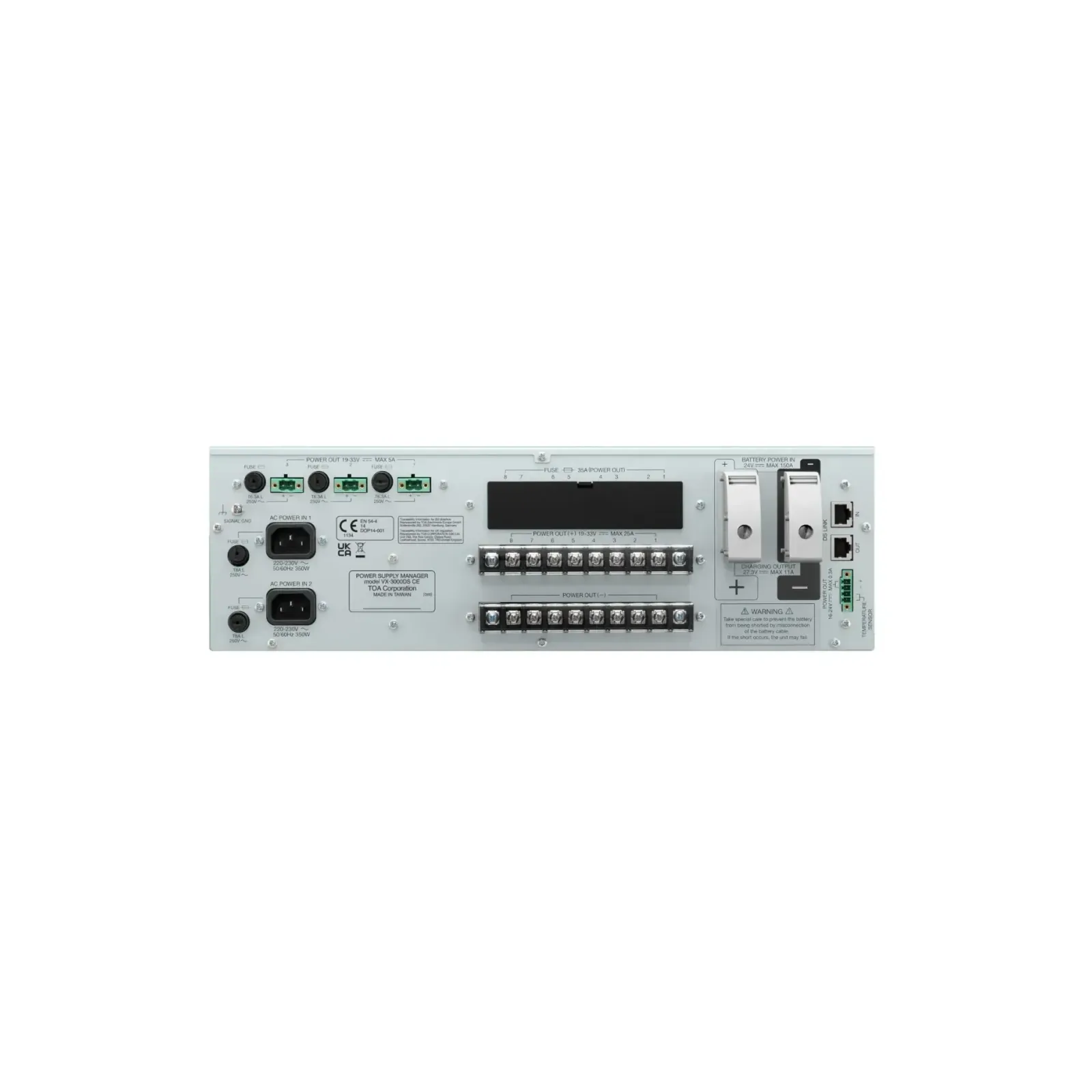

| Model | VX-3000DS |
|---|
| Power Source | 220 - 230 V AC, 50/60 Hz |
|---|
| Power Consumption | 2800 W max. in total (at rated output with charging) 650 W max. in total, 350 W max. each (EN62368-1) |
|---|
| DC Power Output (AC mode) | Rated output: 2300 W (total DC power output) Peak output: 2780 W (total DC power output) |
|---|
| DC Power Output | 8 x 31 V (19 – 33 V) 25 A max. each, M4 screw terminal, distance between barriers: 11 mm 3 x 31 V (19 – 33 V) 5 A max. each, removable terminal block (3 x 2 pins) 1 x 24 V (16 – 25 V) 0.3 A max., removable terminal block (1 x 2 pins) |
|---|
| Current Specification | Maximum output current from the battery : 50 A Rated maximum continuous output current, I max. a : 50 A Rated maximum short duration output current, I max. b : 50 A Rated minimum output current, I min.: 0 A Ripple Voltage at I max. b: 4 V max. |
|---|
| Compatible Battery | Yuasa: NPL65-12I (65 Ah), NPL100-12 (100 Ah), NPL130-6IFR (130 Ah), NPL200-6 (200 Ah) |
|---|
| Charging Method | Temperature compensated trickle charging |
|---|
| Charging Output Voltage | 27.3 V ± 0.3 V (at 25 °C (77 °F) Temperature correction coefficient: -40 mV/°C |
|---|
| Control Connector, DS LINK IN/OUT | RJ45 female connector for connecting the system and cascade connection Shielded twisted-pair straight cable (TIA/EIA-568A standard) Type of control signal: Battery check, AC power status, DC Power status, charging circuit failure, battery failure, and communication |
|---|
| Battery Connection | 1 pair of positive and negative terminals Applicable cable diameter: AWG 6 − AWG 0 (AWG 1/0) (16 mm² – 50 mm²) Line resistance within: 4 mΩ/total |
|---|
| Indicator | AC Power IN 1, IN 2 (Green), Charging (Green), Battery power (Green), Battery connect (Green), Battery condition (Green) |
|---|
|
