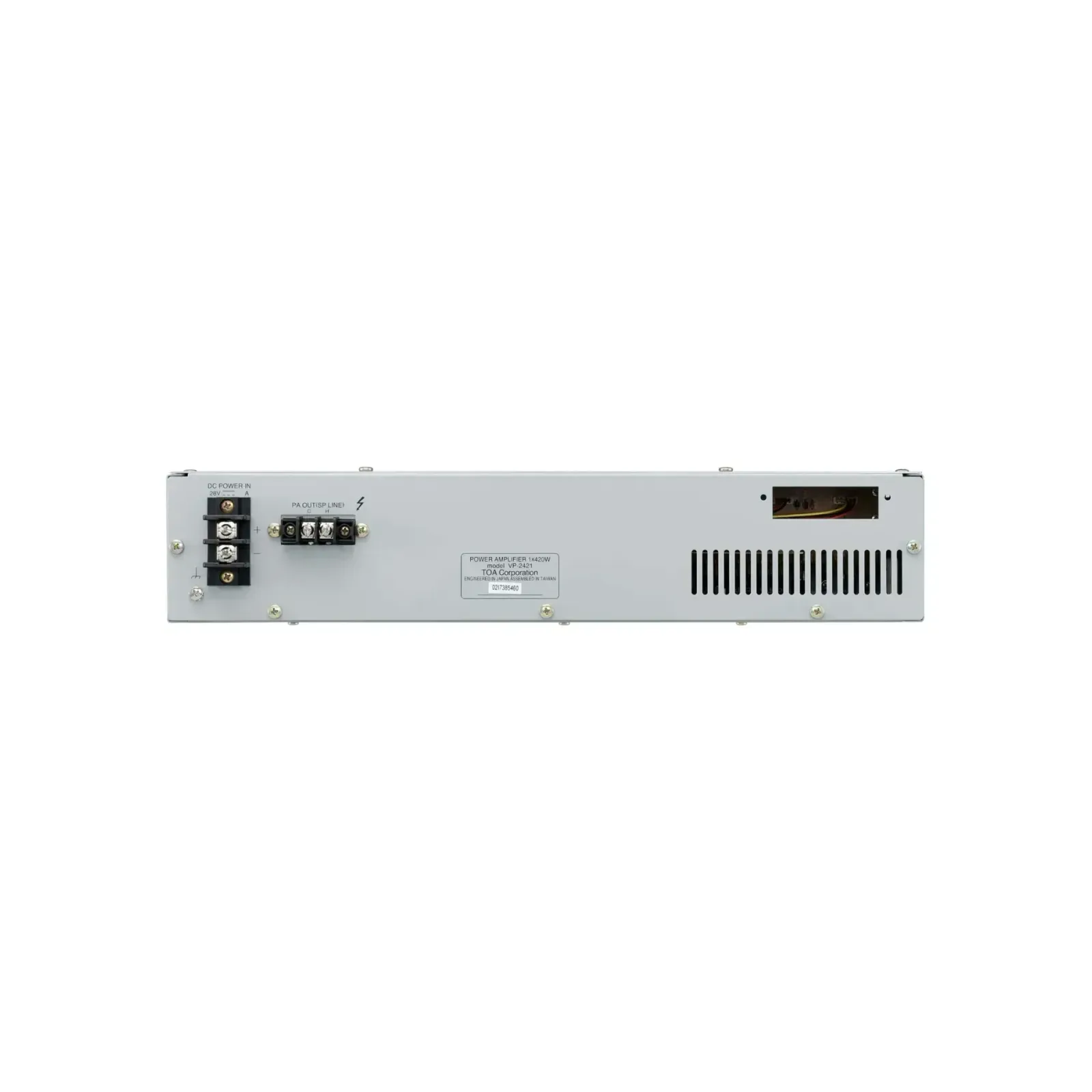

View larger image of TOA VP-2421 — official product photo
21 attributes
| Attribute | Value |
|---|---|
| Model | VP-2421 |
| Power Source | 28 V DC (operating range: 20 - 40 V DC) M4 screw terminal, distance between barriers: 12 mm |
| Current Consumption | 0.03 A (standby mode), 0/60 A (no audio input), 7.6 A (1/8 rated output, EN60065), 29 A (rated output) |
| Rated Output | 420 W (at min. resistive and max. capacitive load) |
| Output Power (at AC Mains: 195.5 V) | 320 W (at min. resistive and max. capacitive load) |
| Output Voltage | 100 V (70 V, 50 V: selectable by internal wiring change) |
| Minimum Impedance Load | 24 Ω (at 100 V), 12 Ω (at 70 V), 6 Ω (at 50 V) |
| Maximum Capacitive Load | 0.5 μF (at 100 V), 1 μF (at 70 V), 1 μF (at 50 V) |
| Number of Channels | 1 |
| Input | Specified by input module VP-200VX |
| Number of Module Slots | 1, usable module: VP-200VX |
| Output | Power amplifier output (speaker line): M3.5 screw terminal, distance between barriers: 8.8 mm |
| Frequency Response | 40 Hz – 16 kHz, ±3 dB (at 1/3 rated output) |
| Distortion | 1% or less (at rated output, 1 kHz) |
| Signal to Noise Ratio | 80 dB or more |
| Indicator | Channel power indicator: 1 channels, dual color LED Overheat indicator: Yellow LED |
| Operating Temperature | 0 °C to 40 °C |
| Finish | Panel: Surface-treated steel plate, black (30% glossy), paint |
| Dimensions | 482 (W) x 88.4 (H) x 340.5 (D) mm |
| Weight | 9.5 kg |
|---|
| Optional Accessories | Rack mounting screw x 4, Fiber washer x 4 |
|---|
