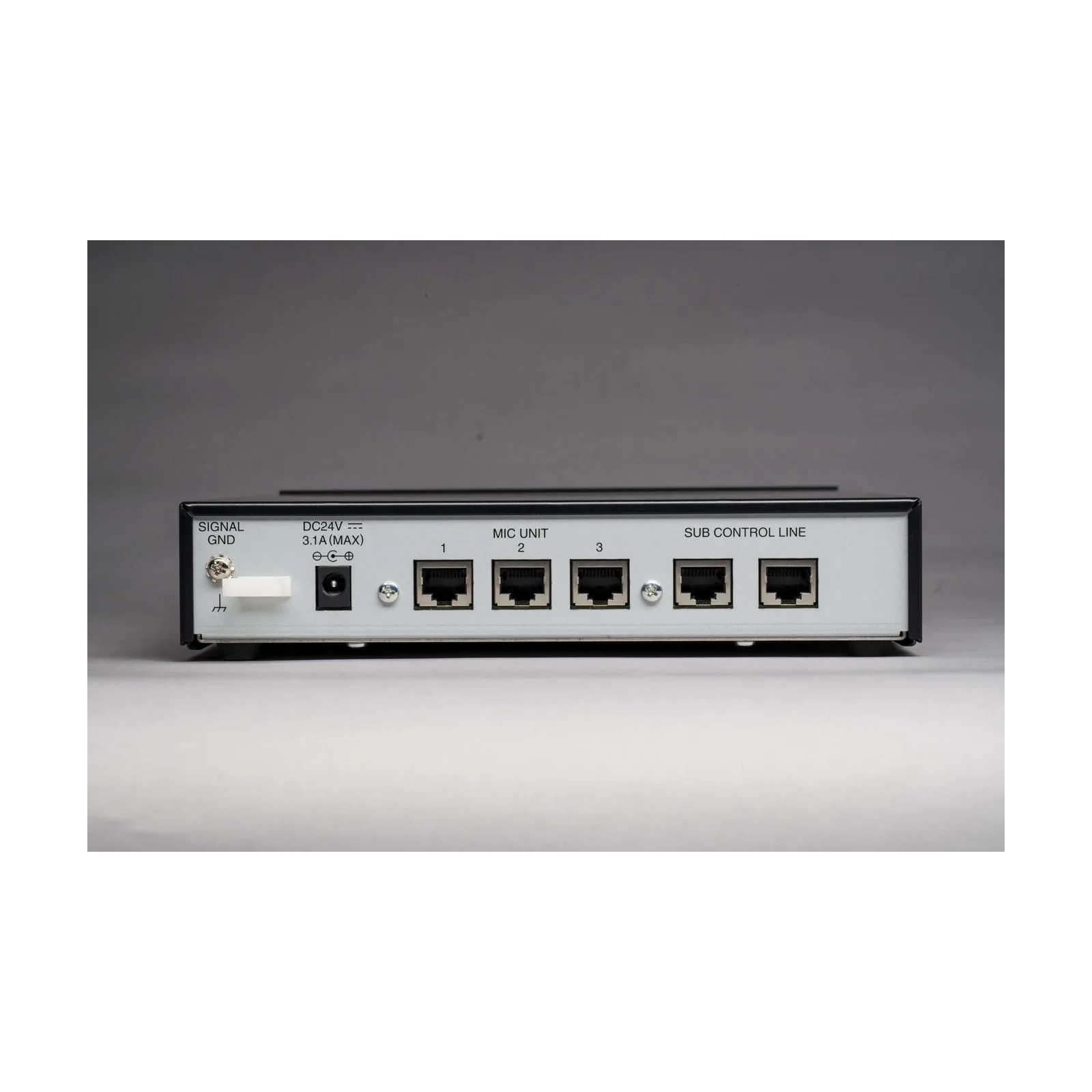

View larger image of TOA TS-D1000-SU — official product photo
14 attributes
| Attribute | Value |
|---|---|
| Model | TS-D1000-SU |
| Power Source | 100 - 240 V AC, 50/60 Hz (use of the supplied AC adapter) |
| Power Consumption | 80 W or less |
| LED Indicator | Power indicator |
| Number of Connectable Conference Units | 48 units |
| Maximum Cable Length | 50 m (164.04 ft) (between Sub control unit and terminal Chairman/Delegate unit at end of daisy chain) (*1) |
| Master/Sub Control Units Terminal | RJ45 connector x2 |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Panel: Aluminum, black, 30 % gloss, paint Case: Surface-treated steel plate, black, 30 % gloss, paint |
| Dimensions | 210 (W) x 45.8 (H) x 294.8 (D) mm (8.27 x 1.8" x 11.61") |
| Weight | 1.6 kg (3.53 lb) |
| Included Accessories | AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft) detachable AC cord) …1, Connection cable (Cat5e STP, 1 m (3.28 ft) …1 |
| Optional Accessories | Rack mounting bracket: MB-15B-BK (for rack mounting one TS-D1000-SU unit), MB-15B-J (for rack mounting two TS-D1000-SU units) |
