Features

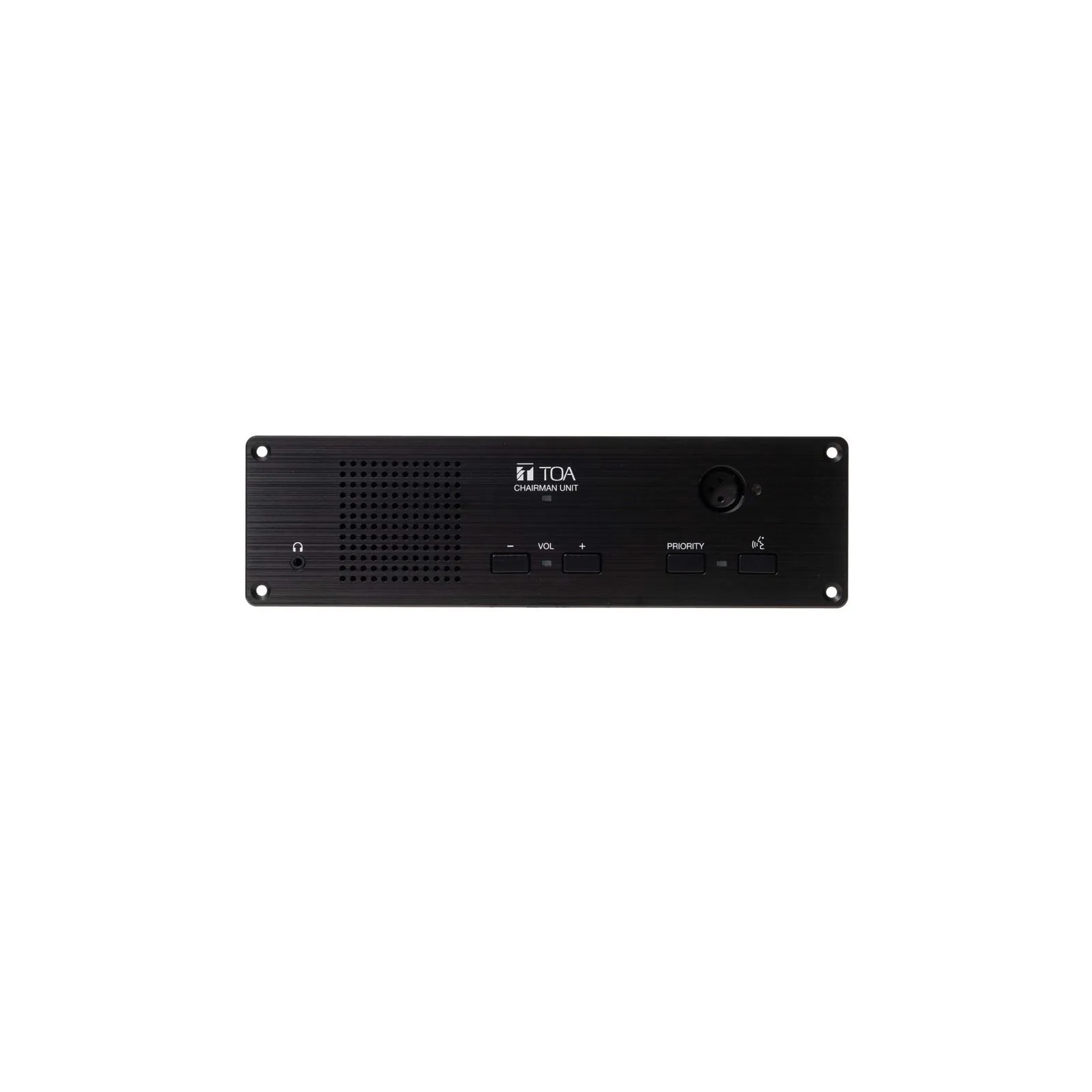

The Digital conference system's dedicated TS-D1000-CF Chairman unit can be used by simply connecting it to the TS-D1000-MU or TS-D1100-MU Master control unit using CAT5e STP LAN cables.

It can also be optionally equipped with either the TS-D1000-M1 Standard microphone or the TS-D1000-M2 long microphone or the TS-D1000-M1S Short microphone.

It's the Flush-mount device, ideal for use in permanent installations, creating indicidual participant positions.

Attribute

Value

Model

TS-D1000-CF

Power Source

24 V DC (supplied from the TS-D1000-MU Master Control Unit (option), TS-D1100-MU Master Control Unit (option), TS-D1000-SU Sub Control Unit (option), or TS-D1000-EX Externsion Unit (option)

Power Consumption

1.5 W or less

Signal to Noise Ratio

65 dB or more (A-weighted)

Input

Microphone terminal: XLR-3-31 type, hidden latch lock for removable microphone

Output

Monitor speaker: 8Ω, 0.4 W Earphone: Ø3.5 mm mini jack (3P:monaural)

Speaker Output

75 dB SPL

Connection Terminal

RJ45 connector x2
