Features

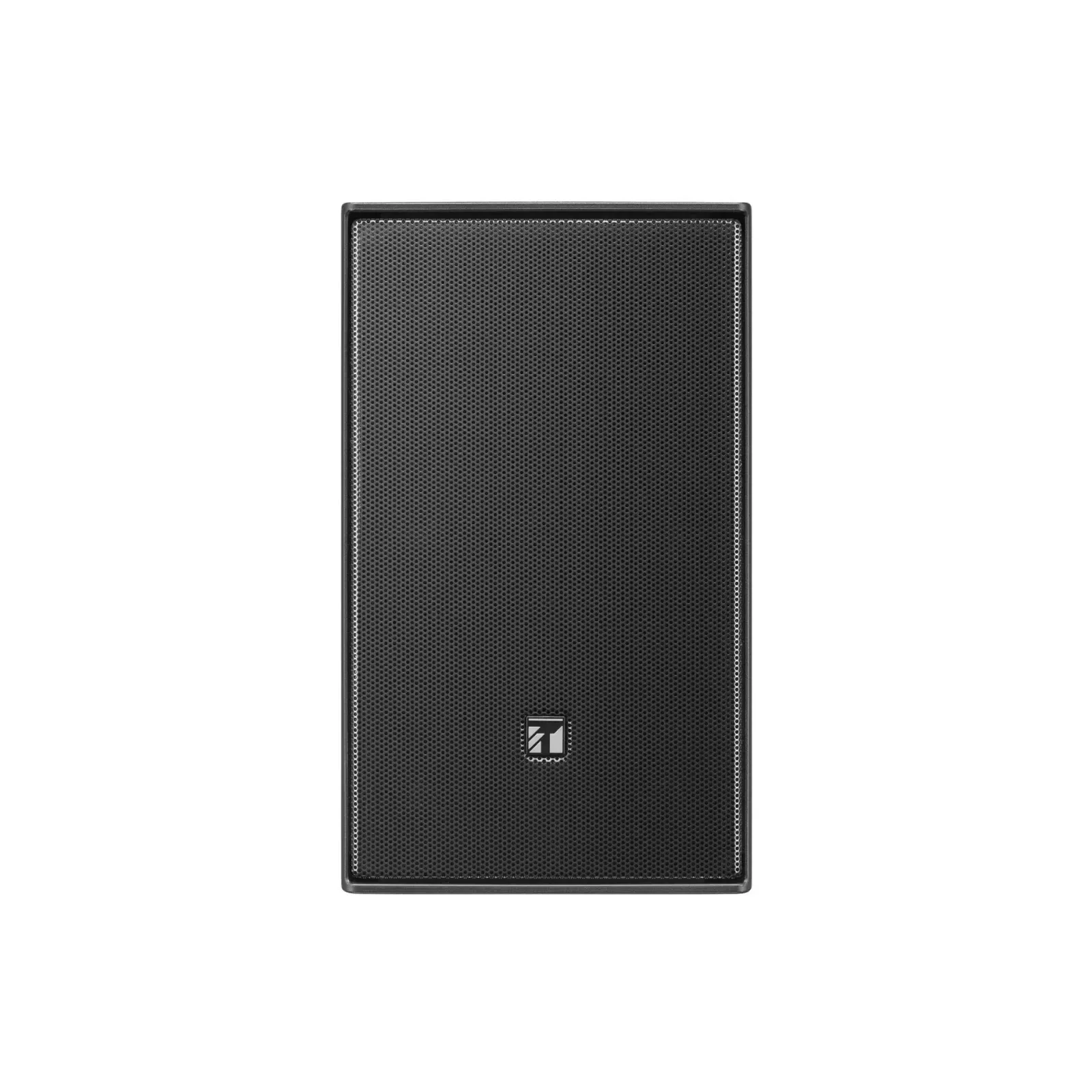

Versatile 5-inch 2-way surface-mount speaker system

Perfect for music and announcements

Sleek design for seamless integration with walls and ceilings

Safe and easy installations with included mounting bracket

Temporary docking feature allows effortless wiring and positioning

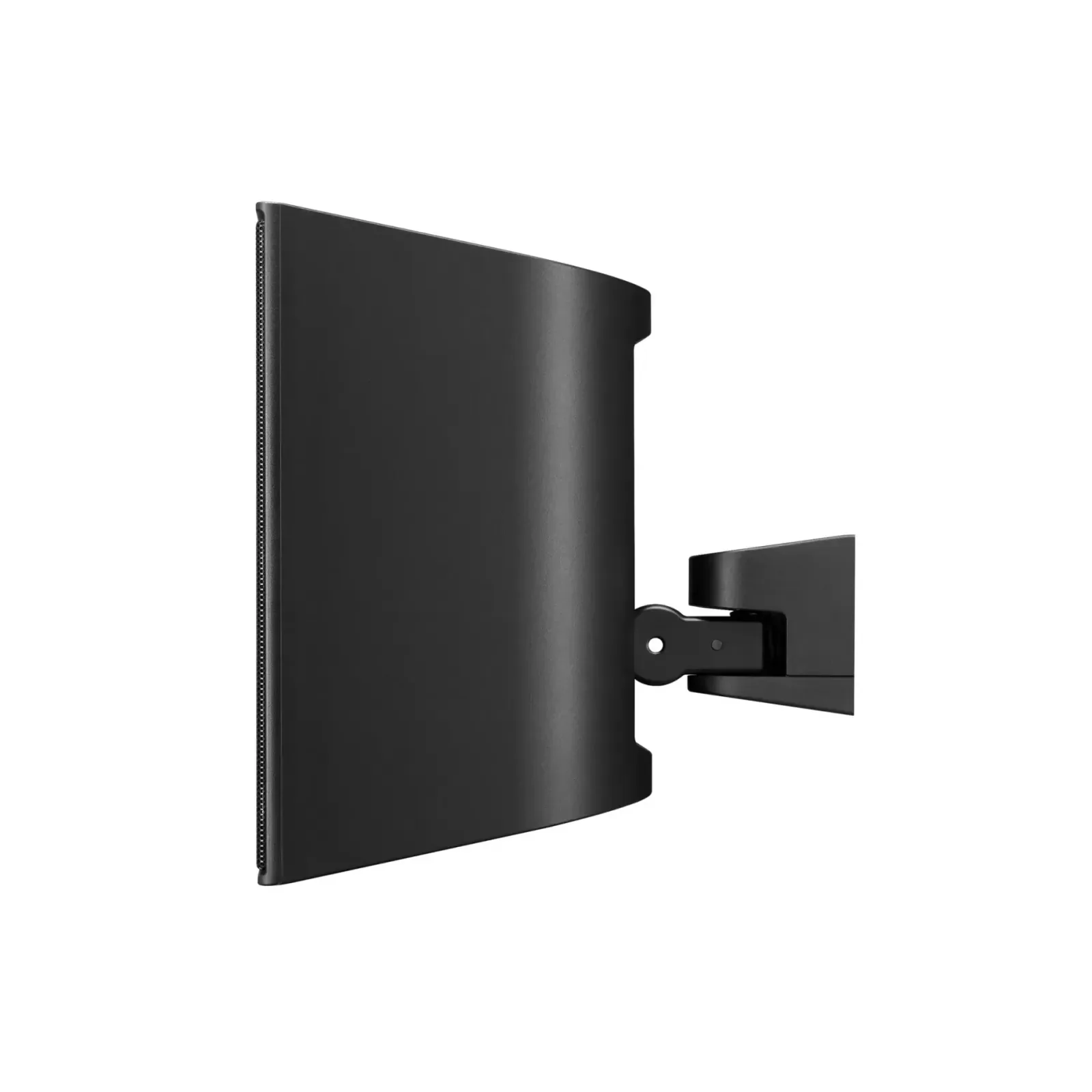

Flexible angle adjustment for both wall and ceiling mounts

Ideal for permanent installs or portable setups

Attribute

Value

Model

F-05BT

Enclosure

Bass-reflex type

Rated Input

30 W (100 V line, 70 V line)

Power Handling

Rated noise power: 60 W (8 Ω) Continuous program: 120 W (8 Ω)

Rated Impedance

8 Ω 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)

Sensitivity

90 dB (1 W, 1 m) at installation in 1/2 free sound field

Frequency Response

60 Hz - 20 kHz, –10 dB at installation in 1/2 free sound field

Crossover Frequency

4.5 kHz

Directivity Angle

Horizontal: 100°, Vertical: 100°

Speaker Component

Low frequency: 13 cm (5") PP cone-type High frequency: 25 mm (1") dome tweeter

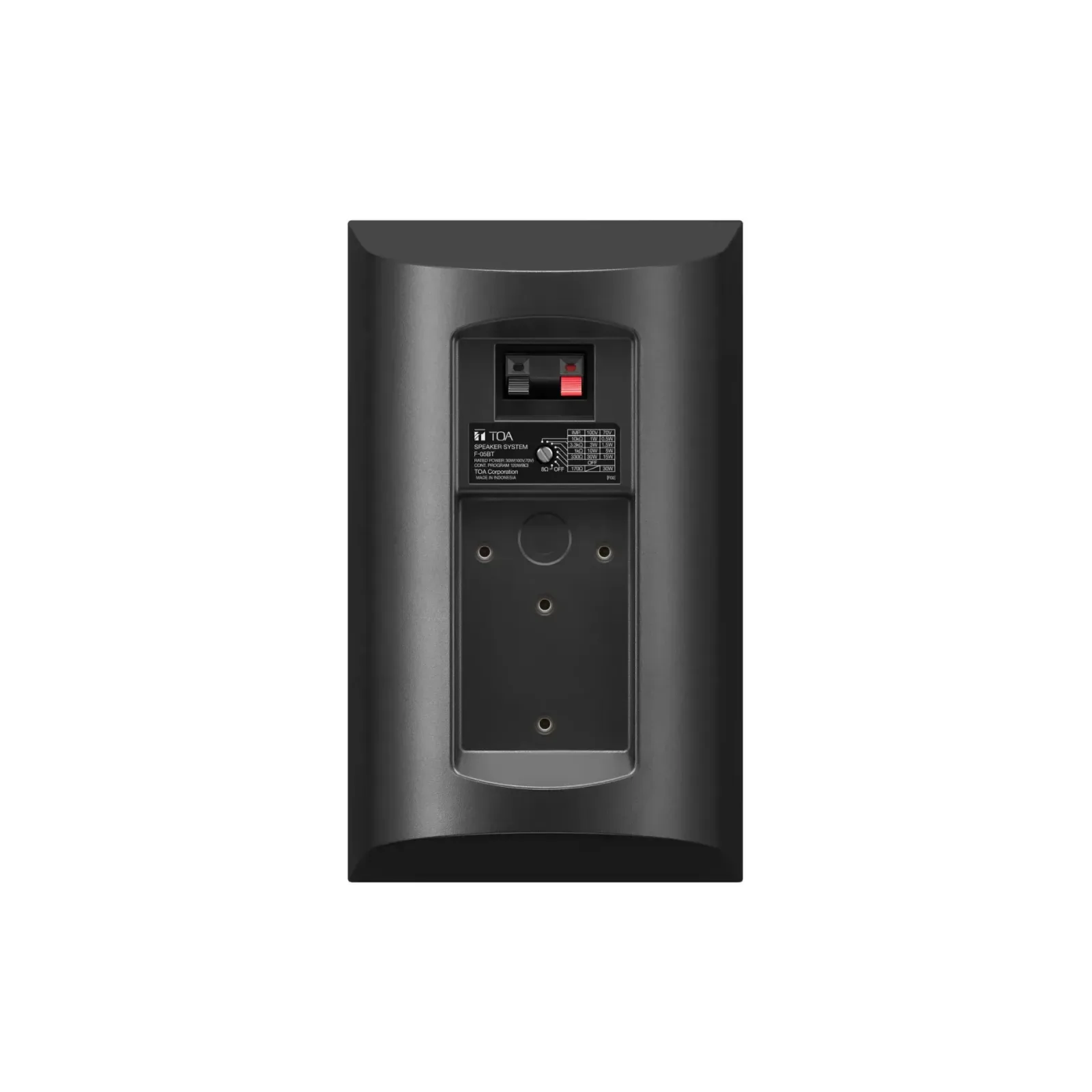

Input Terminal

Push-in Terminal

Installation Environment

Indoor installation

Operating Temperature

-10 °C to +50 °C (14 °F to 122 °F)

Finish

Enclosure: HIPS, black (RAL 9011 equivalent), paint Grille: Aluminum, black (RAL 9011 equivalent), paint Speaker bracket: Die-cast aluminum, black (RAL 9011 equivalent), paint Base bracket: Steel plate, t4, black (RAL 9011 equivalent), paint Base bracket cover: HIPS, black (RAL 9011 equivalent)

Dimensions

162 (W) x 274 (H) x 164 (D) mm (6.38" x 10.79" x 6.46")

Weight

2.7 kg (5.95 lb)

Included Accessories

Speaker bracket x 1, Base bracket x 1, Base bracket cover x 1, Bracket fixing screw x 1 set

Optional Accessories
