View larger image of Newline TT-8623S — front with UI
52 attributes
| Attribute | Value |
|---|---|
| Model | TT-8623S |
| Active Screen Size | 86" |
| Screen Type | LCD (Direct LED Backlight) |

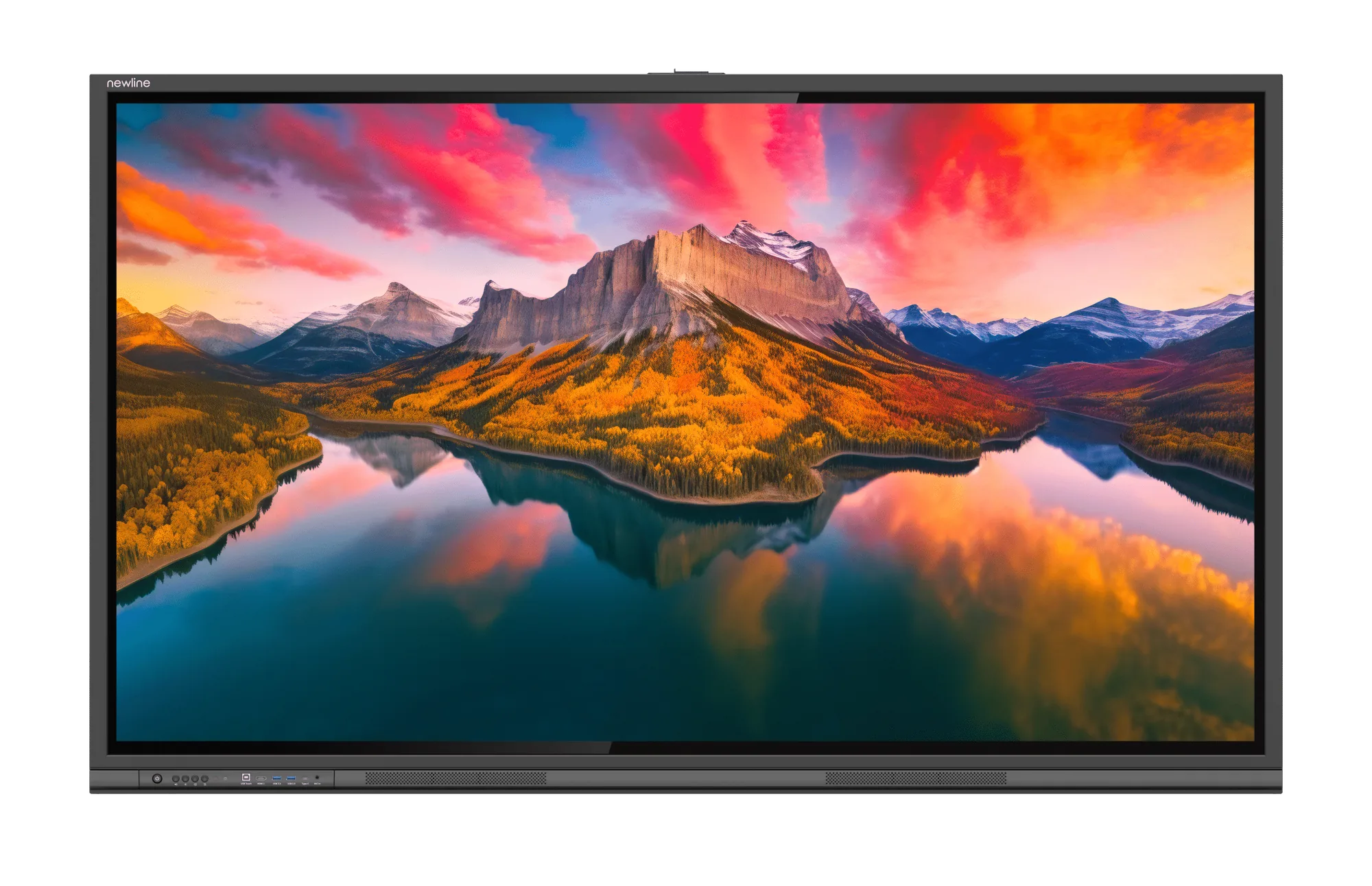

| Resolution | 3840 × 2160 (4K) |
| Display Area | 1895 × 1066 mm |
| Display Ratio | 16:9 |
| Display Color Depth | 1.07 Billion |
| Brightness | 400 cd/m² |
| Contrast Ratio | Typ. 4000:1 |
| Response Time | 8ms |
| Viewing Angle | 178° |
| LCD Refresh Rate | 60Hz |
| Life Time | ≥ 50,000 hours |

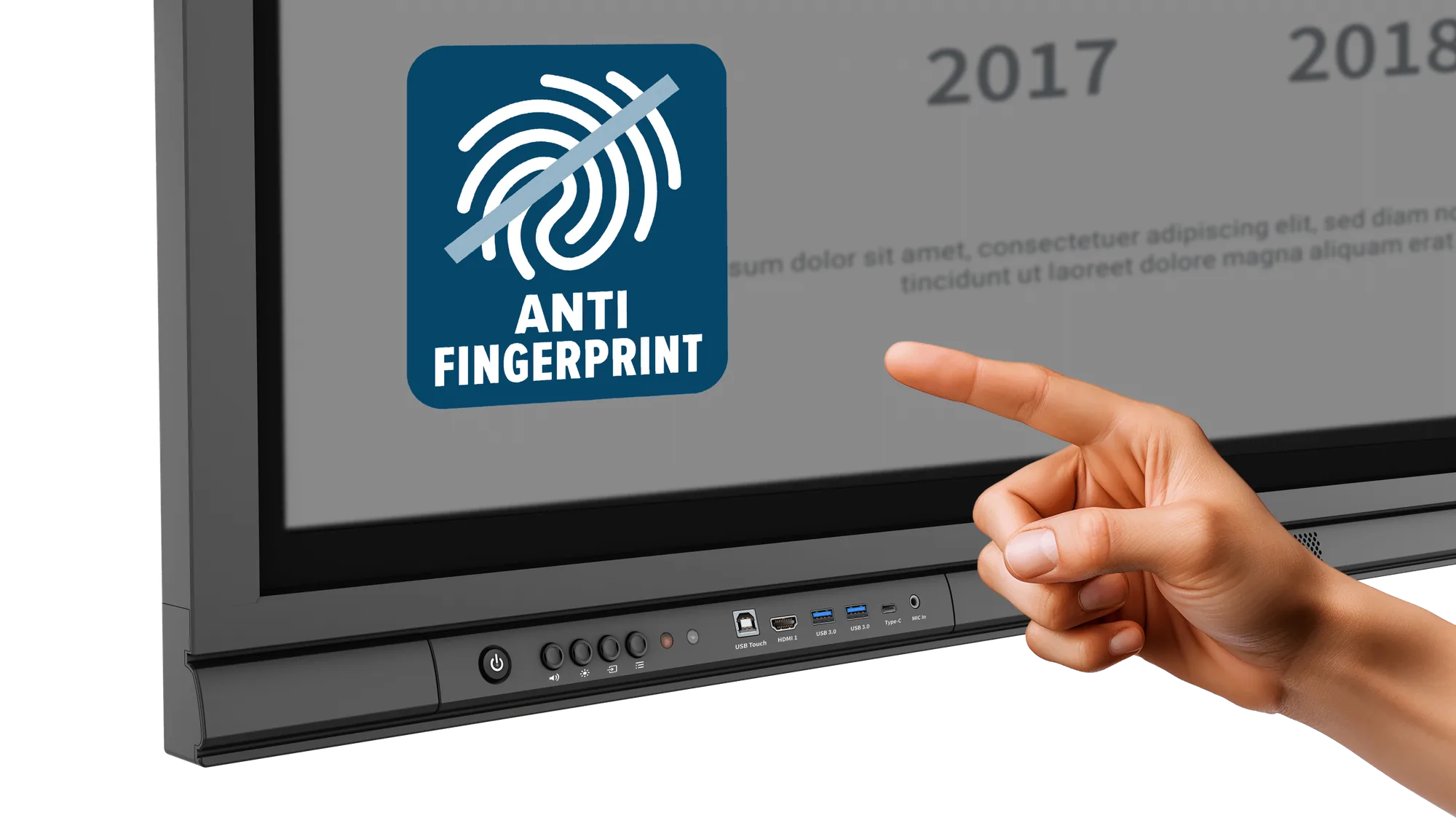

| Touch Surface Technology | Anti-Glare + Anti-Fingerprint |
| Glass Thickness | 3.2 mm |
| Transparency | 88% ± 3 |
| Surface Hardness | 9H (Pencil) |
| Touch Sensor | Infrared (IR) |
| Touch Points | Android 20 Points, Windows 40 Points |
| Touch Screen Writing Tools | Stylus or Finger |
| Bonding | Zero Bonding |
| USB Data Ports | 1× USB Type-C; 2× Type-B (Touch); 3× USB 3.0 Type-A Public + 1× USB 2.0 Type-A Android |
| Digital Audio-Video Inputs | 3× HDMI 2.0 + 1× VGA + 1× VGA-Audio + 1× DP; 1× Microphone In |
| Digital Audio-Video Outputs |
| 1× HDMI Out + 1× Audio Line Out + 1× S/PDIF Out |
| Integrated PC Slot | Available (OPS) |
|---|
| Control Input | 1× RS-232 |
|---|
| Network | 1× IN & 1× OUT RJ-45 |
|---|
| CPU | Arm Cortex-A55 × 8 |
|---|
| GPU | Quad-core Mali-G52 |
|---|
| RAM | 8GB |
|---|
| ROM | 64GB |
|---|
| External Memory | microSD Slot available |
|---|
| Operating System | Android 14 |
|---|
| Wi-Fi | Dual Channel 2.4G+5G, Wi-Fi 6 |
|---|
| Bluetooth | BT5.2 |
|---|
| Wake-on-LAN | Support |
|---|
| Working Voltage | AC100-240V Max. 6.5A |
|---|
| Max Power Consumption | 650W |
|---|
| Standby Power Consumption | < 0.5W |
|---|
| Speaker Position | Bottom Front |
|---|
| Speaker Rated Impedance | 6Ω |
|---|
| Speaker Frequency Response | 250Hz - 20KHz when SPL is -10dB |
|---|
| Speaker Output S.P.L. | 80±3dB |
|---|
| Speaker Max Power Output | 20W × 2 |
|---|
| Storage Temperature / Humidity | -20~60°C / 0~90%RH (non-condensing) |
|---|
| Working Temperature / Humidity | 0℃ - 40℃ / 20% - 80% RH (Non-Condensing) |
|---|
| Mounting | Wall-Mounted / Mobile Stand (optional) |
|---|
| Outline Dimensions | 1981 × 1186 × 111 mm |
|---|
| Packing Dimensions | 2119 × 228 × 1290 mm |
|---|
| Net Weight | 63 kg |
|---|
| Gross Weight | 79.5 kg |
|---|
| Optional Components | 8 mics array microphone, 4K AI camera, NFC, 1×15W subwoofer |
|---|
