Bose Sub2 Powered Subwoofers

A powered, portable bass module, the Sub2 subwoofer combines with virtually any portable PA and delivers low-end performance down to 37 Hz.

A powered, portable bass module, the Sub2 subwoofer combines with virtually any portable PA and delivers low-end performance down to 37 Hz. Its unique 10 × 18-inch high-excursion neodymium RaceTrack driver allows for an ultra-slim enclosure, delivering performance that rivals traditional round drivers without the cumbersome size, freeing up room in your vehicle and on the stage. Compared to the Sub1 subwoofer, Sub2 is the more powerful subwoofer option for the Bose L1 Pro32 system, combining seamlessly via single-cable SubMatch connectivity. You can stack multiple Sub2 subwoofers for even more low end — or to unleash Cardioid Mode for directional bass. With a Sub2, you get a subwoofer that easily fits onstage — and effortlessly fills up the dance floor.

Features

Add powerful bass to your portable PA system with low-end range down to 37 Hz

Go from vehicle to venue easily with a slim design featuring a unique 10 × 18-inch high-excursion neodymium RaceTrack driver; performance that rivals traditional round drivers with a smaller footprint

Stack multiple Sub2 subwoofers for even more bass or unleash Cardioid Mode for focused, directional performance that steers the bass out front and decreases feedback

Combine seamlessly with Bose L1 Pro32 portable line array via proprietary SubMatch connectivity, which delivers both power and audio over a single cable

Pair with other powered loudspeakers via line input and output with selectable crossover modes, plus integrated threaded pole mount for use with Bose S1 Pro PA and more

Attribute

Value

Brand

Bose Professional

Series

L1 Pro

Model

Sub2

Number of Channels

Power Class

Class D

Input Channels

Connectors

(1) XLR-1/4-in TRS combo, (1) SubMatch (proprietary multi-pin cable)

Sensitivity Options

+10 dB to +45 dB, input to driver

Phantom Power

AC Power Connector

IEC, SubMatch

AC Power Input

100–240 VAC (±20%, 50/60 Hz)

Current Draw, Inrush

15.2 A at 120 VAC, 60 Hz / 28.6 A at 230 VAC, 50 Hz

Software Applications

Bose Music (Android, iOS)

Computer Interface Connection

USB Type-C

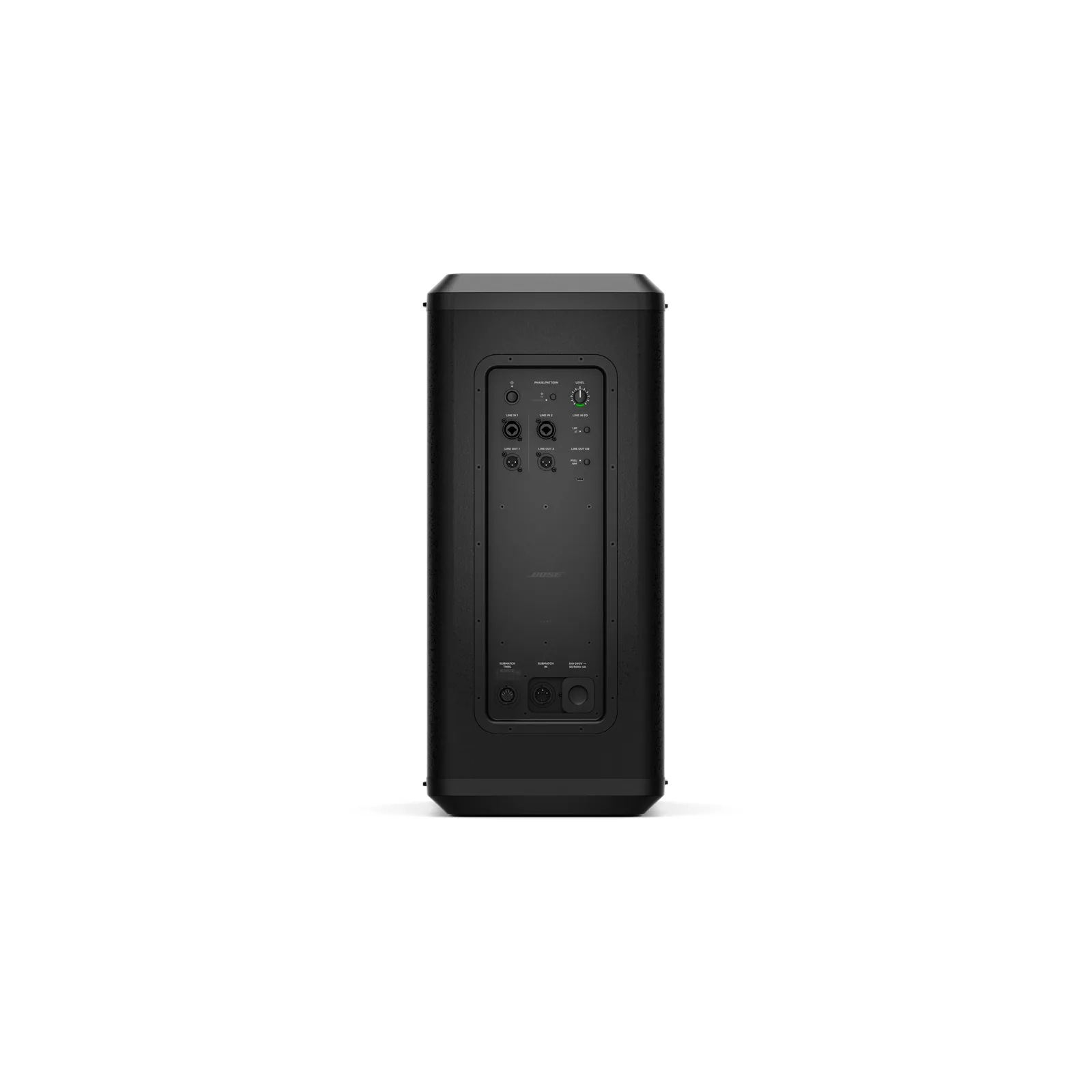

Controls, Rear Panel

Power, EQ, and Volume Control

LED Status Indicators

(1) standby LED, (1) signal/clip LED, (2) input EQ LEDs, (2) output EQ LEDs, (3) phase/pattern LEDs

DSP-Enabled

Yes

Processing Functions

Input EQ, output EQ, phase/pattern polarity inversion

Colors

Black

Enclosure Material

High-impact polypropylene, birch plywood

Grille

Perforated steel, powder-coated finish

Cooling System

Convection cooling
