Bose Sub1 Powered Subwoofers

A powered, portable bass module, the Sub1 subwoofer combines with virtually any portable PA and delivers low-end performance down to 40 Hz.

A powered, portable bass module, the Sub1 subwoofer combines with virtually any portable PA and delivers low-end performance down to 40 Hz. Its unique 7 × 13-inch high-excursion RaceTrack driver allows for an ultra-slim enclosure, delivering performance that rivals traditional round drivers without the cumbersome size, freeing up room in your vehicle and on the stage. Compared to the Sub2 subwoofer, Sub1 is the more compact subwoofer option for the Bose L1 Pro32 system, combining seamlessly via single-cable SubMatch connectivity. You can stack multiple Sub1 subwoofers for even more low end — or to unleash Cardioid Mode for directional bass. With a Sub1, you get a subwoofer that goes virtually anywhere and effortlessly fills out your sound.

Features

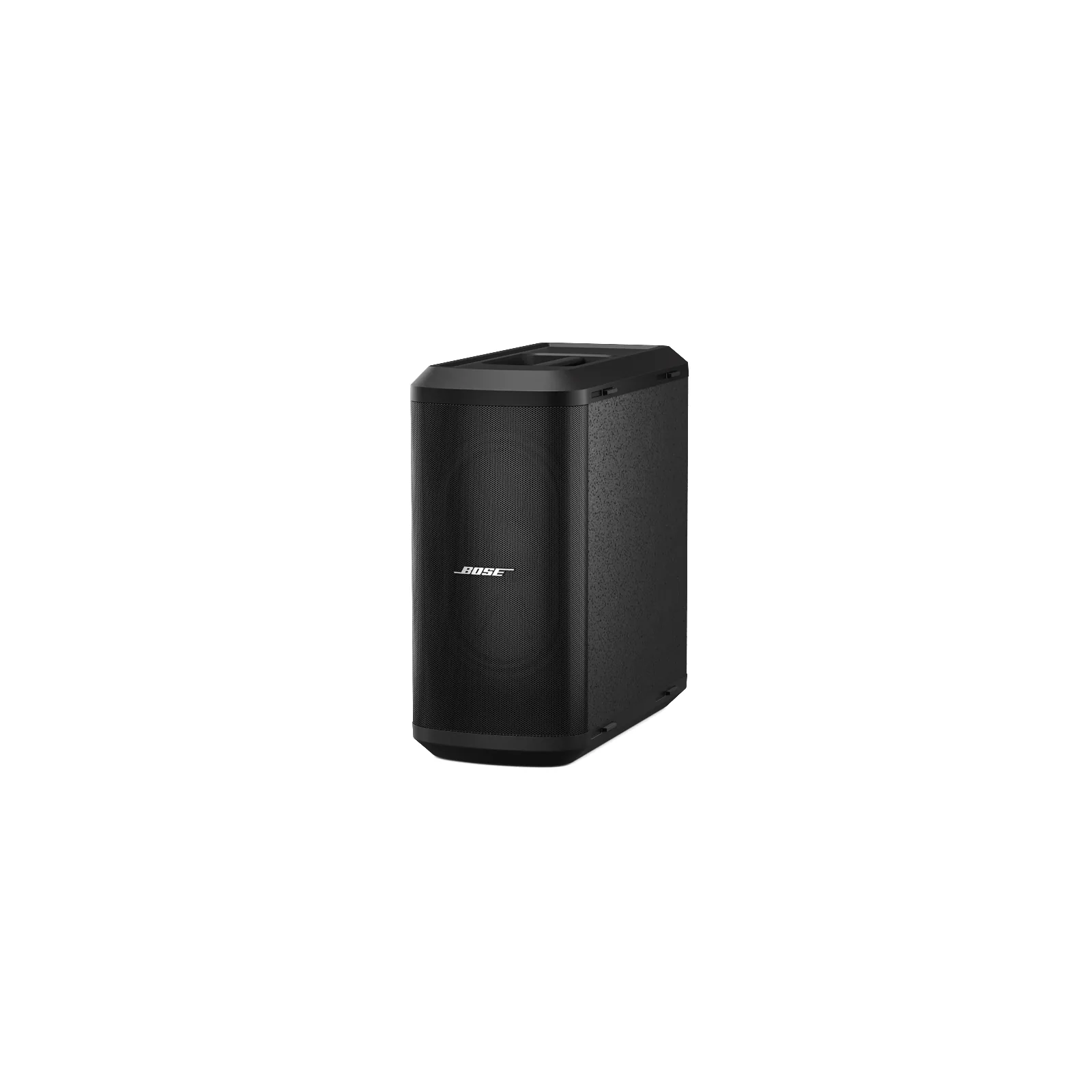

Go from vehicle to venue easily with a slim design featuring a unique 7 × 13-inch high-excursion RaceTrack driver; performance that rivals traditional round drivers with a smaller footprint

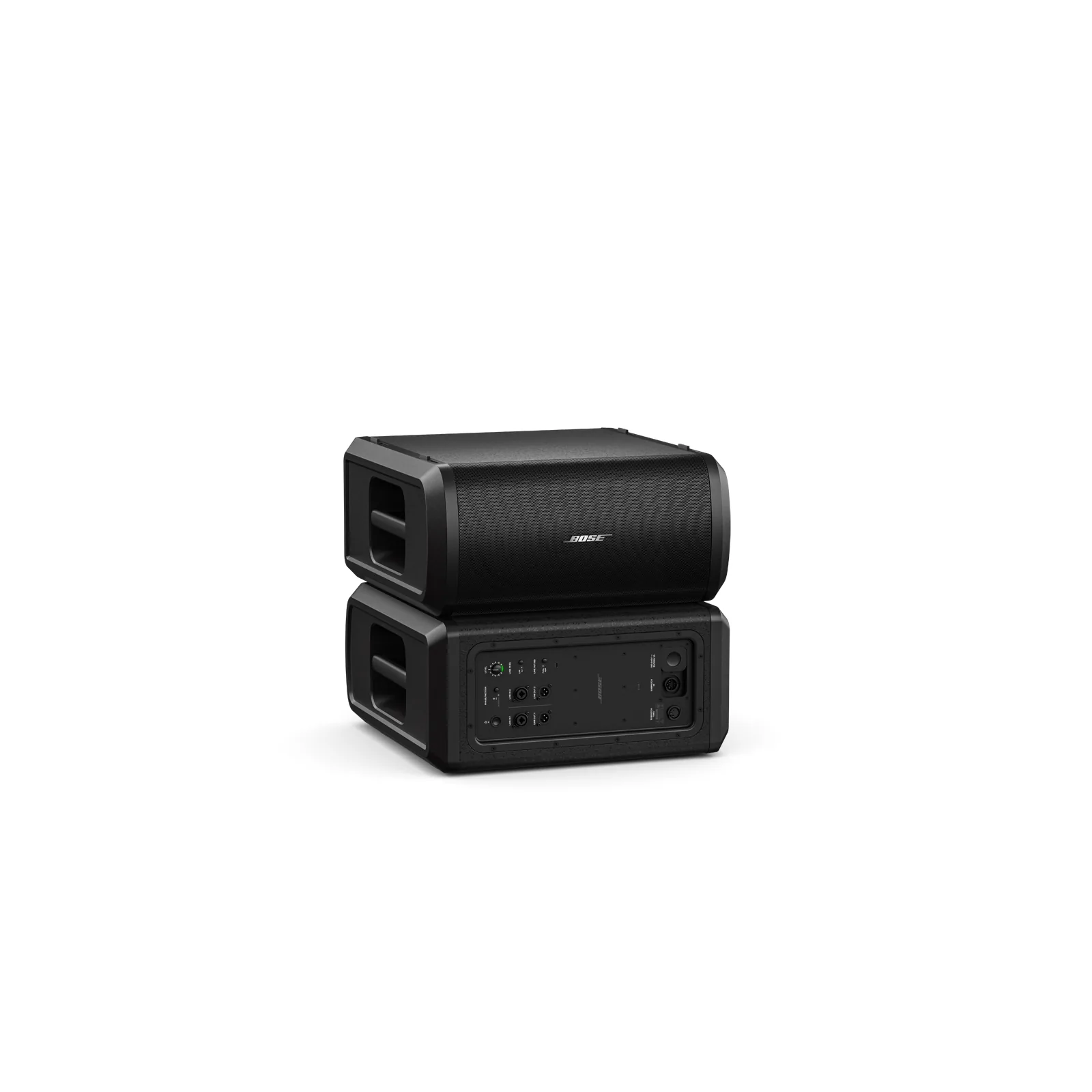

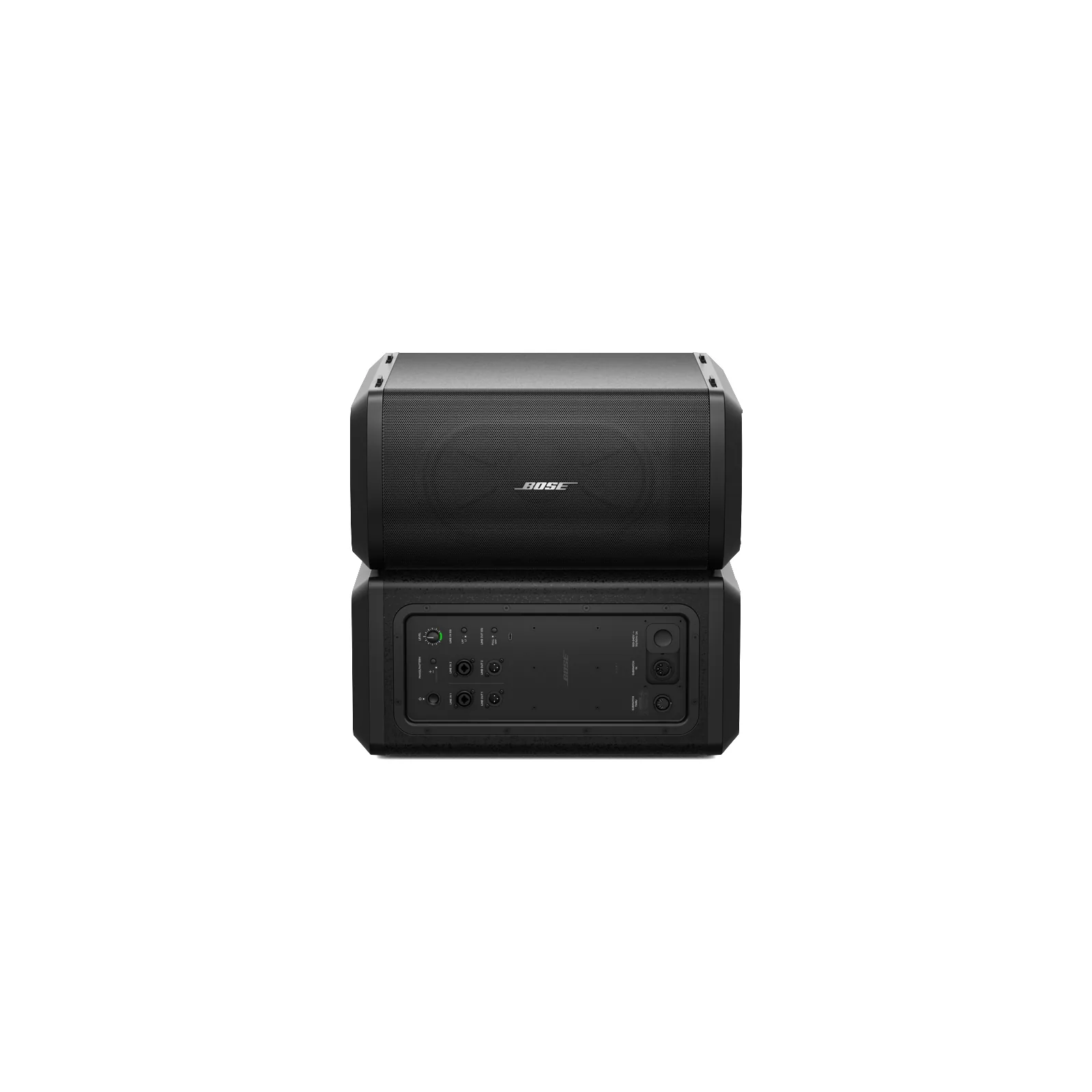

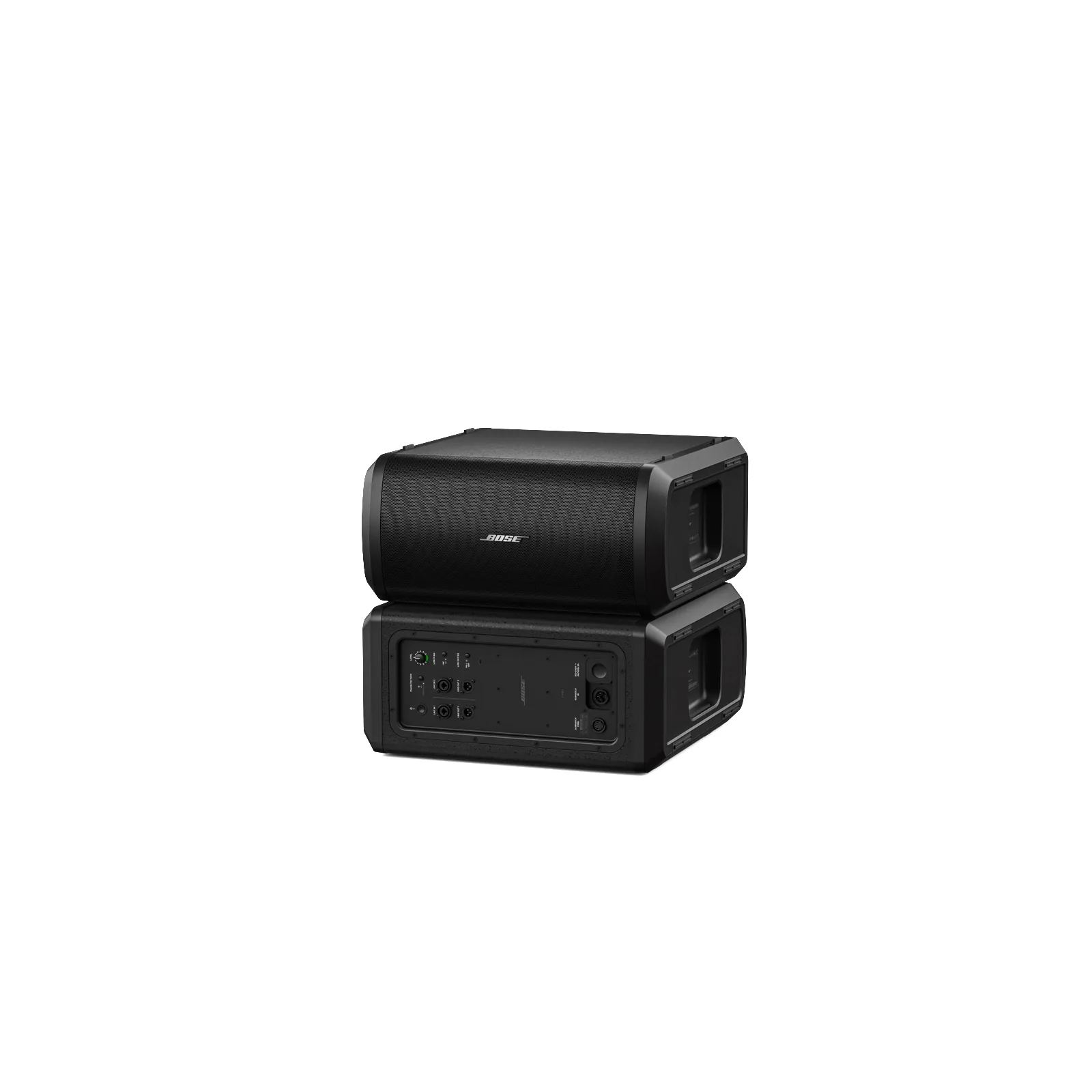

Stack multiple Sub1 subwoofers for even more bass or unleash Cardioid Mode for focused, directional performance that steers the bass out front and decreases feedback

Combine seamlessly with Bose L1 Pro32 portable line array via proprietary SubMatch connectivity, which delivers both power and audio over a single cable

Pair with other powered loudspeakers via line input and output with selectable crossover modes, plus integrated threaded pole mount for use with Bose S1 Pro PA and more

Attribute

Value

Brand

Bose Professional

Series

L1 Pro

Model

Sub1

Number of Channels

Power Class

Class D

Input Channels

Connectors

(1) XLR-1/4-in TRS combo, (1) SubMatch (proprietary multi-pin cable)

Sensitivity Options

+10 dB to +45 dB, input to driver

Phantom Power

Safety

UL/IEC/EN62368-1 Audio/Video, Information and Communication Technology Equipment

AC Power Connector

IEC, SubMatch

AC Power Input

100–240 VAC (±20%, 50/60 Hz)

Current Draw, Inrush

14.9 A at 120 VAC, 60 Hz / 29.3 A at 230 VAC, 50 Hz

Software Applications

Bose Music (Android, iOS)

Computer Interface Connection

USB Type-C

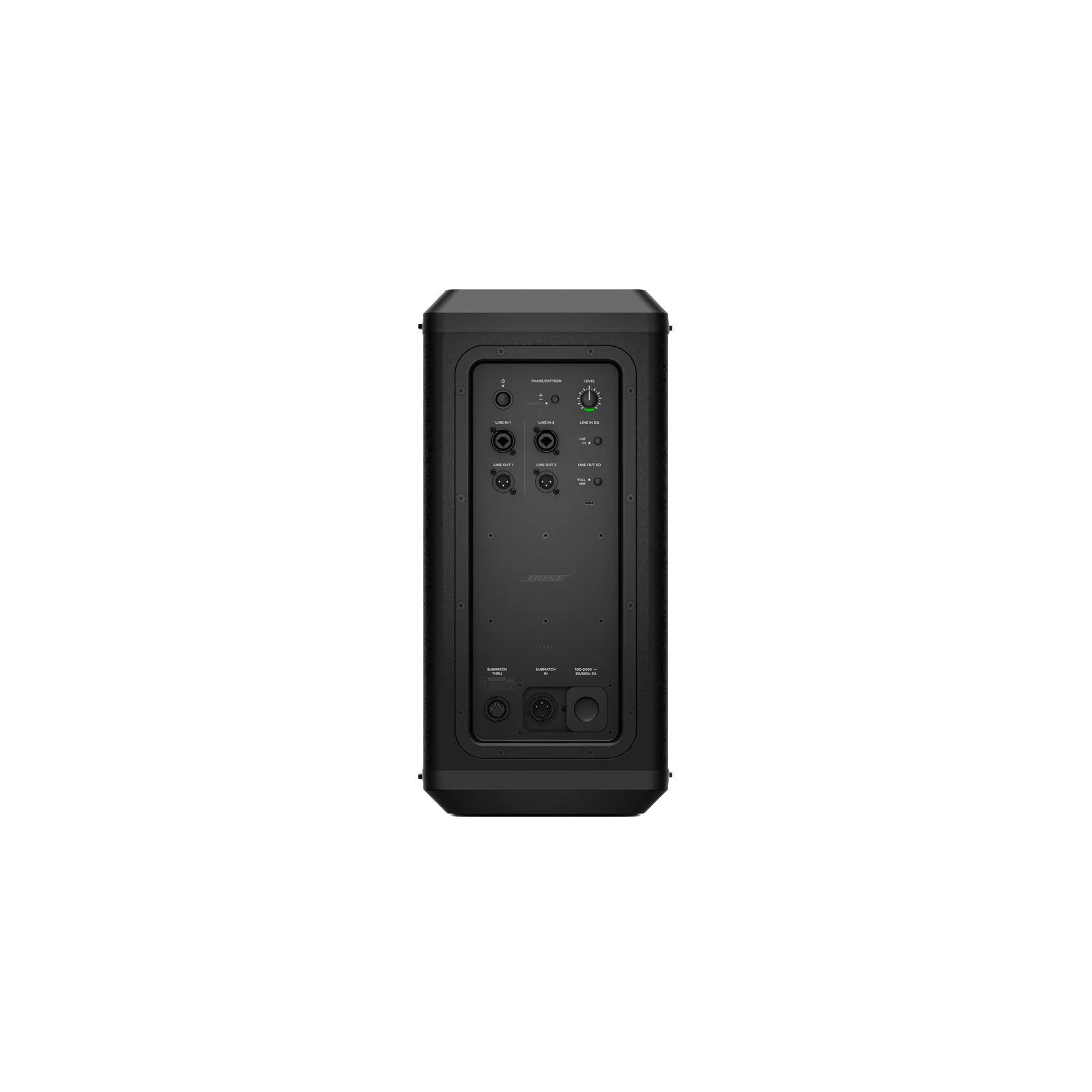

Controls, Rear Panel

Power, EQ, and Volume Control

LED Status Indicators

(1) standby LED, (1) signal/clip LED, (2) input EQ LEDs, (2) output EQ LEDs, (3) phase/pattern LEDs

DSP-Enabled

Yes

Processing Functions

Input EQ, output EQ, phase/pattern polarity inversion

Colors

Black

Enclosure Material

High-impact polypropylene, birch plywood

Grille

Perforated steel, powder-coated finish
