Bose F1 SUBWOOFER Powered Subwoofers

With 1,000 watts of power, the Bose F1 Subwoofer packs all the performance of a larger bass box into a more compact design that’s easier to carry and fits in a car.

Brand: Bose ProfessionalModel: F1 SUBWOOFER

With 1,000 watts of power, the Bose F1 Subwoofer packs all the performance of a larger bass box into a more compact design that’s easier to carry and fits in a car. A mounting stand for the Bose F1 Model 812 Flexible Array Loudspeaker is integrated right into the body of the subwoofer, so you always know where it is, making setup fast and easy. The stand even includes cable channels to neatly hide the wires, giving your system a clean, professional look. And now getting your unit to the venue is easier, too. The F1 Subwoofer features strategically placed handles for easy transport.

Features

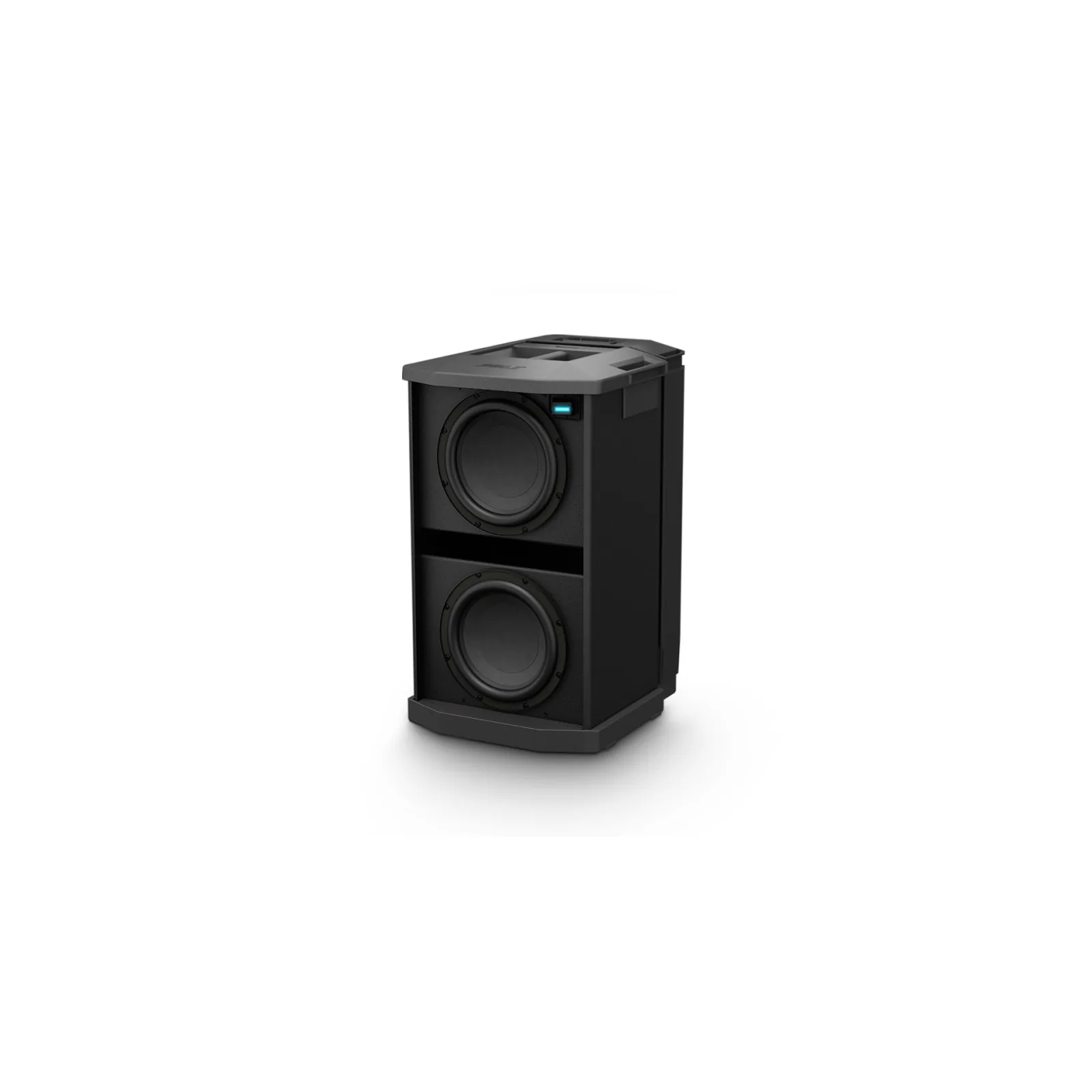

Two high-excursion drivers , each measuring 10 inches, are built into a compact enclosure that is light and easy to transport

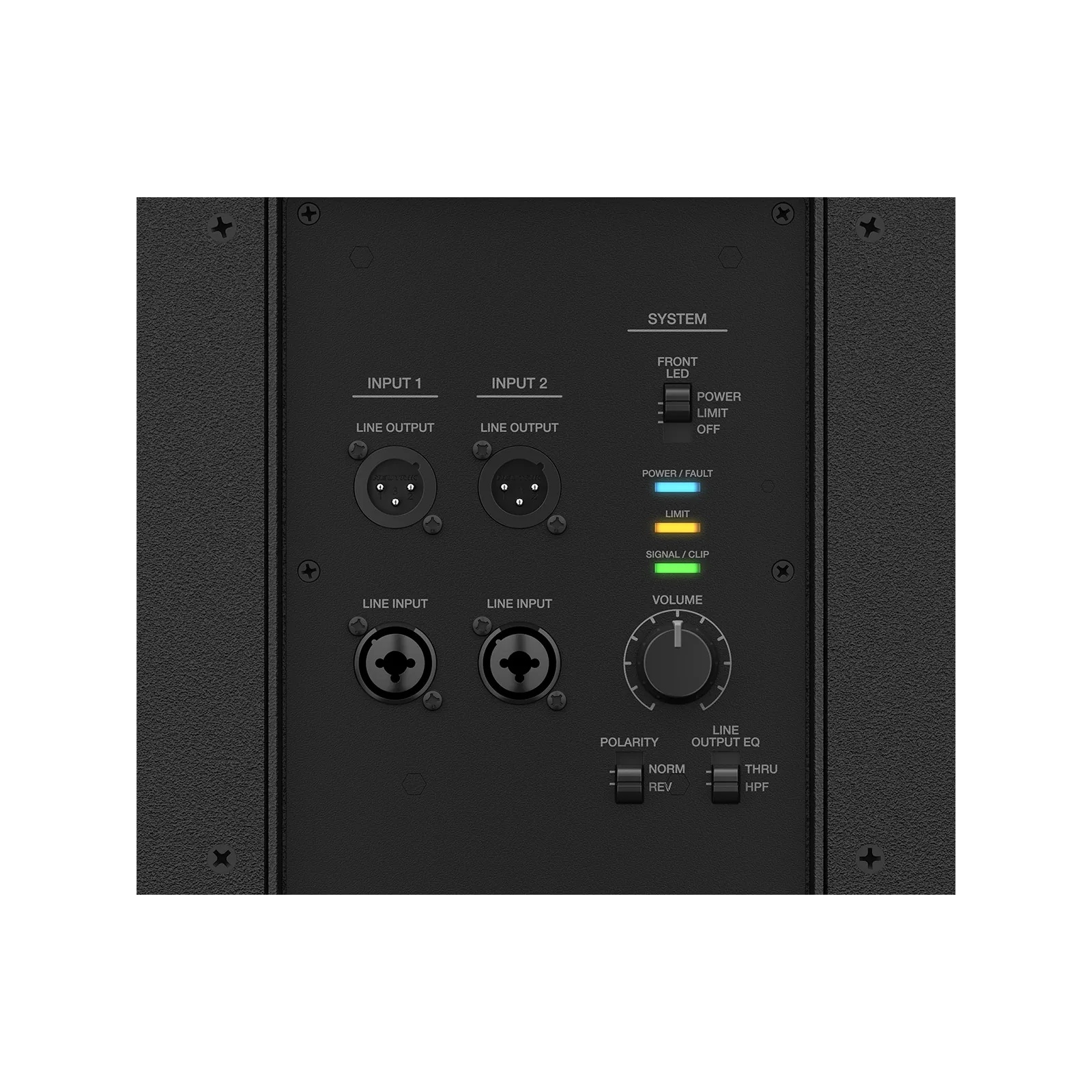

Polarity switch to adjust polarity of subwoofer. Selections are NORM and REV. Reversing polarity allows for easy correction of low-frequency overlap between the main loudspeaker and subwoofer

Line output EQ sets the F1 Subwoofer’s output to a high-pass filter or full range, which allows for easy crossover selection when used with a main loudspeaker

F1 Model 812 extension bracket is a unique bracket integrated into the subwoofer. This bracket can be raised and lowered by the end user, allowing the F1 Model 812 loudspeaker to be safely mounted to the subwoofer. The bracket eliminates the need for a conventional pole mount or tripod stand

Attribute

Value

Brand

Bose Professional

Series

Model

F1 SUBWOOFER

Number of Channels

Power Class

Class D

THD+N

0.1% maximum (30 Hz – 15 kHz)

Input Channels

Connectors

(2) XLR-1/4-in combo

Colors

Black

Frequency Range (-10 dB)

38 Hz – 250 Hz

Coverage, Horizontal

Omnidirectional

Calculated Maximum SPL @ 1 m

130 dB

Power Handling, Peak

1000 W

Coverage, Vertical

Omnidirectional

Crossover

40 Hz – 100 Hz, Butterworth bandpass / 100 Hz, 4th-order Butterworth high-pass filter at line out

Driver Protection

Dynamic limiter

Low-Frequency

2 × 10 in (254 mm) high-excursion drivers

Applications

Live music performances, Bands of all styles, Solo musicians, Mobile DJs, Houses of worship, Schools and universities, Resorts and hospitality venues, Business presentations
