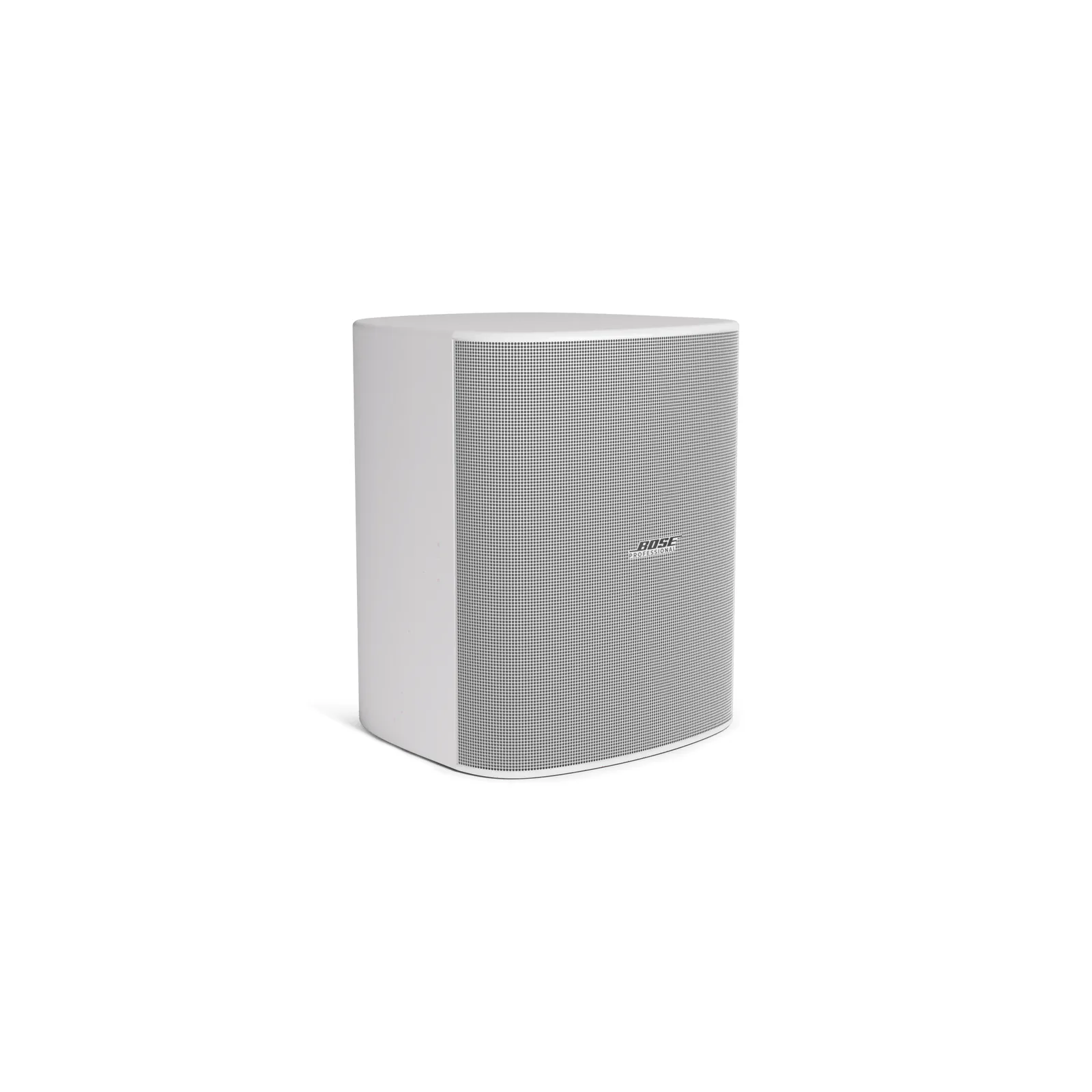

View larger image of Bose DM12SE — official front three-quarter view
26 attributes
| Attribute | Value |
|---|---|
| Brand | Bose Professional |
| Series | DesignMax |
| Model | DM12SE |
| Colors | White grille (similar to RAL 9003), black grille (similar to RAL 9005), paintable |
| Enclosure Material | Engineered plastics, injection-molded, UV fade-resistant |
| Environmental | Outdoors or indoors, IP55 |
| Grille | Perforated aluminum, powder-coated finish, tamper-resistant design, paintable |
| Ingress Protection | IP55 |
| Logo | Rotatable |
| Suspension/Mounting | (12) M8 threaded inserts (2 top, 2 side, 8 rear) |
| Operating Temperature Range | -25 °C to 70 °C (-13 °F to 158 °F) |
| Product Dimensions (H×W×D) | 19.1 in × 16.0 in × 16.0 in (485 mm × 407 mm × 406 mm) |
| Net Weight | 37.4 lb (16.9 kg) |
| Frequency Range (-10 dB) | 38 Hz – 20,000 Hz |
| Coverage, Horizontal | 102° conical |
| Calculated Maximum SPL @ 1 m | 119 dB |
| Nominal Impedance | 8 Ω |
| Power Handling, long-term continuous | 300 W |
| Power Handling, Peak | 1200 W |
| Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available |
| Sensitivity (SPL/1 W at 1 m) |
| 94 dB |
| Coverage, Vertical | 102° conical |
|---|
| Driver Protection | Recommended High-pass Protection 40 Hz with minimum 12-dB/octave filter |
|---|
| High-Frequency | 1 × 1.4 in (36 mm) compression driver, 1.0-in (25 mm) exit, coaxial center-firing, weather-treated |
|---|
| Low-Frequency | 1 × 12 in (305 mm) woofer, weather-treated |
|---|
| Applications | Performance venues, Places of worship, Hospitality spaces, Fitness studios, Retail stores, Nightlife and bar areas, Outdoor patios and courtyards, Theaters and multipurpose rooms |
|---|
