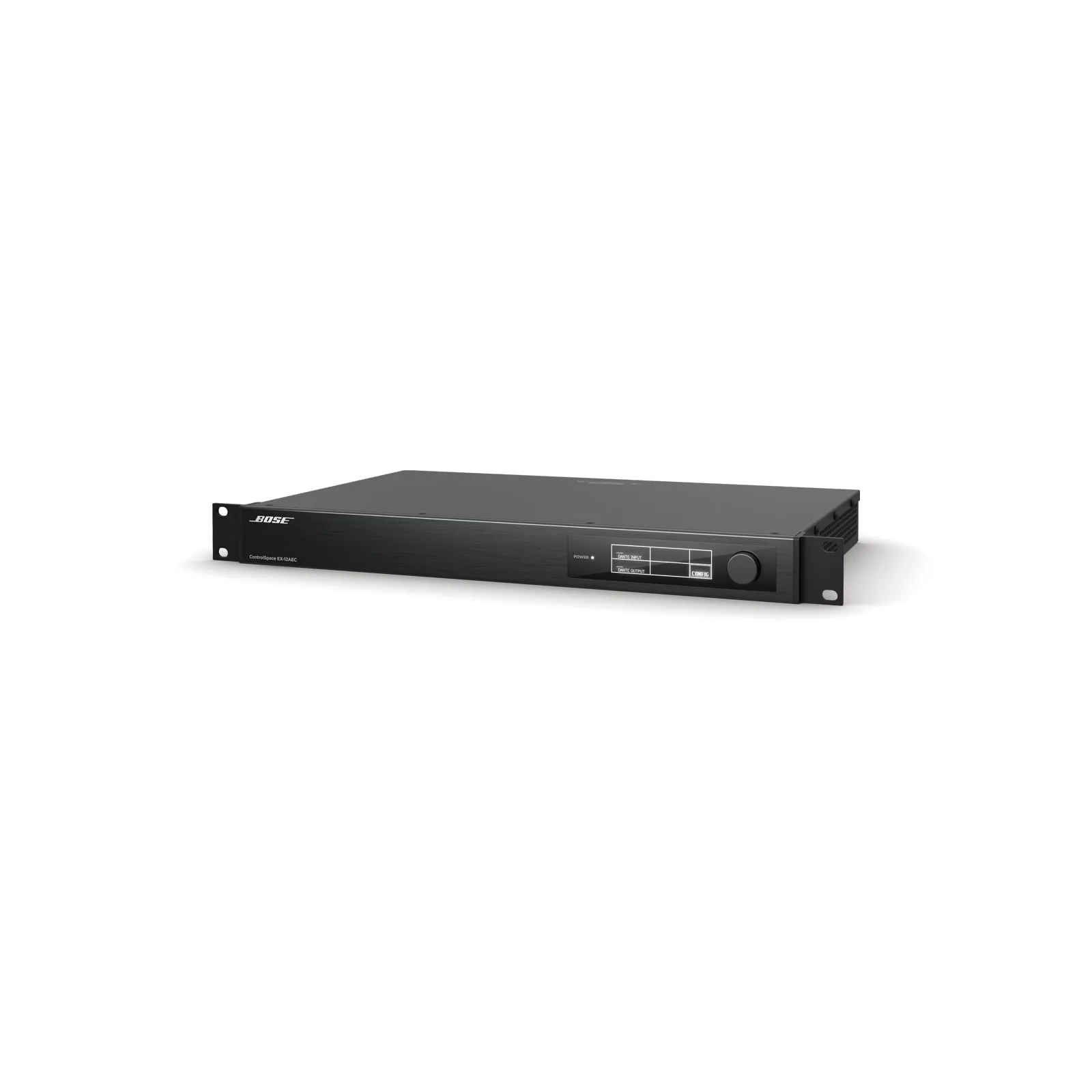

View larger image of Bose EX-12AEC — official product photo
31 attributes
| Attribute | Value |
|---|---|
| Brand | Bose Professional |
| Series | ControlSpace EX |
| Model | EX-12AEC |
| AEC-Enabled | Yes |
| Channels | 12 |
| Latency | 50 ms |
| Noise Reduction | 32 dB |
| References | 4 |
| Tail Length | 480 ms |
| Connectors | (2) RJ-45 Dante in/out / (1) RJ-45 AmpLink out |
| Type | Dante (input/output) |
| Mains Connector | IEC 60320-C14 inlet |
| Mains Voltage | 85–264 VAC, 50/60 Hz |
| AC Power Consumption | 35 W typical at 104 °F (40 °C) ambient |
| Power Dissipation | 60 W (205 BTU/hr, 52 kcal/hr) |
| Software Applications | ControlSpace Designer 5.5 or later (Windows) |
| Computer Interface Connection | RJ-45 (Dante), through network router or switch |
| Display | 256 × 64 OLED |
| LED Status Indicators | (1) power/status LED |
| Delay | 43 s |
| DSP-Enabled | Yes |
| Maximum Calculation | 3.6 GIPS / 2.7 GFLOPS |
| Signal Processor/CPU | 32-bit fixed/floating-point DSP 456 MHz/Arm Cortex-A8 600 MHz processor |
| Colors | Black |
| Cooling System |
|---|
| 2 variable-speed side-venting fans |
| Suspension/Mounting | Standard rack ears |
|---|
| Operating Temperature Range | 0 °C to 40 °C (32 °F to 104 °F) |
|---|
| Product Dimensions (H×W×D) | 1.7 in × 19.0 in × 11.1 in (44 mm × 483 mm × 282 mm) |
|---|
| Net Weight | 5.3 lb (2.4 kg) |
|---|
| Rack Spaces | 1RU |
|---|
| Applications | Boardrooms, Large conference rooms, Distance learning, Multi-purpose spaces, Divisible conference rooms, Operation centers |
|---|
